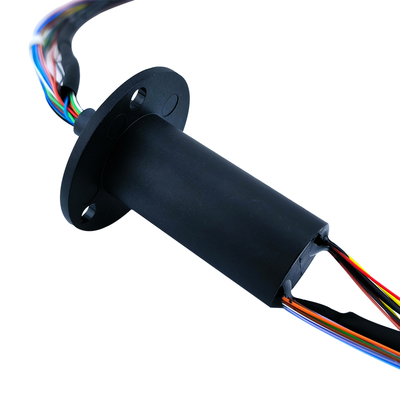

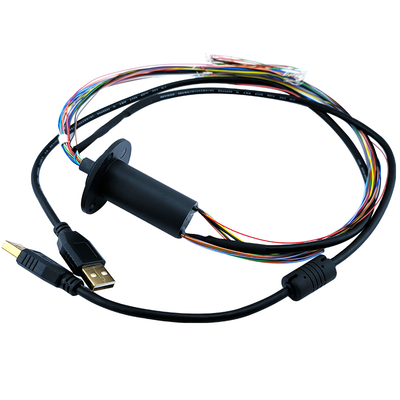

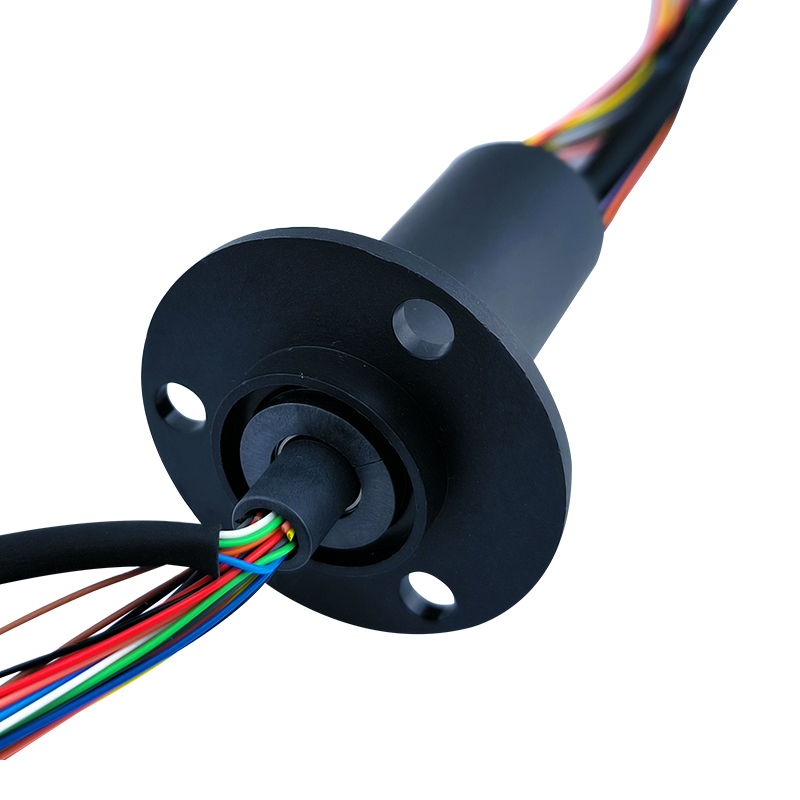

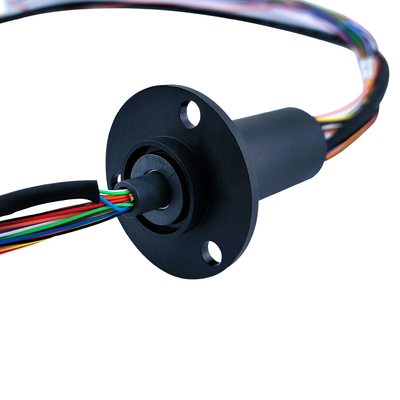

22mm OD Electrical and USB Combination Slip Rings Flange Mount

22mm OD Electrical and USB Combination Slip Rings Flange Mount
22mm OD Electrical and USB Combination Slip Rings Flange Mount
22mm OD Electrical and USB Combination Slip Rings Flange Mount 22mm OD Electrical and USB Combination Slip Rings Flange Mount 22mm OD Electrical and USB Combination Slip Rings Flange Mount 22mm OD Electrical and USB Combination Slip Rings Flange Mount 22mm OD Electrical and USB Combination Slip Rings Flange Mount 22mm OD Electrical and USB Combination Slip Rings Flange Mount

Large Image :  22mm OD Electrical and USB Combination Slip Rings Flange Mount

Product Details:
Place of Origin: China
Brand Name: GUREN
Certification: ISO9001.CE.RoHS
Model Number: WX22-36PS-GRCO161
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: ＄19-199
Packaging Details: Standard/On Request
Delivery Time: 3 weeks ARO
Payment Terms: L/C,D/A,D/P,T/T
Supply Ability: 1K units/week
Contact Now Chat Now

22mm OD Electrical and USB Combination Slip Rings Flange Mount

Description
Outer Diameter: 22mm Length: 54.5mm
Signal Support Types: Analog Video Signal 、USB 2.0 、Ethernet Signal、 Low-speed Digital Signal、 Analog Signal Number Of Circuits: 27-way Electricity
Contact Material: Gold-Gold Service Life: 2 Million Rpm
Highlight:

22mm OD flange mount slip ring

,

USB combination slip ring

,

electrical slip ring with flange

22mm OD Electrical and USB Combination Slip Rings Flange Mount
This USB slip ring features a USB connector and 24 circuits, capable of passing USB signals and 2A current. The injection-molded housing has a 22mm outer diameter with a cap-style design for easy installation. Rated for 150 rpm operation and compatible with 220V applications.
Key Features
  • Combined power and USB transmission:
    • USB 2.0+ compatible signal channel with standard USB port
    • 24 power circuits (2A each) for multiple device support
    • 220V maximum operating voltage for industrial environments
  • Compact and easy installation:
    • 22mm outer diameter for space-constrained applications
    • Injection-molded housing for enhanced sealing and durability
    • Tool-free cap-style mounting for quick integration
  • High performance:
    • 150 rpm operational speed for medium/low-speed rotation
    • Optimized contact design for stable signal transmission
    • Effective shielding against electromagnetic interference
Performance Parameters
Parameter Name Parameter Value
Dielectric strength 100VCA@50Hz,60s
Insulation resistance ≥500MΩ/100VDC
Dynamic resistance change value ＜0.01Ω
Rated voltage 0～220VDC/VAC
Wire Specifications AWG28#Teflon wire
Wire length Rotor 250mm; stator 250mm (reference value)
Operating temperature -30℃～+70℃
Operating humidity 0～85%RH
Protection level IP51
Shell material PBT
Rotational torque 0.05N.m,+0.01N.m/6-way
Service life 2 million rpm
Product Dimensions
22mm OD Electrical and USB Combination Slip Rings Flange Mount 0
Product Images
22mm OD Electrical and USB Combination Slip Rings Flange Mount 1 22mm OD Electrical and USB Combination Slip Rings Flange Mount 2
Applications
Ideal for drones, stabilizers, smart home devices, security monitoring systems, photography/videography equipment, robotics, test instruments, turntables, and automation equipment.
