38mm ID 26-way through hole slip ring, aluminum alloy, IP65 protection

38mm ID 26-way through hole slip ring, aluminum alloy, IP65 protection
38mm ID 26-way through hole slip ring, aluminum alloy, IP65 protection
38mm ID 26-way through hole slip ring, aluminum alloy, IP65 protection 38mm ID 26-way through hole slip ring, aluminum alloy, IP65 protection 38mm ID 26-way through hole slip ring, aluminum alloy, IP65 protection 38mm ID 26-way through hole slip ring, aluminum alloy, IP65 protection 38mm ID 26-way through hole slip ring, aluminum alloy, IP65 protection 38mm ID 26-way through hole slip ring, aluminum alloy, IP65 protection

Large Image :  38mm ID 26-way through hole slip ring, aluminum alloy, IP65 protection

Product Details:
Place of Origin: China
Brand Name: GUREN
Certification: ISO9001.CE.ROHS
Model Number: GK38125FS-26P-E0118
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: ＄19-199
Packaging Details: Standard/On Request
Delivery Time: 3 weeks ARO
Payment Terms: L/C,D/A,D/P,T/T
Supply Ability: 1K units/week
Contact Now Chat Now

38mm ID 26-way through hole slip ring, aluminum alloy, IP65 protection

Description
Outer Diameter: 140mm Inner Diameter: 38mm
Contact Material: Precious Metals Single Channel Current: 1A、16A、20A
Circuit: 26-way Speed: 18rpm
Highlight:

38mm ID through hole slip ring

,

aluminum alloy slip ring IP65

,

26-way through bore slip ring

38mm ID 26-Way Through Hole Slip Ring - Aluminum Alloy with IP65 Protection
This 26-way flange slip ring features 26 independent circuit channels with varying current capacities: 10 channels at 20A, 4 channels at 16A, and 12 channels at 1A. With an inner diameter of 38.1mm and outer diameter of 100mm, it offers IP65 protection, operates at 18 rpm, and supports voltages up to 440V.
Key Features
  • Multi-Channel Configuration: 26 independent circuits (10×20A, 4×16A, 12×1A) for simultaneous power and signal transmission
  • Robust Construction: 38.1mm inner diameter/100mm outer diameter with flange mounting and IP65-rated dust/water protection
  • High-Voltage Operation: Supports up to 440V for medium/high-voltage applications
  • Precision Rotation: 18 rpm rated speed for low-speed, high-precision applications
Performance Parameters
Parameter Value
Dielectric strength 500VCA@50Hz,60s
Insulation resistance ≥500MΩ/500VDC
Dynamic resistance change value ＜0.01Ω
Rated voltage 0～220VDC/VAC
Wire Specifications AWG14#,AWG22# Teflon wire
Wire length Rotor 300mm; stator 300mm (reference value)
Operating temperature -30℃～+80℃
Operating humidity 0～85%RH
Protection level IP65
Shell material Aluminum alloy
Rotational torque 0.05N.m,+0.01N.m/6-way
Service life 2 million rpm
Product Dimensions
38mm ID 26-way through hole slip ring, aluminum alloy, IP65 protection 0

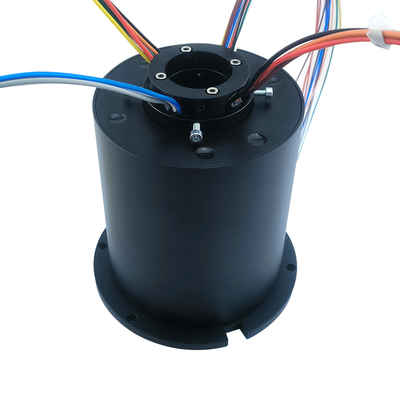

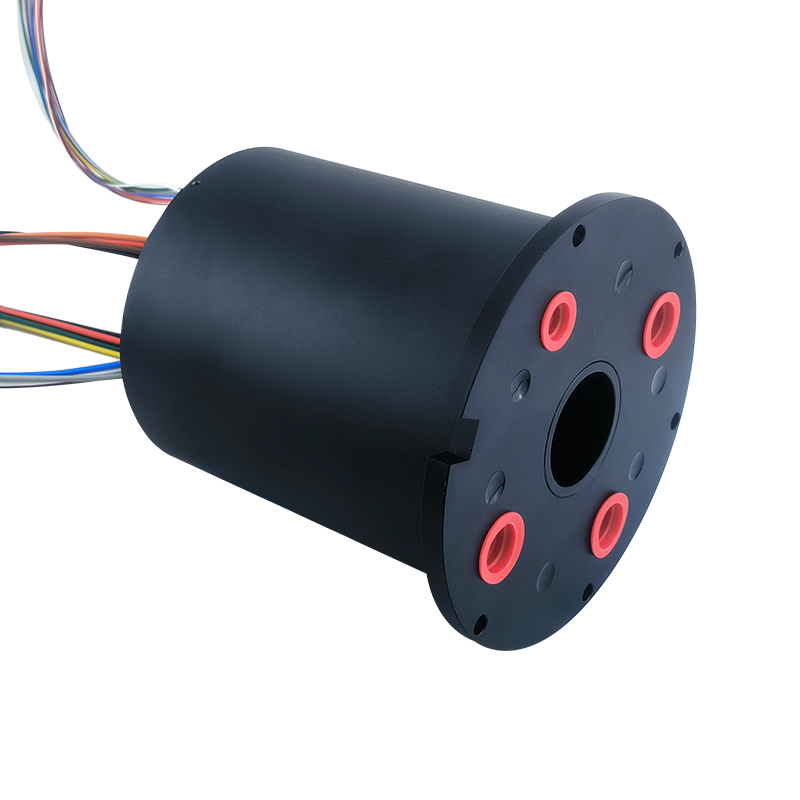

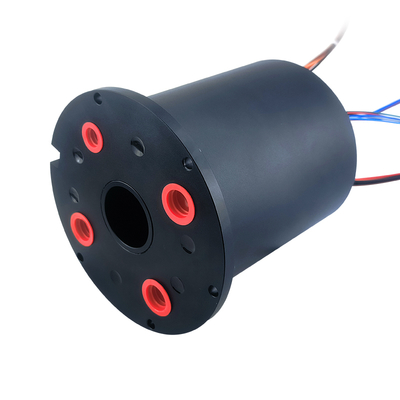

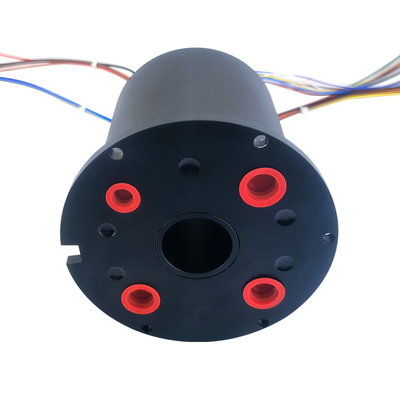

Product Images
38mm ID 26-way through hole slip ring, aluminum alloy, IP65 protection 1 38mm ID 26-way through hole slip ring, aluminum alloy, IP65 protection 2 38mm ID 26-way through hole slip ring, aluminum alloy, IP65 protection 3
Industrial Applications
  • Wind Power Generation: Connects rotating cabin (generator/control system) with fixed tower
  • Industrial Automation: Robotic joints, rotating worktables, and indexing plates
  • Medical Imaging: CT scanners and X-ray machines with rotating C-arms
  • Packaging Machinery: Power and signal control for filling/labeling heads
  • Test Equipment: Turntable testing and centrifugal test systems
  • Security Systems: High-speed dome camera rotation mechanisms
