56-way combined slip ring 2 Gigabit Ethernet channels IP41 protection

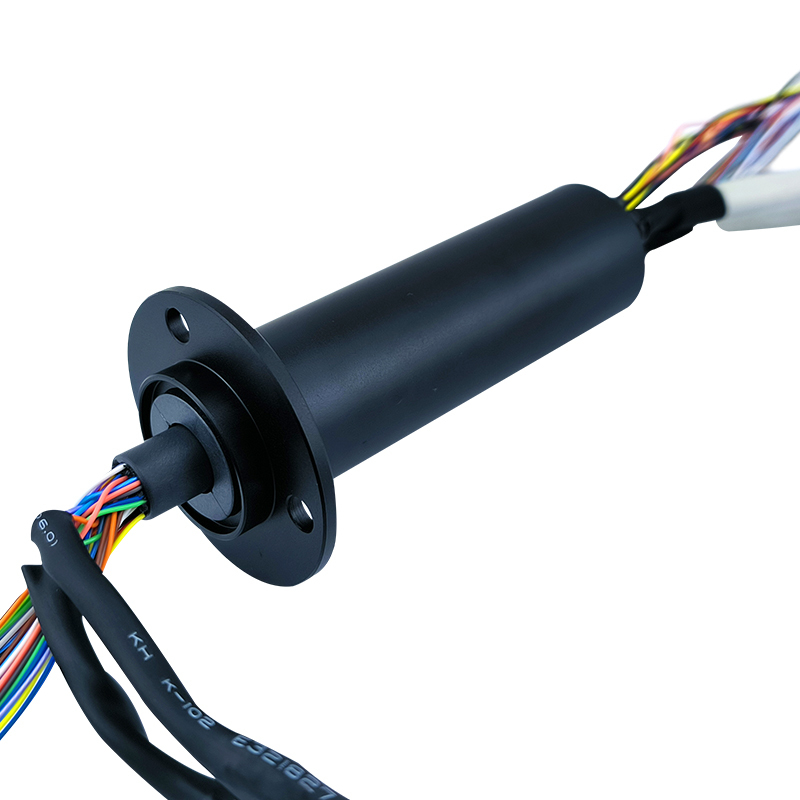

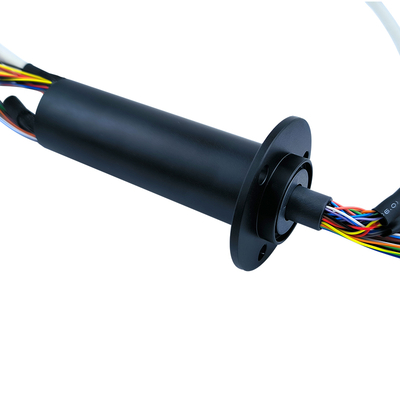

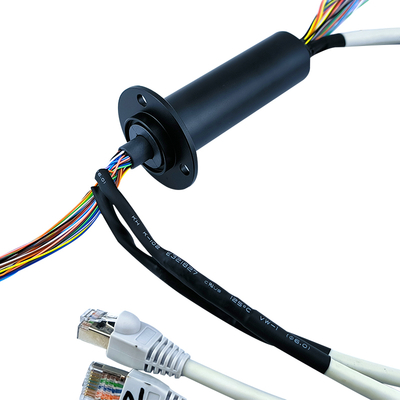

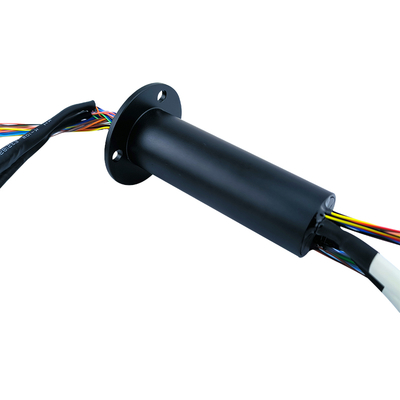

Large Image : 56-way combined slip ring 2 Gigabit Ethernet channels IP41 protection

Product Details:

Place of Origin:	china
Brand Name:	GuRen
Certification:	ISO9001.CE.RoHS
Model Number:	WX25-56P-GRA0389

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	＄19-199
Packaging Details:	Standard/On Request
Delivery Time:	3 weeks ARO
Payment Terms:	L/C,D/P,T/T
Supply Ability:	1K units/week

Contact Now Chat Now

56-way combined slip ring 2 Gigabit Ethernet channels IP41 protection

Description

Rotation Speed:	200rpm	Shell Material:	Aluminum Alloy
Protection Level:	IP41	Network Channel:	2 Group
Electrical Pathways:	38-way Power	Wire Length:	500mm
Highlight:	56-way Ethernet slip ring , 2 Gigabit Ethernet slip ring , IP41 protected slip ring

56-Way Combined Slip Ring with 2 Gigabit Ethernet Channels (IP41 Protection)

The 56-way network slip ring features two Gigabit Ethernet channels and 38 electrical channels (2A each). Designed with a flange configuration and single-piece injection molding, this compact unit (25mm outer diameter) operates at 200 rpm with 240V voltage capacity.

Key Features

Ultra-compact design: 25mm outer diameter integrates 56 signal/power channels with exceptional internal density
High-speed networking: Two IEEE 802.3-compliant Gigabit Ethernet channels with optimized shielding for lossless, low-latency transmission
Robust power delivery: 38 channels (2A each) support 240V operation for industrial equipment requirements
Durable construction: Injection-molded housing provides superior corrosion and vibration resistance for harsh environments

Technical Specifications

Network Specifications
Ethernet Channels	2 (1000M)
Connector Type	RJ45 male (female optional)

Mechanical Specifications	Electrical Specifications
Speed: 200rpm Working life: 5 million rpm Operating humidity: 0-85%RH Operating temperature: -30°C to 70°C Contact material: Precious Metals Shell material: Aluminum Alloy Rotation torque: 0.01N.m+0.03N.m/6 channels	Voltage: 240V AC/DC Insulation resistance: ≥500MΩ/300VDC Wire Specifications: AWG#28 tinned Teflon Dielectric strength: 300VAC@50Hz,60S Dynamic resistance: <0.01Ω Electrical noise: <10 milliohms Wire length: 500mm standard

Application Scenarios

Ideal for Industry 4.0 automation (smart factories, CNC machining), security systems (panoramic monitoring), renewable energy (wind/solar power), and medical/scientific equipment requiring reliable high-speed data transmission during rotation.
