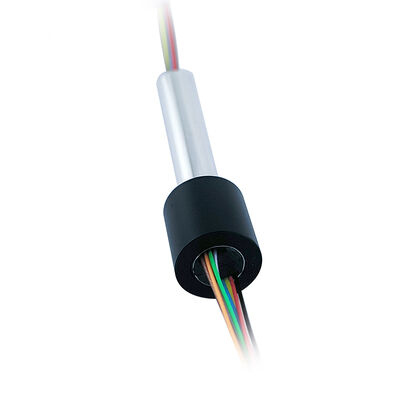

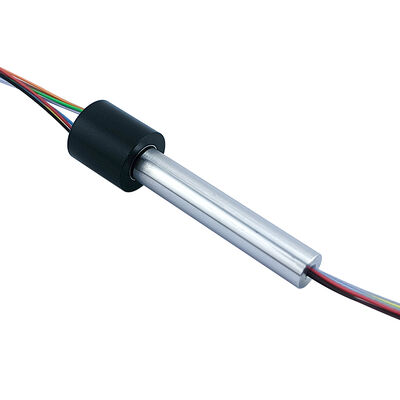

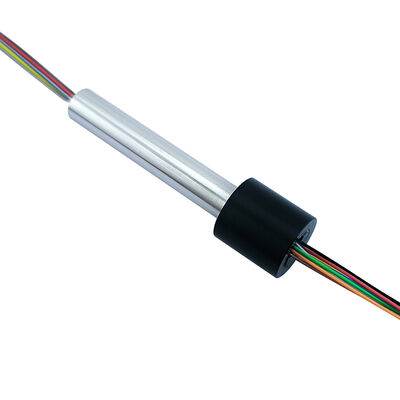

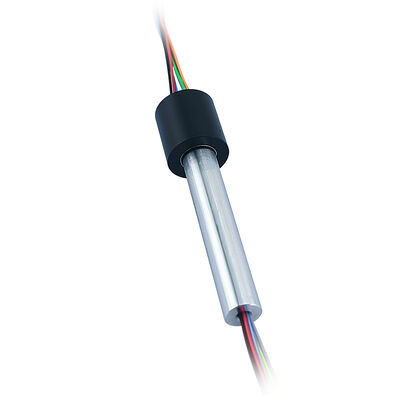

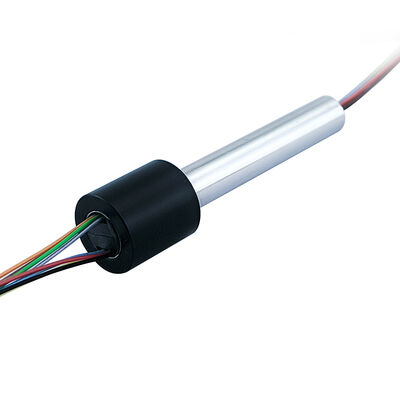

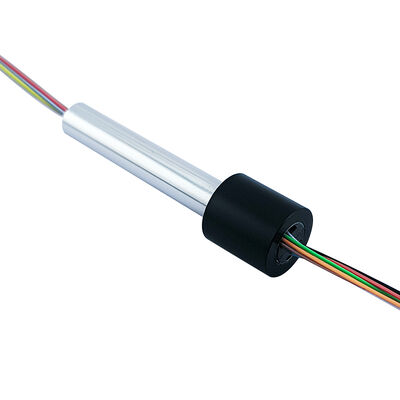

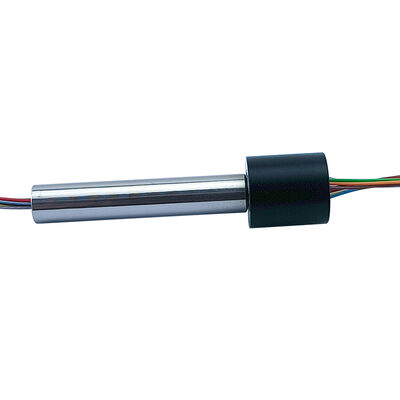

8-channel 1A low-power slip ring with 48V operating voltage and IP40 protection for miniature devices

8-channel 1A low-power slip ring with 48V operating voltage and IP40 protection for miniature devices
8-channel 1A low-power slip ring with 48V operating voltage and IP40 protection for miniature devices
8-channel 1A low-power slip ring with 48V operating voltage and IP40 protection for miniature devices 8-channel 1A low-power slip ring with 48V operating voltage and IP40 protection for miniature devices 8-channel 1A low-power slip ring with 48V operating voltage and IP40 protection for miniature devices 8-channel 1A low-power slip ring with 48V operating voltage and IP40 protection for miniature devices 8-channel 1A low-power slip ring with 48V operating voltage and IP40 protection for miniature devices 8-channel 1A low-power slip ring with 48V operating voltage and IP40 protection for miniature devices 8-channel 1A low-power slip ring with 48V operating voltage and IP40 protection for miniature devices 8-channel 1A low-power slip ring with 48V operating voltage and IP40 protection for miniature devices

Large Image :  8-channel 1A low-power slip ring with 48V operating voltage and IP40 protection for miniature devices

Product Details:
Place of Origin: China
Brand Name: GUREN
Certification: ISO9001.CE.RoHS
Model Number: WX11-8PS-GRC0217
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: ＄19-199
Packaging Details: Standard/On Request
Delivery Time: 3 weeks ARO
Payment Terms: L/C,D/A,D/P,T/T
Supply Ability: 1K units/week
Contact Now Chat Now

8-channel 1A low-power slip ring with 48V operating voltage and IP40 protection for miniature devices

Description
Outer Diameter: 11mm Length: 44.8mm
Number Of Circuits: 8-way 1A Contact Material: Gold-Gold
Service Life: 2 Million Rpm Wire Specifications: AWG30# Teflon Wire
Highlight:

8-channel 1A slip ring

,

48V operating voltage conductive slip ring

,

IP40 protection rotary electrical connector

8-channel 1A Low-Power Slip Ring
This 8-channel 1A low-power slip ring is specifically designed for miniature devices. It features an extremely compact structure with an outer diameter of only 11mm and is equipped with a 6mm aluminum alloy bushing. Utilizing gold-to-gold contact materials and AWG30# Teflon wire, it supports 48V operating voltage and 100RPM speed, and has an IP40 protection rating, providing a reliable rotary connection solution for space-constrained, low-power devices.
Key Features
  • Ultra-compact design: An ultra-small 11mm outer diameter paired with a 6mm bushing meets the extreme installation requirements of miniature devices.
  • Gold-to-gold contact guarantee: Utilizing gold-to-gold contact materials ensures stability in low-signal transmission and an ultra-long service life.
  • Premium cable configuration: AWG30# Teflon wire provides excellent insulation performance and high-temperature resistance.
  • Precise voltage matching: 48V operating voltage optimized for low-power devices, resulting in lower energy consumption and higher safety.
Technical Specifications
Parameter Value
Dielectric strength 100VCA@50Hz,60s
Insulation resistance ≥100MΩ/100VDC
Dynamic resistance change value ＜0.01Ω
Rated voltage 0～48VDC/VAC
Wire Specifications AWG30#Teflon wire
Wire length Rotor 100mm; stator 200mm (reference value)
Operating temperature -30℃～+70℃
Operating humidity 0～85%RH
Protection level IP40
Shell material Engineering Plastics
Rotational torque 0.05N.m,+0.01N.m/6-way
Service life 2 million rpm
Product Dimensions
8-channel 1A low-power slip ring with 48V operating voltage and IP40 protection for miniature devices 0
Applications
  • Miniature robots: Signal and power transmission in rotating joints.
  • Precision instruments: Rotating connection parts in medical equipment and testing instruments.
  • Security monitoring: Signal transmission for miniature pan-tilt cameras.
  • Smart wearables: Power supply for specialized rotating structures.
Frequently Asked Questions
Q1: What is the maximum load current of AWG 30# wire?
A: AWG 30# wire can stably carry 1A of current under normal operating conditions, meeting the power requirements of most low-power equipment.
Q2: What is the specific installation method for the 6mm bushing?
A: The bushing is designed to directly mate with miniature bearings. Detailed installation dimension diagrams are provided to ensure quick and accurate assembly.
Q3: What environments is the IP40 protection rating suitable for?
A: IP40 protection effectively prevents the intrusion of solid foreign objects larger than 1mm in diameter, making it suitable for indoor environments with basic dust protection requirements.
