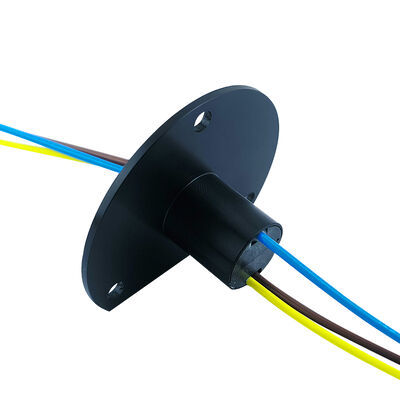

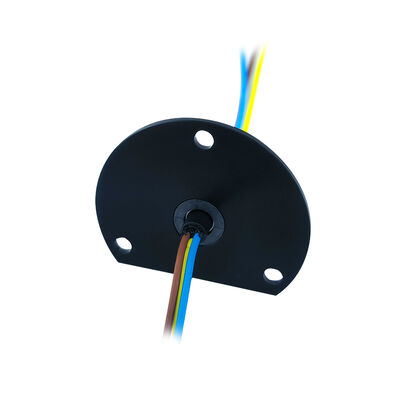

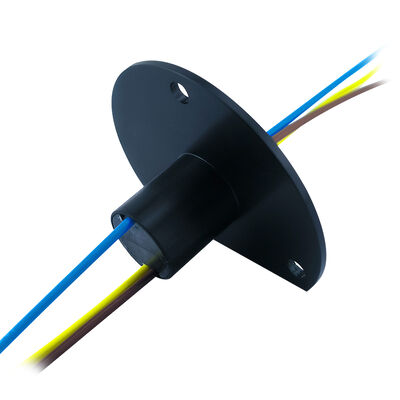

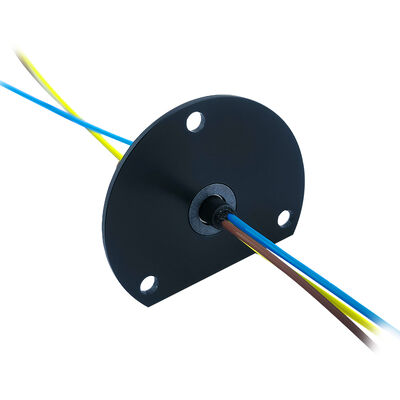

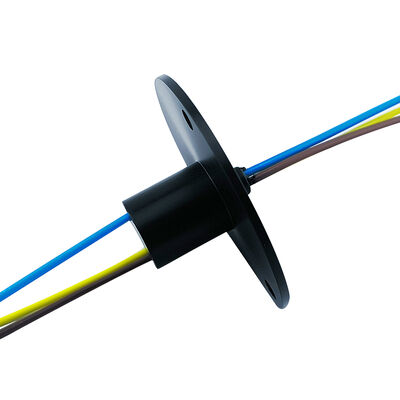

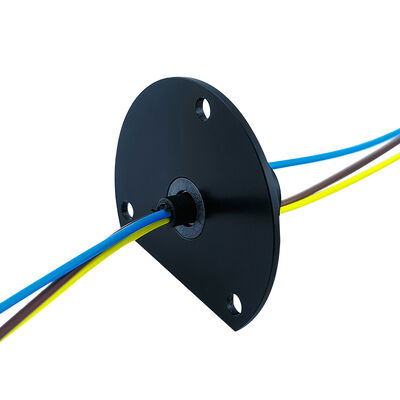

3-way 2A Rotary Cap Slip Ring with 12.4mm Outer Diameter and 19.4mm Length for Compact Dynamic Transmission

3-way 2A Rotary Cap Slip Ring with 12.4mm Outer Diameter and 19.4mm Length for Compact Dynamic Transmission
3-way 2A Rotary Cap Slip Ring with 12.4mm Outer Diameter and 19.4mm Length for Compact Dynamic Transmission
3-way 2A Rotary Cap Slip Ring with 12.4mm Outer Diameter and 19.4mm Length for Compact Dynamic Transmission 3-way 2A Rotary Cap Slip Ring with 12.4mm Outer Diameter and 19.4mm Length for Compact Dynamic Transmission 3-way 2A Rotary Cap Slip Ring with 12.4mm Outer Diameter and 19.4mm Length for Compact Dynamic Transmission 3-way 2A Rotary Cap Slip Ring with 12.4mm Outer Diameter and 19.4mm Length for Compact Dynamic Transmission 3-way 2A Rotary Cap Slip Ring with 12.4mm Outer Diameter and 19.4mm Length for Compact Dynamic Transmission 3-way 2A Rotary Cap Slip Ring with 12.4mm Outer Diameter and 19.4mm Length for Compact Dynamic Transmission 3-way 2A Rotary Cap Slip Ring with 12.4mm Outer Diameter and 19.4mm Length for Compact Dynamic Transmission

Large Image :  3-way 2A Rotary Cap Slip Ring with 12.4mm Outer Diameter and 19.4mm Length for Compact Dynamic Transmission

Product Details:
Place of Origin: China
Brand Name: GUREN
Certification: ISO9001.CE.RoHS
Model Number: WX12-3P02-E0056
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: ＄19-199
Packaging Details: Standard/On Request
Delivery Time: 3 weeks ARO
Payment Terms: L/C,D/A,D/P,T/T
Supply Ability: 1K units/week
Contact Now Chat Now

3-way 2A Rotary Cap Slip Ring with 12.4mm Outer Diameter and 19.4mm Length for Compact Dynamic Transmission

Description
Outer Diameter: 12.4mm Length: 19.4mm
Number Of Circuits: 3-way 2A Contact Material: Gold-Gold
Service Life: 2 Million Rpm Wire Specifications: AWG20# Teflon Wire
Highlight:

3-way 2A Rotary Cap Slip Ring

,

12.4mm Outer Diameter Slip Ring

,

19.4mm Length Conductive Slip Ring

3-way 2A Rotary Cap Slip Ring with PBT Engineering Plastic Housing (150RPM)
This 3-channel 2A rotary cap slip ring features a unique flange notch design and a PBT engineering plastic housing, combining electrical safety with ease of installation. Supporting 220V operating voltage, it can stably transmit power and signals at 150RPM, making it an ideal connection solution for compact rotating mechanisms in small automated equipment and instruments.
Key Features
  • Embedded Installation Design: The unique flange notch structure allows for direct embedding into pre-existing equipment space, saving installation volume.
  • High-Performance Cable Configuration: Utilizes AWG20# Teflon wire, offering high temperature resistance and strong insulation to ensure safe transmission under 220V voltage.
  • Lightweight Insulated Housing: PBT engineering plastic housing combines excellent insulation and mechanical strength, effectively reducing overall weight.
  • Compact Dynamic Transmission: Achieves stable transmission across 3 channels (2A each) within a compact structure with a diameter of only 25.4mm, supporting continuous rotation at 150RPM.
Technical Specifications
Parameter Value
Dielectric strength 200VCA@50Hz,60s
Insulation resistance ≥100MΩ/200VDC
Dynamic resistance change value ＜0.01Ω
Rated voltage 0～220VDC/VAC
Wire Specifications AWG20#Teflon wire
Wire length Rotor 50mm; stator 100mm (reference value)
Operating temperature -20℃～+80℃
Operating humidity 0～85%RH
Protection level IP40
Shell material Engineering Plastics
Rotational torque 0.05N.m,+0.01N.m/6-way
Service life 2 million rpm
Product Dimensions
3-way 2A Rotary Cap Slip Ring with 12.4mm Outer Diameter and 19.4mm Length for Compact Dynamic Transmission 0
Applications
Small-scale automated equipment: Rotary power supply for light industrial automated production lines and miniature assembly machinery.
Instrumentation: Signal and power transmission for test turntables and sensor platforms.
Smart home: Concealed power supply systems for rotating lamps and smart appliances.
Security equipment: Compact connections for rotating parts of small pan-tilt units and monitoring equipment.
Frequently Asked Questions
Q1: Does the flange notch design affect installation stability?
A: This design is based on precise structural calculations, optimizing space utilization while ensuring installation stability. We provide detailed installation guidelines to ensure reliable embedded installation.
Q2: What are the advantages of a PBT housing compared to a metal housing?
A: PBT engineering plastic has excellent electrical insulation, heat resistance, and mechanical strength, while effectively reducing product weight, making it particularly suitable for applications with high insulation requirements.
Q3: Does the product support higher speeds?
A: The standard version of this product is optimized for 150 RPM. For higher speeds, we can provide customized solutions; please contact our technical support for consultation.
