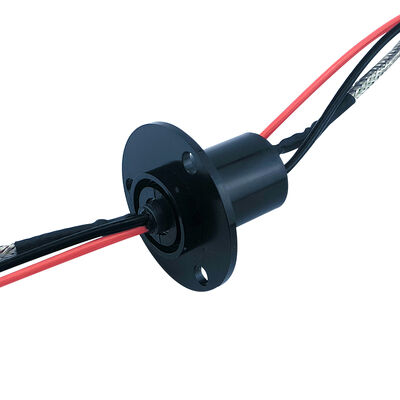

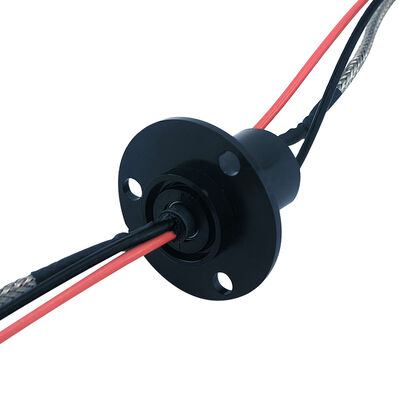

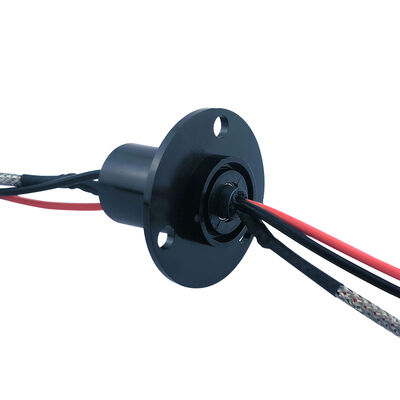

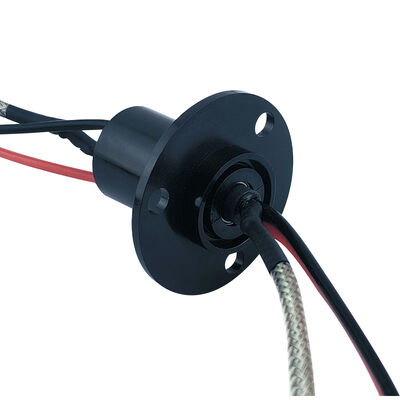

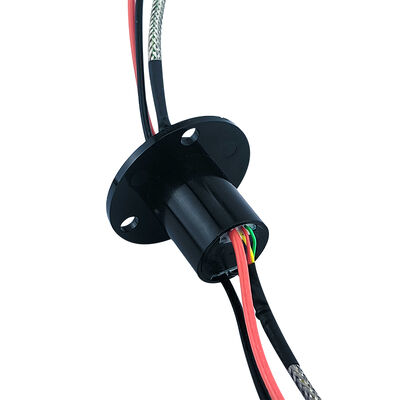

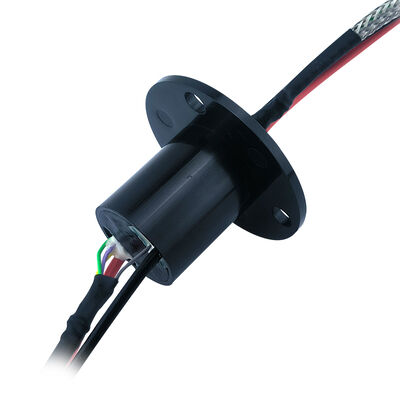

4-Channel 485 Signal 2-Channel 15A Cap-Type Combination Slip Ring with Flange

4-Channel 485 Signal 2-Channel 15A Cap-Type Combination Slip Ring with Flange
4-Channel 485 Signal 2-Channel 15A Cap-Type Combination Slip Ring with Flange
4-Channel 485 Signal 2-Channel 15A Cap-Type Combination Slip Ring with Flange 4-Channel 485 Signal 2-Channel 15A Cap-Type Combination Slip Ring with Flange 4-Channel 485 Signal 2-Channel 15A Cap-Type Combination Slip Ring with Flange 4-Channel 485 Signal 2-Channel 15A Cap-Type Combination Slip Ring with Flange 4-Channel 485 Signal 2-Channel 15A Cap-Type Combination Slip Ring with Flange 4-Channel 485 Signal 2-Channel 15A Cap-Type Combination Slip Ring with Flange 4-Channel 485 Signal 2-Channel 15A Cap-Type Combination Slip Ring with Flange

Large Image :  4-Channel 485 Signal 2-Channel 15A Cap-Type Combination Slip Ring with Flange

Product Details:
Place of Origin: China
Brand Name: GUREN
Certification: ISO9001.CE.RoHS
Model Number: WX22-2P15-2PS-A6418
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: ＄19-199
Packaging Details: Standard/On Request
Delivery Time: 3 weeks ARO
Payment Terms: L/C,D/A,D/P,T/T
Supply Ability: 1K units/week
Contact Now Chat Now

4-Channel 485 Signal 2-Channel 15A Cap-Type Combination Slip Ring with Flange

Description
Outer Diameter: 22mm Length: 25.6mm
Number Of Circuits: 2-channel 15A, 2-channel Signal Contact Material: Gold-Gold
Service Life: 2 Million Rpm Wire Specifications: AWG14#/26# Teflon Wire
Highlight:

4-Channel Cap-Type Slip Ring

,

485 Signal Combination Slip Ring

,

2-Channel 15A Flanged Slip Ring

High-performance 4-channel cap-type combination slip ring, 485 signal, 2 channels 15A
This high-performance 4-channel cap-type combination slip ring innovatively integrates two 15A high-current channels and two 485 signal channels into an ultra-compact cap-type structure. With an outer diameter of only 22mm, it supports 220V operating voltage and 150RPM speed, and has an IP40 protection rating. It is specifically designed for rotating equipment with limited space that requires simultaneous transmission of power and data.
Key Features
  • Intelligent Channel Configuration: Integrates two 15A high-current channels and two 485 signal channels, balancing power transmission and data communication.
  • Ultra-Compact Cap-Style Design: Only 22mm outer diameter, suitable for the installation needs of highly integrated miniature devices.
  • Industrial-Grade Electrical Performance: Supports 220V operating voltage, 150RPM speed meets most rotating application scenarios.
  • Reliable Protection: IP40 protection rating effectively prevents solid foreign object intrusion, ensuring basic operational safety.
Technical Specifications
Parameter Value
Dielectric strength 300VCA@50Hz,60s
Insulation resistance ≥500MΩ/300VDC
Dynamic resistance change value ＜0.01Ω
Rated voltage 0～220VDC/VAC
Wire Specifications AWG14#/26#Teflon wire
Wire length Rotor 250mm; stator 250mm (reference value)
Operating temperature -30℃～+70℃
Operating humidity 0～85%RH
Protection level IP40
Shell material Engineering Plastics
Rotational torque 0.05N.m,+0.01N.m/6-way
Service life 2 million rpm
Product Dimensions
4-Channel 485 Signal 2-Channel 15A Cap-Type Combination Slip Ring with Flange 0
Applications
  • Miniature automation equipment: Power and signal transmission for small robotic arms and precision instruments.
  • Intelligent security systems: Synchronous data and power transmission for PTZ cameras.
  • Industrial control systems: Signal acquisition and power supply for rotating sensor platforms.
  • Instrumentation and equipment: Rotating connection parts of testing and measurement devices.
Frequently Asked Questions
Q1: How effective is the interference immunity of the 485 signal channel?
A: The product employs a professional signal isolation and shielding design to ensure the stability and reliability of 485 communication during synchronous operation of the power circuit.
Q2: What are the advantages of the cap-style installation method?
A: The cap-style design allows for compact axial installation, significantly saving radial space, making it particularly suitable for applications with strict limitations on installation dimensions.
Q3: Does the product support higher protection levels?
A: The standard version of this product has an IP40 protection rating. For higher levels of protection, we can provide customized solutions.
