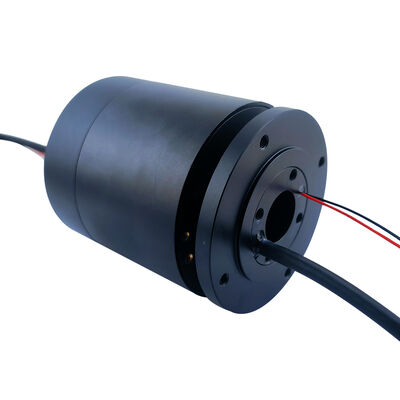

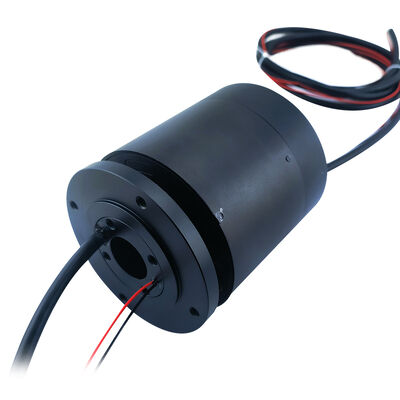

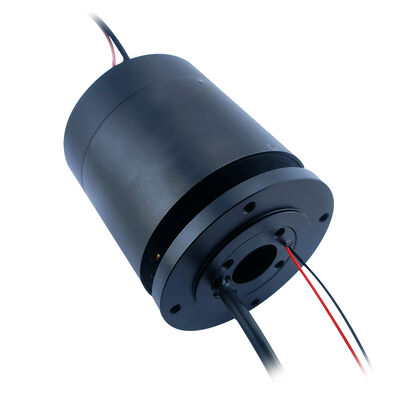

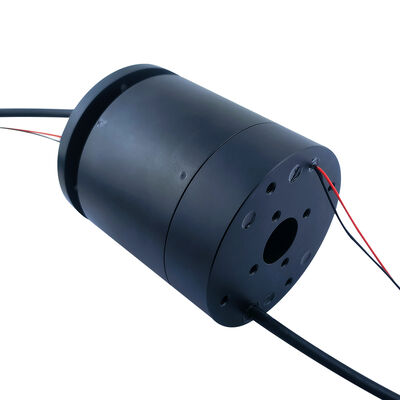

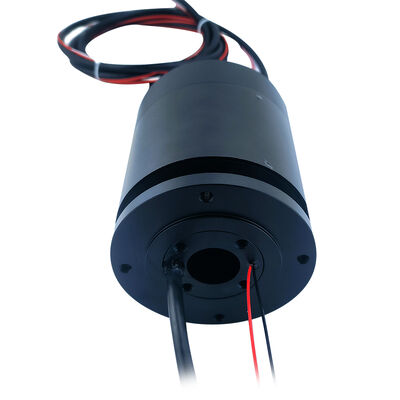

1-Channel Pneumatic and 11-Channel Electrical Integrated Slip Ring
Product Overview
This integrated slip ring combines one pneumatic channel, two 5A high-current channels, and eight shielded signal channels. Featuring an aluminum alloy housing and an IP51 protection rating, it supports 380V industrial voltage and has a design speed of 50 RPM. It is specifically designed for complex rotating equipment requiring the simultaneous transmission of pneumatic power, medium-power electricity, and sensitive signals.
Key Features
Three-Medium Integrated Transmission: A single device simultaneously transmits gas, electricity, and signals, greatly simplifying the rotating interface, reducing external piping, and improving system integration and reliability.
Industrial-Grade Electrical Performance: Supports standard 380V industrial voltage, with two 5A channels providing stable power, and eight shielded signal channels ensuring interference-free transmission of control and data signals.
Reliable Structure and Protection: The aluminum alloy casing is robust and durable, and the IP51 protection rating effectively prevents dust and protects against vertically falling water droplets, making it suitable for various industrial environments.
Optimized for Low-Speed, Heavy-Duty Applications: The 50 RPM rotation speed is optimized for applications requiring precise control, high torque, or heavy-duty starting, ensuring stable operation and long service life.
Technical Parameters
| Electrical Parameters |
Gas Parameters |
| Dielectric strength: 500VCA@50Hz,60s |
Number of trachea: 1 in 1 out |
| Insulation resistance: ≥1000MΩ/500VDC |
Pressure: -99KPa-1MPa or vacuum |
| Dynamic resistance change value: ＜10mΩ |
Rotational torque: <0.3N.m |
| Rated voltage: 0～380VDC/VAC |
Rotation speed: 50rpm |
| Wire Specifications: Teflon wire (current-dependent) |
Shell material: Aluminum Alloy |
| Wire length: Default 300mm (Customizable) |
Temperature: -30℃～+80℃ |
| Contact material: Precious metal contacts |
Operating humidity: 0～85%RH |
| Protection level: IP51 |
|
Technical Drawings
Application Scenarios
Multifunctional Rotary Worktable: A composite workstation on a machining center or assembly line, requiring simultaneous pneumatic clamping, electric drive, and signal feedback.
Heavy-duty Automated Fixture: A large robotic end effector integrating pneumatic gripping, electric adjustment, and multi-sensor feedback.
Packaging and Filling Equipment: A rotary multi-station device performing simultaneous pneumatic purging, electric metering, and position sensing.
Specialized Testing Equipment: A rotary test platform requiring pneumatic actuation, electric drive, and simultaneous acquisition of multiple data streams.
Frequently Asked Questions
What is the maximum operating pressure supported by the air passage?
The air passage of this product adopts a standard industrial design, and the conventional models support the commonly used pneumatic pressure range (such as 0.2-0.8 MPa). For specific maximum pressure values, please refer to the product data sheet or contact our technical support.
Do the 8 signal channels support Ethernet or USB protocols?
The shielded signal channels of this product are optimized for industrial communication protocols such as analog signals, digital I/O, and RS485/422. For high-speed protocols (such as Gigabit Ethernet), due to their extremely high requirements for impedance matching and anti-interference, we recommend using a dedicated slip ring or contacting us for customized solutions.
Is a rotational speed of 50 RPM suitable for equipment requiring continuous high-speed rotation?
50 RPM is the rated design speed of this product, which focuses on ensuring long-term stability of sealing, heat dissipation, and electrical connections when transmitting various media (especially gases and large currents). For applications requiring higher pure rotational speed, we can provide customized products focusing on different performance indicators.
