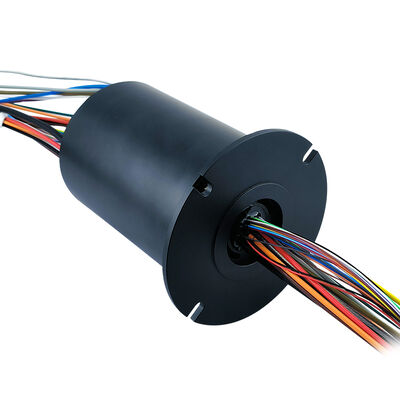

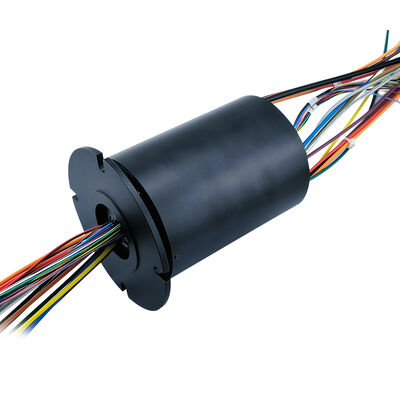

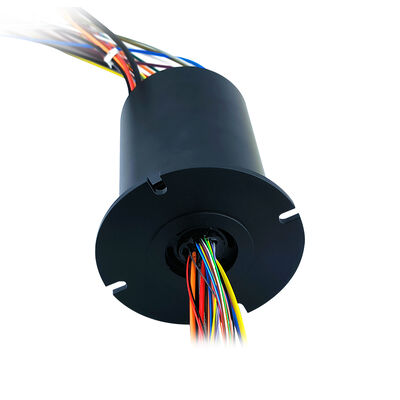

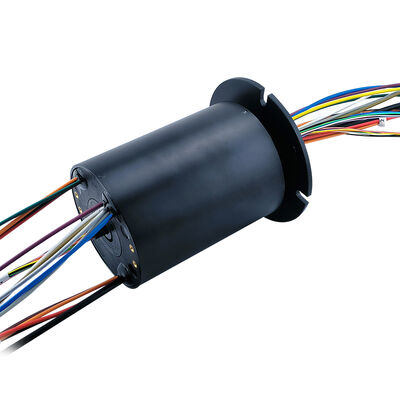

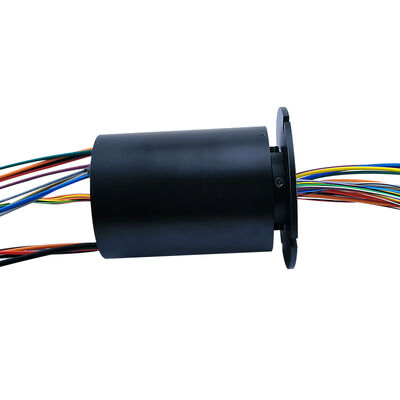

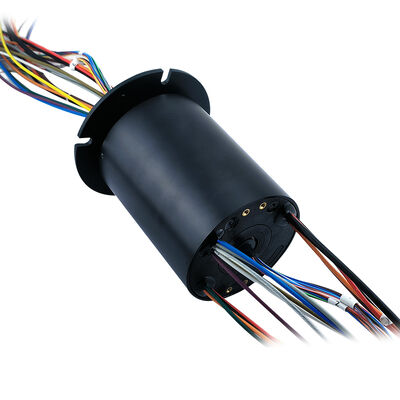

43-channel high-power industrial-grade combined slip ring with flange for control signal transmission

43-channel high-power industrial-grade combined slip ring with flange for control signal transmission
43-channel high-power industrial-grade combined slip ring with flange for control signal transmission
43-channel high-power industrial-grade combined slip ring with flange for control signal transmission 43-channel high-power industrial-grade combined slip ring with flange for control signal transmission 43-channel high-power industrial-grade combined slip ring with flange for control signal transmission 43-channel high-power industrial-grade combined slip ring with flange for control signal transmission 43-channel high-power industrial-grade combined slip ring with flange for control signal transmission 43-channel high-power industrial-grade combined slip ring with flange for control signal transmission 43-channel high-power industrial-grade combined slip ring with flange for control signal transmission

Large Image :  43-channel high-power industrial-grade combined slip ring with flange for control signal transmission

Product Details:
Place of Origin: China
Brand Name: GUREN
Certification: ISO9001.CE.ROHS
Model Number: SX86F-43P-C0345
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: ＄19-199
Packaging Details: Standard/On Request
Delivery Time: 3 weeks ARO
Payment Terms: L/C,D/A,D/P,T/T
Supply Ability: 1K units/week
Contact Now Chat Now

43-channel high-power industrial-grade combined slip ring with flange for control signal transmission

Description
Protection Level: IP51 Explosion-proof Rating: ExdII BT4
Contact Material: Precious Metals Signal Type: 485 Signal,
Circuit: 43-way Speed: 0-300rpm
Operating Temperature: -30℃- +80℃
Highlight:

43-channel Slip Ring

,

High-power Combined Slip Ring

,

Industrial-grade Flanged Slip Ring

43-Channel High-Power Industrial-Grade Combined Slip Ring
This high-power, multi-channel industrial-grade slip ring assembly features a total of 43 channels and is specifically designed for high-speed rotating equipment requiring simultaneous transmission of high-power electricity and multiple control signals. The product features an aluminum alloy housing and IP51 protection rating, and integrates 16 high-current 20A channels, 24 standard 2A channels, and 2 shielded 485 signal channels. It supports a 220V operating voltage and operates stably at high rotational speeds of up to 300 RPM, making it an ideal power and control hub for high-end automation equipment, test platforms, and heavy machinery.
Key Features
  • Graded Power Distribution Design: Uniquely integrates 16 channels of 20A high current with 24 channels of 2A standard current, achieving intelligent matching and centralized management of high and low power loads, resulting in excellent overall load capacity and extremely high wiring efficiency.
  • 43-Channel High-Density Integration: Provides a total of 43 independent channels in a single device, greatly simplifying the complex system architecture that traditionally requires multiple slip rings, significantly improving system reliability.
  • High-Speed Operation and Signal Integrity: A rotation speed of 300 RPM meets the needs of high-speed applications; two shielded 485 signal channels effectively isolate strong electromagnetic interference generated by high currents, ensuring stable communication.
  • Industrial-Grade Reliable Protection: IP51 protection rating effectively prevents dust accumulation and vertical water dripping, adapting to most industrial workshop environments and ensuring the long-term durability of the internal precision structure.
Performance Parameters
Parameter Value
Dielectric strength 300VCA@50Hz,60s
Insulation resistance ≥1000MΩ/300VDC
Dynamic resistance change value ＜0.01Ω
Rated voltage 0～220VDC/VAC
Wire Specifications Teflon wire
Wire length Rotor 300mm; stator 300mm (reference value)
Operating temperature -30℃～+80℃
Operating humidity 0～85%RH
Shell material aluminum alloy
Rotational torque 0.05N.m,+0.01N.m/6-way
Service life 2 million rpm
Product Dimensions
43-channel high-power industrial-grade combined slip ring with flange for control signal transmission 0
Applications
  • Large-scale multi-axis automation systems: Rotary power and signal hubs for automotive welding production lines and large gantry machining centers.
  • Heavy engineering machinery: Centralized power distribution and control systems for rotary platforms of port cranes and large mining equipment.
  • High-end testing and simulation equipment: Multi-channel power supply and data acquisition for high-speed simulation turntables used in aerospace applications.
  • Intelligent logistics sorting systems: Multi-motor drive and scanner communication for the rotating units of high-speed cross-belt sorters.
Frequently Asked Questions
Q1: Can all 16 channels of the 20A slip ring operate at full load simultaneously?
The product design supports simultaneous operation of all channels. However, during system design, it is recommended to evaluate the total peak power and thermal balance of the equipment. We can provide detailed heat dissipation data to assist you in completing the overall thermal design and ensuring long-term stable operation.
Q2: How does the shielded 485 signal channel ensure communication in a strong electromagnetic environment?
The channels adopt an independent shielding layer design and are physically isolated and filtered from high-current channels, effectively suppressing common-mode and differential-mode interference. We recommend using shielded twisted-pair cables and proper grounding for optimal anti-interference performance.
Q3: Does a rotation speed of 300 RPM mean that all channels are suitable for this speed?
Yes, 300 RPM is the rated mechanical speed of the entire slip ring, and all channels operate synchronously at this speed. Electrical performance (such as current carrying capacity) is guaranteed within this speed range.
