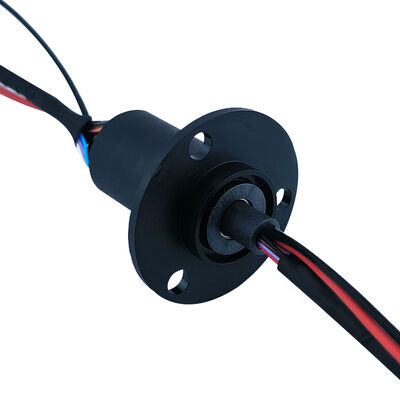

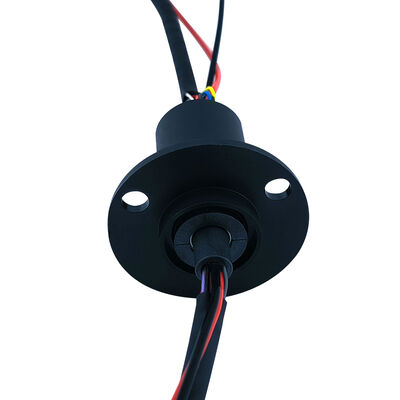

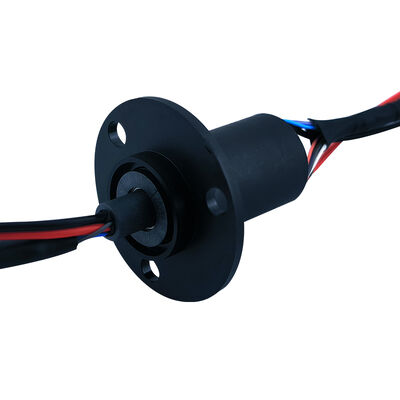

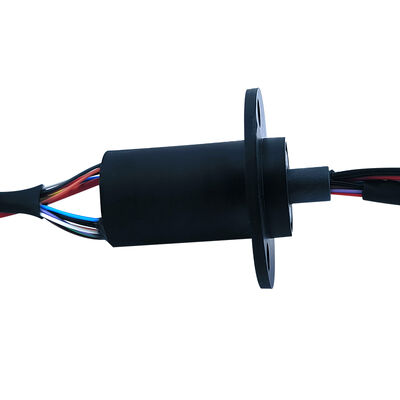

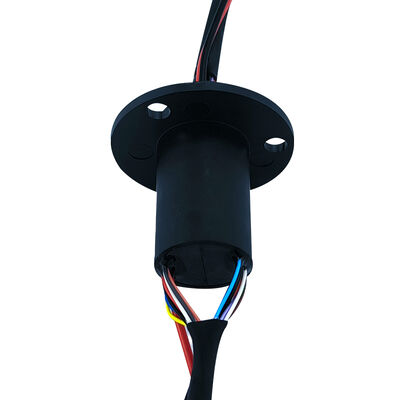

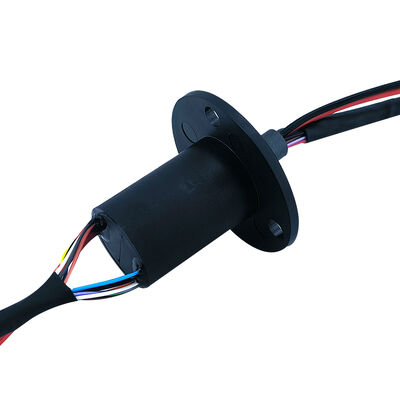

14-Channel Electrical Signal Flange Type Slip Ring
The 14-channel electrical signal flange combination slip ring is an ultra-compact component specifically engineered for voltage sensors and precision signal equipment. Featuring a PBT engineering plastic housing and integrated flange structure, it combines 14 channels within a 22mm outer diameter, including 2 x 10A power channels and 12 voltage sensor signal channels with professional shielding. With a 250 RPM rotation speed and advanced insulation and anti-interference design, this slip ring serves as the ideal rotating connection solution for measurement and automation systems requiring minimal space and superior signal purity.
Key Features
  • Ultra-Compact Insulated Structure: 22mm outer diameter with PBT engineering plastic housing provides excellent electrical insulation, mechanical strength, and lightweight properties, ideal for miniature devices and high-voltage isolation applications.
  • Dedicated Voltage Sensor Signal Design: All 12 signal channels feature professional shielding layers optimized for micro-voltage/high-impedance signals, effectively suppressing electromagnetic interference to ensure measurement accuracy and signal integrity.
  • Integrated Power and Signal Transmission: Combines 2 channels of 10A power output with multiple precision signal acquisition channels, simplifying rotating connections for sensor power supply and data feedback.
  • Convenient Integrated Flange Installation: Innovative flange design allows direct mounting without additional adapters, streamlining assembly in confined spaces while enhancing installation accuracy and stability.
Technical Specifications
Parameter Value
Dielectric strength 200VCA@50Hz,60s
Insulation resistance ≥500MΩ/200VDC
Dynamic resistance change value ＜0.01Ω
Rated voltage 0～220VDC/VAC
Wire Specifications Teflon wire
Wire length Rotor 250mm; stator 250mm (reference value)
Operating temperature -30℃～+70℃
Operating humidity 0～85%RH
Protection level IP41
Shell material Engineering Plastics
Rotational torque 0.05N.m,+0.01N.m/6-way
Service life 2 million rpm
Product Dimensions
14-channel 22mm outer diameter PBT housing flange slip ring for automation equipment 0
Applications
  • Rotary Voltage Monitoring Systems: Rotary sensors in dynamic contact temperature or partial discharge monitoring systems for high-voltage switchgear and GIS equipment.
  • Precision Testing and Measurement Equipment: Signal and power transmission for rotary probe stations and online insulation testing equipment.
  • Small-scale Automation and Robotics: Signal and circuit connections for torque sensors and six-axis force sensors built into robot joints.
  • Special Electrical Equipment: Special instruments requiring rotary connections with stringent requirements for insulation and signal interference.
Frequently Asked Questions
Q1: Does a PBT housing offer advantages over a metal housing in terms of signal transmission?
Yes, it offers significant advantages for high-sensitivity signals. PBT is an insulator, fundamentally avoiding eddy current effects and ground loop interference that can occur with metal housings. This provides a "cleaner" reference ground for the shielding layer, which is more beneficial for protecting weak signals.
Q2: Can the 12-channel shielded signal channels be used for other types of sensors?
Yes. Its professional shielding design is also suitable for other analog sensors (such as current, temperature, and strain gauges) and digital communication (such as RS485), significantly improving the anti-interference capability of various sensitive signals.
Q3: How is the integrated flange installed?
This design incorporates a mounting flange directly onto the slip ring body, with pre-drilled standard mounting holes. Users can directly fix it to the stationary or rotating structure of the equipment using screws, with the interface facing outwards, achieving "plug-and-play" functionality and greatly simplifying the integration process.
