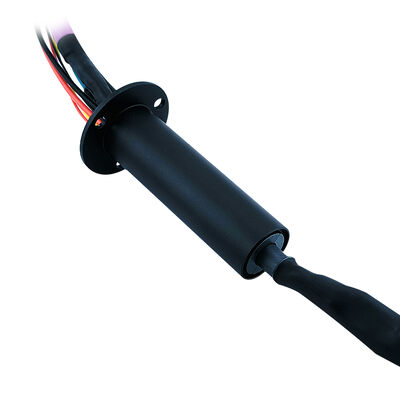

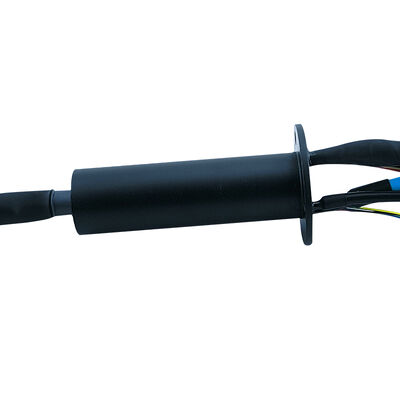

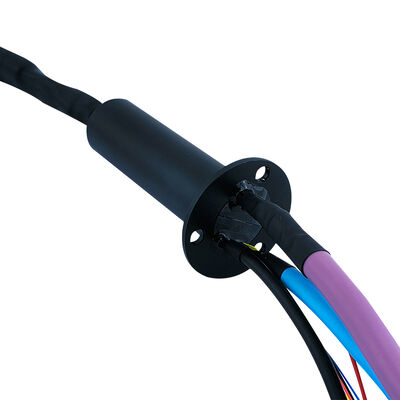

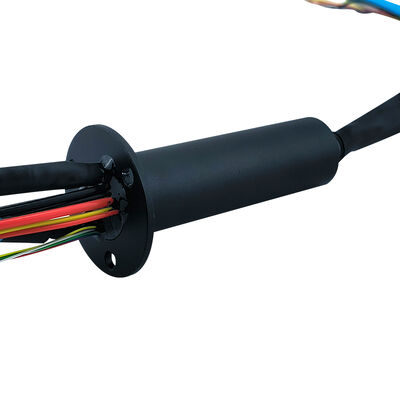

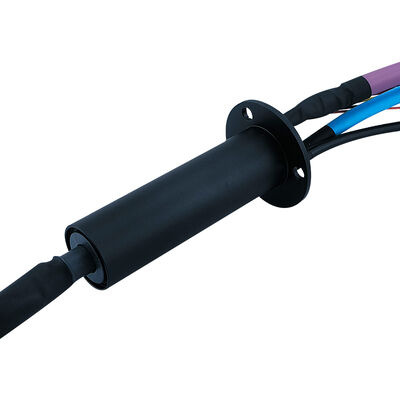

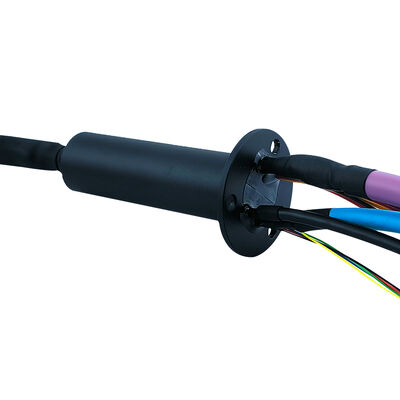

26 Channels Gigabit Ethernet Slip Ring with Aluminum Alloy Shell and 250rpm Rotation Speed

26 Channels Gigabit Ethernet Slip Ring with Aluminum Alloy Shell and 250rpm Rotation Speed
26 Channels Gigabit Ethernet Slip Ring with Aluminum Alloy Shell and 250rpm Rotation Speed
26 Channels Gigabit Ethernet Slip Ring with Aluminum Alloy Shell and 250rpm Rotation Speed 26 Channels Gigabit Ethernet Slip Ring with Aluminum Alloy Shell and 250rpm Rotation Speed 26 Channels Gigabit Ethernet Slip Ring with Aluminum Alloy Shell and 250rpm Rotation Speed 26 Channels Gigabit Ethernet Slip Ring with Aluminum Alloy Shell and 250rpm Rotation Speed 26 Channels Gigabit Ethernet Slip Ring with Aluminum Alloy Shell and 250rpm Rotation Speed 26 Channels Gigabit Ethernet Slip Ring with Aluminum Alloy Shell and 250rpm Rotation Speed 26 Channels Gigabit Ethernet Slip Ring with Aluminum Alloy Shell and 250rpm Rotation Speed

Large Image :  26 Channels Gigabit Ethernet Slip Ring with Aluminum Alloy Shell and 250rpm Rotation Speed

Product Details:
Place of Origin: china
Brand Name: GuRen
Certification: ISO9001.CE.RoHS
Model Number: WX25F-26P-A6421
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: ＄19-199
Packaging Details: Standard/On Request
Delivery Time: 3 weeks ARO
Payment Terms: L/C,D/P,T/T
Supply Ability: 1K units/week
Contact Now Chat Now

26 Channels Gigabit Ethernet Slip Ring with Aluminum Alloy Shell and 250rpm Rotation Speed

Description
Rotation Speed: 250rpm Shell Material: Aluminum Alloy
Protection Level: IP51 Network Channel: 1 Group (including 9 Channels)
Network Bandwidth: Gigabit Wire Length: 95mm
Highlight:

26 Channels Ethernet Slip Ring

,

250rpm Gigabit Slip Ring

,

Aluminum Alloy Shell RJ45 Slip Ring

Gigabit Ethernet Signal Slip Ring with Integrated Cap Design, 26 Channels
This gigabit Ethernet signal slip ring, housed in a 25mm aluminum alloy casing, integrates a total of 26 industrial standard channels, including gigabit Ethernet, CAN bus, 485 communication, and high-current power. Utilizing high-quality gold-to-gold contact materials, it supports a 240V operating voltage and a rotation speed of 250 RPM, providing a one-stop solution for robots, vision systems, and intelligent equipment requiring high-speed data exchange, real-time control, and reliable power supply in space-constrained environments.
Product Features
  • Multi-Industry Protocol One-Stop Integration: A single device integrates Gigabit Ethernet, 2-way CAN, 2-way RS485 (shielded), and 2-way 15A high-current power, perfectly supporting data fusion between IT and OT layers, completely eliminating the complex architecture of multiple slip ring stacks.
  • 25mm Ultra-Compact Cap Design: The extremely compact aluminum alloy cap-shaped housing achieves ultra-high-density integration, optimized for applications such as robot joints and precision gimbals that are extremely sensitive to space and weight.
  • Gigabit High-Speed and Stable Transmission: Built-in dedicated Gigabit Ethernet channel ensures delay-free and lossless transmission of massive visual data, point cloud information, or device status during rotation, enabling real-time edge computing and AI decision-making.
  • Gold-to-Gold Contacts Ensure All-Channel Reliability: All signal and power channels use gold-to-gold contact materials, fundamentally ensuring extremely low contact resistance, ultra-long service life, and consistent and stable transmission of signals across all channels.
Technical Specifications
Ethernet Configuration
Ethernet Connector Type
1 (1000M) RJ45 male connector at both ends (female connector optional)
Mechanical & Electrical Specifications
Parameter Value Parameter Value
Speed 250rpm Voltage 240V AC/VDC
Working life 2 million rpm Insulation resistance ≥500MΩ/300VDC
Operating humidity 0～85%RH Wire Specifications Teflon wire/RVSP2/CAT5E/CAN wire
Operating temperature -30°C-70°C Dielectric strength 300VAC@50Hz,60S
Contact material Gold-Gold Dynamic resistance change value <0.01Ω
Shell material Aluminum Alloy Electrical noise <10 milliohms
Product Dimensions
26 Channels Gigabit Ethernet Slip Ring with Aluminum Alloy Shell and 250rpm Rotation Speed 0
Application Scenarios
  • Intelligent Robot Joints: Collaborative robot and surgical robot wrists, integrating motor drive, force control, vision, and main control communication.
  • High-End Vision Inspection Systems: High-speed rotating industrial cameras and 3D line scan cameras, synchronously transmitting high-definition images, trigger signals, and power.
  • Precision Automation Modules: Precision rotating modules in semiconductor equipment, requiring synchronous control, sensing, and data communication.
  • Industrial Internet of Things Edge Devices: Rotating intelligent inspection and monitoring terminals, requiring local computing and transmission of high-definition video and sensor data.
Frequently Asked Questions
Q1: How is a stable transmission rate guaranteed for the Gigabit Ethernet channel during rotation?
A: We utilize specialized high-frequency slip ring technology, employing independent impedance matching, shielding, and signal integrity optimization designs for the Gigabit Ethernet channel. This ensures compliance with Gigabit Ethernet physical layer specifications during continuous rotation at 250 RPM, guaranteeing stable data transmission.
Q2: Will CAN and 485 fieldbus signals interfere with the Gigabit Ethernet?
A: No. The product effectively isolates electromagnetic interference between different protocol channels through physical isolation, independent shielding layers (for 485), and optimized wiring design. The Gigabit Ethernet channel itself has strong anti-interference capabilities, ensuring the stability of multi-protocol parallel operation.
Q3: How is heat dissipation handled with high-current channels integrated into such a small size?
A: The 25mm aluminum alloy casing itself is an excellent heat sink. Through reasonable current carrying design, low-resistance gold-to-gold contacts, and optimized internal heat conduction paths, we ensure that the temperature rise is controlled under the rated current. For continuous full-load operation, we can provide thermal management recommendations based on the application scenario.

Tag:

RJ45 slip ring,

gigabit ethernet slip ring,

ethernet rotary joint
