2-Channel 2A Stainless Steel Slip Ring with IP67 Protection and Gold-Gold Contacts for Harsh Environments

2-Channel 2A Stainless Steel Slip Ring with IP67 Protection and Gold-Gold Contacts for Harsh Environments
2-Channel 2A Stainless Steel Slip Ring with IP67 Protection and Gold-Gold Contacts for Harsh Environments
2-Channel 2A Stainless Steel Slip Ring with IP67 Protection and Gold-Gold Contacts for Harsh Environments 2-Channel 2A Stainless Steel Slip Ring with IP67 Protection and Gold-Gold Contacts for Harsh Environments 2-Channel 2A Stainless Steel Slip Ring with IP67 Protection and Gold-Gold Contacts for Harsh Environments 2-Channel 2A Stainless Steel Slip Ring with IP67 Protection and Gold-Gold Contacts for Harsh Environments 2-Channel 2A Stainless Steel Slip Ring with IP67 Protection and Gold-Gold Contacts for Harsh Environments 2-Channel 2A Stainless Steel Slip Ring with IP67 Protection and Gold-Gold Contacts for Harsh Environments 2-Channel 2A Stainless Steel Slip Ring with IP67 Protection and Gold-Gold Contacts for Harsh Environments 2-Channel 2A Stainless Steel Slip Ring with IP67 Protection and Gold-Gold Contacts for Harsh Environments

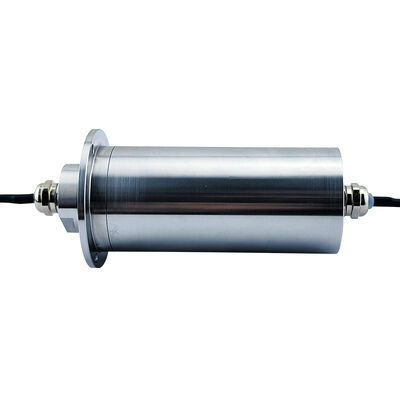

Large Image :  2-Channel 2A Stainless Steel Slip Ring with IP67 Protection and Gold-Gold Contacts for Harsh Environments

Product Details:
Place of Origin: China
Brand Name: GUREN
Certification: CE ROHS
Model Number: SX38FS-2P02-E0221
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: ＄19-199
Packaging Details: Standard/On Request
Delivery Time: 3 weeks ARO
Payment Terms: L/C,D/A,D/P,T/T
Supply Ability: 1K units/week
Contact Now Chat Now

2-Channel 2A Stainless Steel Slip Ring with IP67 Protection and Gold-Gold Contacts for Harsh Environments

Description
Protection Level: IP67 Contact Material: Gold-Gold
Signal Type: Low-frequency Signal Speed: 0-200rpm
Current: 2 Channels Voltage: 0-220V
Highlight:

IP67 Protection Slip Ring

,

Gold-Gold Contacts Slip Ring

,

2-Channel 2A Slip Ring

2-Channel 2A Stainless Steel Slip Ring
This 2-channel, 2A stainless steel slip ring is a miniature component specifically engineered for harsh environments with high protection requirements. Featuring a 304 stainless steel housing for excellent corrosion resistance and mechanical strength, it integrates two independent channels supporting 2A current or signal transmission each. Gold-to-gold contact points ensure high signal fidelity, while supporting 220V operating voltage and rotation speeds up to 300 RPM. With professional waterproof construction achieving IP67 protection, this compact solution delivers reliable power and signal transmission in humid, dusty, corrosive, or outdoor applications.
Key Features
  • All-Stainless Steel Housing: Constructed from 304 stainless steel for exceptional corrosion resistance, acid/alkali resistance, and mechanical durability, ideal for food processing, chemical industries, and marine applications
  • Gold-to-Gold Contacts: Core electrical connections utilize gold-to-gold contact materials for extremely low contact resistance and extended lifespan, ensuring stable transmission of small signals and currents at high rotational speeds
  • IP67 Waterproof & Dustproof: Precision sealing design provides complete dust protection and withstands short-term immersion, making it impervious to splashes, washing, and high-humidity conditions
  • Miniature High-Speed Design: Compact structure achieves 300 RPM rotational speed, balancing small size with dynamic performance for rapid motion requirements in automated equipment
Performance Parameters
Parameter Value
Dielectric strength 300VCA@50Hz,60s
Insulation resistance ≥500MΩ/300VDC
Dynamic resistance change value ＜0.01Ω
Rated voltage 0～220VDC/VAC
Wire Specifications Teflon wire
Wire length Rotor 00mm; stator 00mm (reference value)
Operating temperature -30℃～+70℃
Operating humidity 0～85%RH
Shell material 304 stainless steel casing
Rotational torque 0.05N.m,+0.01N.m/6-way
Service life 2 million rpm
Product Dimensions
2-Channel 2A Stainless Steel Slip Ring with IP67 Protection and Gold-Gold Contacts for Harsh Environments 0
Applications
  • Food & Pharmaceutical Equipment: Rotary filling heads, sensing and power supply for mixing tanks in washdown environments
  • Chemical & Electroplating Equipment: Signal transmission for rotating platforms in corrosive gas or liquid environments
  • Outdoor Security & Communication: Rotating connections for high-definition PTZ cameras and small radar antennas in outdoor settings
  • Marine & Maritime Equipment: Waterproof and corrosion-resistant rotary interfaces for small marine radars and detection instruments
Frequently Asked Questions
What does the IP67 protection rating specifically mean?
In IP67, "6" indicates complete dust protection, and "7" indicates the product can be immersed in water up to 1 meter deep for 30 minutes without being affected. This means the product can withstand heavy rain, washing, and accidental short-term submersion.
What are the advantages of gold-to-gold contact materials compared to gold plating?
Gold-to-gold contact refers to both sliding surfaces being made of gold-based alloy. Its wear resistance, oxidation resistance, and contact stability are far superior to materials with only gold plating. This is particularly suitable for applications requiring long lifespan and high reliability, effectively avoiding performance degradation problems after plating wears off.
Does the stainless steel casing affect heat dissipation?
The thermal conductivity of stainless steel is slightly lower than aluminum alloy, but this product has low power (2 channels × 2A) and low heat generation, so its heat dissipation capacity fully meets requirements. The corrosion resistance and high strength advantages of the stainless steel casing far outweigh its minor impact on heat dissipation.
