10-way 5A Flange-Mounted Slip Ring with Aluminum Alloy Housing for 250 RPM Rotation

10-way 5A Flange-Mounted Slip Ring with Aluminum Alloy Housing for 250 RPM Rotation
10-way 5A Flange-Mounted Slip Ring with Aluminum Alloy Housing for 250 RPM Rotation
10-way 5A Flange-Mounted Slip Ring with Aluminum Alloy Housing for 250 RPM Rotation 10-way 5A Flange-Mounted Slip Ring with Aluminum Alloy Housing for 250 RPM Rotation 10-way 5A Flange-Mounted Slip Ring with Aluminum Alloy Housing for 250 RPM Rotation 10-way 5A Flange-Mounted Slip Ring with Aluminum Alloy Housing for 250 RPM Rotation 10-way 5A Flange-Mounted Slip Ring with Aluminum Alloy Housing for 250 RPM Rotation 10-way 5A Flange-Mounted Slip Ring with Aluminum Alloy Housing for 250 RPM Rotation 10-way 5A Flange-Mounted Slip Ring with Aluminum Alloy Housing for 250 RPM Rotation 10-way 5A Flange-Mounted Slip Ring with Aluminum Alloy Housing for 250 RPM Rotation

Large Image :  10-way 5A Flange-Mounted Slip Ring with Aluminum Alloy Housing for 250 RPM Rotation

Product Details:
Place of Origin: China
Brand Name: GUREN
Certification: ISO9001.CE.ROHS
Model Number: GK2086F-10P05-GRA0050
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: ＄19-199
Packaging Details: Standard/On Request
Delivery Time: 3 weeks ARO
Payment Terms: L/C,D/A,D/P,T/T
Supply Ability: 1K units/week
Contact Now Chat Now

10-way 5A Flange-Mounted Slip Ring with Aluminum Alloy Housing for 250 RPM Rotation

Description
Protection Level: IP51 Contact Material: Precious Metals
Circuit: 10-way 5A Speed: 0-250rpm
Operating Temperature: -30℃- +80℃ Length: 108.6mm
Highlight:

10-way 5A Slip Ring With Flange

,

250 RPM Flange-Mounted Slip Ring

,

Aluminum Alloy Housing Rotary Electrical Connector

10-Way Flange-Mounted Slip Ring with Aluminum Alloy Housing

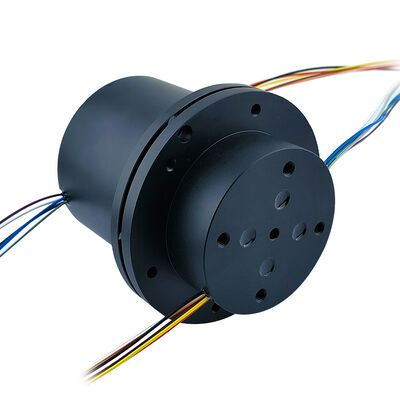

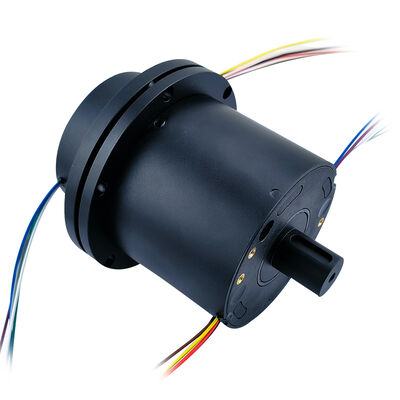

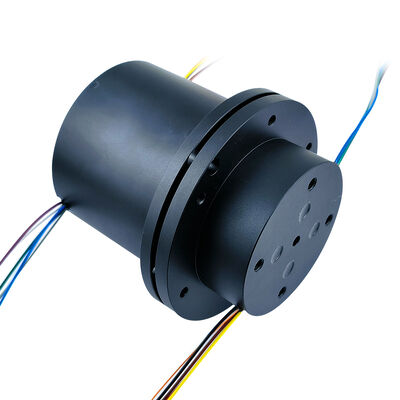

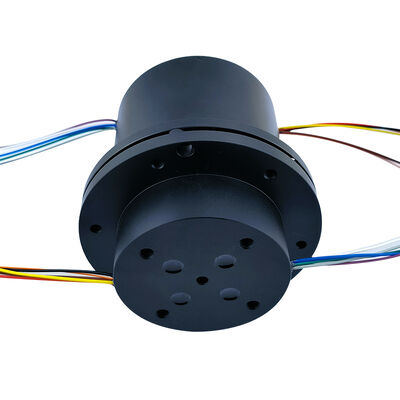

This 10-channel flanged center shaft slip ring features an innovative mechanical structure that integrates flange mounting and central support shaft into a single unit. With a 20mm diameter central shaft that extends by 25mm, it can serve directly as equipment's rotating shaft or provide additional support. The aluminum alloy casing offers IP51 protection, integrates 10 channels of 5A current, supports 220V working voltage, and operates at 250 RPM rotation speed.
Key Features
  • Innovative Integrated Structure: Unique flange-mounted central shaft design combines fixing, rotational support, and electrical transmission functions
  • Compact Multi-Channel Power Transmission: 10 channels with stable 5A current output in limited space
  • High-Speed Stable Operation: Supports 250 RPM for reliable signal and power transmission
  • Convenient Installation: Flange mounting with IP51 protection against dust and vertically dripping water
Performance Parameters
Parameter Value
Dielectric strength 300VCA@50Hz,60s
Insulation resistance ≥500MΩ/300VDC
Dynamic resistance change value ＜0.01Ω
Rated voltage 0～220VDC/VAC
Wire Specifications Teflon wire
Wire length Rotor 300mm; stator 300mm (reference value)
Operating temperature -30℃～+80℃
Operating humidity 0～85%RH
Shell material Aluminum alloy
Rotational torque 0.05N.m,+0.01N.m/6-way
Service life 2 million rpm
Product Dimensions
10-way 5A Flange-Mounted Slip Ring with Aluminum Alloy Housing for 250 RPM Rotation 0
Applications
  • Small automated rotary platforms for multi-station inspection, dispensing, or assembly turntables
  • Compact robotic end-of-arm tooling for power and signal transmission in quick-change devices
  • Semiconductor and electronics manufacturing equipment for wafer or PCB handling mechanisms
  • Packaging and light industrial machinery for small filling, labeling, or sorting modules
Frequently Asked Questions

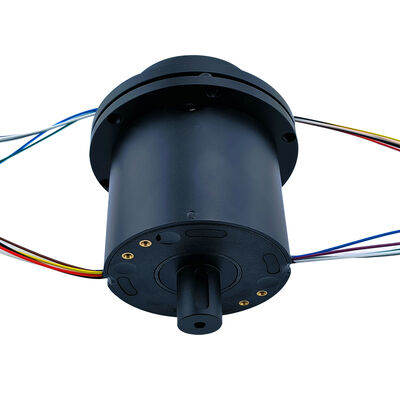

How is the 25mm extension of the central shaft used?
This 25mm extension features a standard keyway or thread and can be used to: connect directly to a coupling as a drive shaft; mount pulleys, gears, and other transmission components; provide direct mounting and positioning surface for rotating components, enhancing integration flexibility.
Can all 10 x 5A channels operate at full load simultaneously?
The electrical design supports all channels operating simultaneously at the rated 5A current. For optimal performance and lifespan, evaluate total power consumption to ensure adequate power supply capacity and heat dissipation conditions.
What environments are suitable for IP51 protection?
IP51 protection provides defense against large solid objects and vertically falling water drops. Suitable for common indoor industrial environments with general dust and occasional dripping water, but not for applications requiring protection against water jets or immersion.
