75-way rotary conductive slip ring with flange design featuring 75-channel ultra-high density, intelligent graded current configuration, and high-speed stable dynamic transmission

75-way rotary conductive slip ring with flange design featuring 75-channel ultra-high density, intelligent graded current configuration, and high-speed stable dynamic transmission
75-way rotary conductive slip ring with flange design featuring 75-channel ultra-high density, intelligent graded current configuration, and high-speed stable dynamic transmission
75-way rotary conductive slip ring with flange design featuring 75-channel ultra-high density, intelligent graded current configuration, and high-speed stable dynamic transmission 75-way rotary conductive slip ring with flange design featuring 75-channel ultra-high density, intelligent graded current configuration, and high-speed stable dynamic transmission 75-way rotary conductive slip ring with flange design featuring 75-channel ultra-high density, intelligent graded current configuration, and high-speed stable dynamic transmission 75-way rotary conductive slip ring with flange design featuring 75-channel ultra-high density, intelligent graded current configuration, and high-speed stable dynamic transmission 75-way rotary conductive slip ring with flange design featuring 75-channel ultra-high density, intelligent graded current configuration, and high-speed stable dynamic transmission 75-way rotary conductive slip ring with flange design featuring 75-channel ultra-high density, intelligent graded current configuration, and high-speed stable dynamic transmission 75-way rotary conductive slip ring with flange design featuring 75-channel ultra-high density, intelligent graded current configuration, and high-speed stable dynamic transmission 75-way rotary conductive slip ring with flange design featuring 75-channel ultra-high density, intelligent graded current configuration, and high-speed stable dynamic transmission

Large Image :  75-way rotary conductive slip ring with flange design featuring 75-channel ultra-high density, intelligent graded current configuration, and high-speed stable dynamic transmission

Product Details:
Place of Origin: China
Brand Name: GUREN
Certification: ISO9001.CE.ROHS
Model Number: SX50-75P-GRA0389
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: ＄19-199
Packaging Details: Standard/On Request
Delivery Time: 3 weeks ARO
Payment Terms: L/C,D/A,D/P,T/T
Supply Ability: 1K units/week
Contact Now Chat Now

75-way rotary conductive slip ring with flange design featuring 75-channel ultra-high density, intelligent graded current configuration, and high-speed stable dynamic transmission

Description
Protection Level: IP51 Contact Material: Precious Metals
Circuit: 5-way 5A/70-way 2A Speed: 0-250rpm
Operating Temperature: -30℃- +80℃ Length: 170.5mm
Highlight:

75-Channel Ultra-High Density Slip Ring With Flange

,

Intelligent Graded Current Configuration Conductive Slip Ring

,

High-Speed Stable Dynamic Transmission Rotary Conductive Slip Ring

75-Way Rotary Conductive Slip Ring

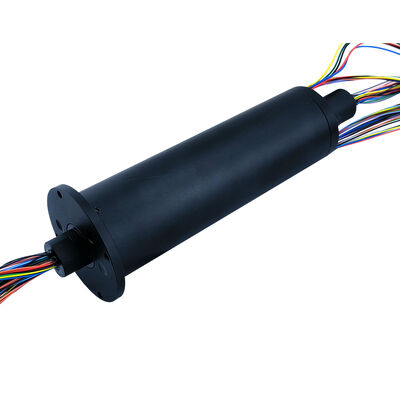

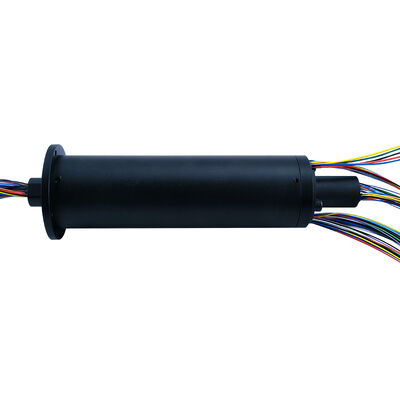

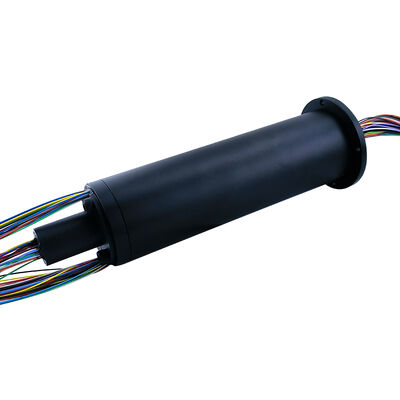

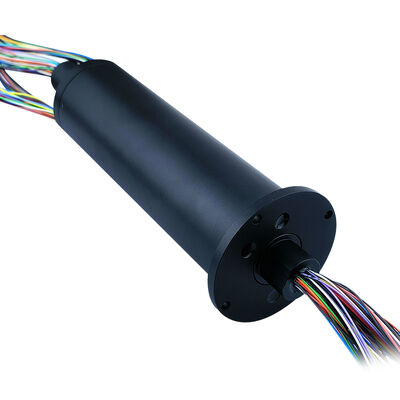

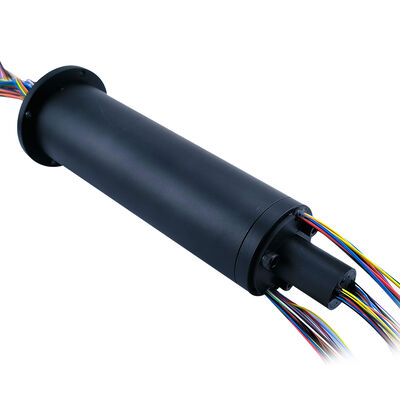

The 75-channel rotary conductive slip ring is a high-density conductive slip ring specifically engineered for complex systems. Featuring an aluminum alloy housing and flange mounting structure, it integrates up to 75 circuit channels within a compact 50mm outer diameter and 185.5mm height. Through intelligent configuration of 5 high-current 5A channels and 70 standard 2A channels, it achieves precise power and signal distribution. Supporting 220V operating voltage and rotational speeds up to 250 RPM, this product serves as a powerful integrated rotary power and signal transmission hub for automated test benches, multi-axis control systems, and high-end integrated equipment.
Key Features
  • 75-Channel Ultra-High Density: Exceptional integration of 75 channels within compact dimensions (φ50 × H185.5mm), significantly optimizing equipment space utilization for highly complex systems.
  • Intelligent Graded Current Configuration: Graded design with 5 channels at 5A (power layer) + 70 channels at 2A (control/sensing layer) enables precise, efficient power distribution for varying load requirements.
  • Robust Flange Structure: Flange mounting design ensures stable installation; compact cylindrical structure (50mm outer diameter) integrates easily into limited equipment spaces with high mechanical reliability.
  • High-Speed Dynamic Transmission: 250 RPM rotational speed capability ensures continuous, stable transmission of both high-power and precision control signals under dynamic rotating conditions.
Performance Parameters
Parameter Value
Dielectric strength 300VCA@50Hz,60s
Insulation resistance ≥500MΩ/300VDC
Dynamic resistance change value ＜0.01Ω
Rated voltage 0～220VDC/VAC
Wire Specifications Teflon wire
Wire length Rotor 300mm; stator 300mm (reference value)
Operating temperature -30℃～+80℃
Operating humidity 0～85%RH
Shell material Aluminum alloy
Rotational torque 0.05N.m,+0.01N.m/6-way
Product Dimensions
75-way rotary conductive slip ring with flange design featuring 75-channel ultra-high density, intelligent graded current configuration, and high-speed stable dynamic transmission 0
Applications
  • Automated Testing Systems: Centralized power supply and signal acquisition for multi-channel data acquisition rotating platforms and integrated test benches in automotive and aerospace components.
  • Multi-Axis Automated Equipment: Power and control signal aggregation for complex rotating modules in semiconductor wafer processing and precision optical inspection equipment.
  • Simulation Equipment: Multi-channel actuator control and sensor feedback for motion systems in flight simulators and driving simulation platforms.
  • Specialized Machinery: Complex rotating experimental devices requiring centralized control of numerous actuators or sensors.
Frequently Asked Questions
Can the 70-way 2A channel be used to transmit sensitive signals such as RS485 and encoder signals?
Absolutely. The 2A current capacity is sufficient for powering small devices, and its channel characteristics are perfectly suited for transmitting various industrial communication signals (such as RS485, CAN) and encoder feedback signals. Better shielding can also be achieved through customization.
Does the product offer higher protection ratings (e.g., IP54)?
The standard version meets typical industrial environment requirements. For higher protection ratings such as dust and water resistance, we can provide customized sealing solutions with IP54 or IP65 ratings. Please specify your requirements during product selection.
How is heat dissipation ensured when all 75 channels are operating at full load simultaneously?
The product structure design fully considers heat dissipation. The aluminum alloy casing serves as an excellent thermal conductor, and the internal layout optimizes heat distribution. For long-term extreme full-load applications, we can provide thermal simulation analysis and customized heat dissipation recommendations based on specific operating conditions.
