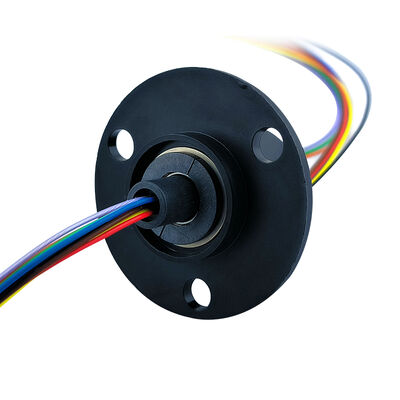

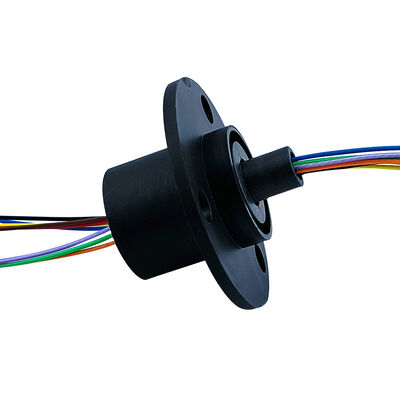

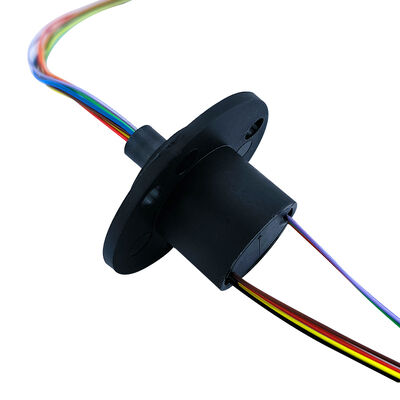

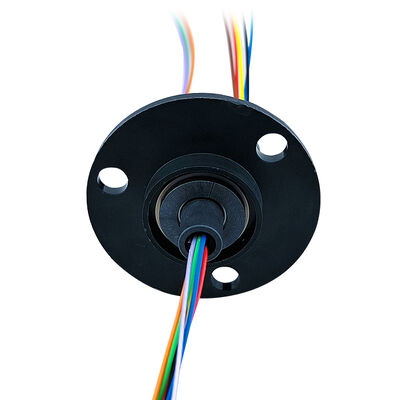

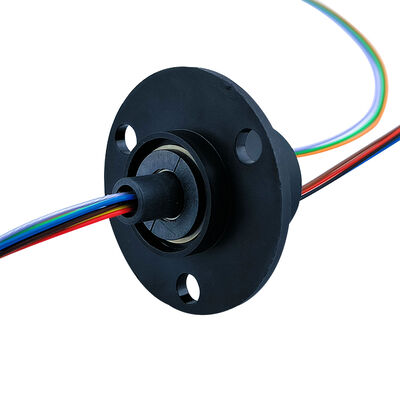

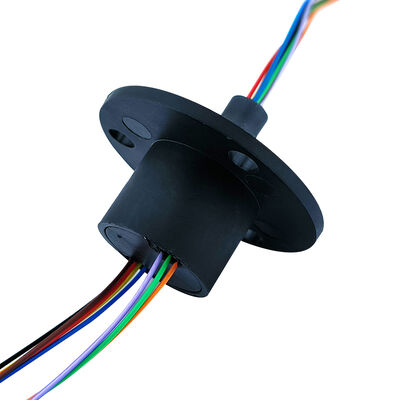

8-Channel 2A Cap-Type Electrical Slip Ring with 22mm Outer Diameter and Gold-to-Gold Contacts

8-Channel 2A Cap-Type Electrical Slip Ring with 22mm Outer Diameter and Gold-to-Gold Contacts
8-Channel 2A Cap-Type Electrical Slip Ring with 22mm Outer Diameter and Gold-to-Gold Contacts
8-Channel 2A Cap-Type Electrical Slip Ring with 22mm Outer Diameter and Gold-to-Gold Contacts 8-Channel 2A Cap-Type Electrical Slip Ring with 22mm Outer Diameter and Gold-to-Gold Contacts 8-Channel 2A Cap-Type Electrical Slip Ring with 22mm Outer Diameter and Gold-to-Gold Contacts 8-Channel 2A Cap-Type Electrical Slip Ring with 22mm Outer Diameter and Gold-to-Gold Contacts 8-Channel 2A Cap-Type Electrical Slip Ring with 22mm Outer Diameter and Gold-to-Gold Contacts 8-Channel 2A Cap-Type Electrical Slip Ring with 22mm Outer Diameter and Gold-to-Gold Contacts 8-Channel 2A Cap-Type Electrical Slip Ring with 22mm Outer Diameter and Gold-to-Gold Contacts 8-Channel 2A Cap-Type Electrical Slip Ring with 22mm Outer Diameter and Gold-to-Gold Contacts

Large Image :  8-Channel 2A Cap-Type Electrical Slip Ring with 22mm Outer Diameter and Gold-to-Gold Contacts

Product Details:
Place of Origin: China
Brand Name: GUREN
Certification: ISO9001.CE.ROHS
Model Number: WX22-8PS
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: ＄19-199
Packaging Details: Standard/On Request
Delivery Time: 3 weeks ARO
Payment Terms: L/C,D/A,D/P,T/T
Supply Ability: 1K units/week
Contact Now Chat Now

8-Channel 2A Cap-Type Electrical Slip Ring with 22mm Outer Diameter and Gold-to-Gold Contacts

Description
Protection Level: IP51 Contact Material: Gold-gold
Circuit: 8-way 2A Speed: 0-150rpm
Operating Temperature: -30℃- +70℃ Length: 24.5mm
Highlight:

22mm Outer Diameter Electrical Slip Ring

,

Gold-to-Gold Contacts Cap-Type Slip Ring

,

8-Channel 2A Flanged Slip Ring

8-Channel 2A Cap-Type Electrical Slip Ring
This 8-channel cap-type electrical slip ring is engineered for compact spaces. Featuring a lightweight engineering plastic housing with an outer diameter of only 22mm, it integrates eight independent 2A current channels within minimal space. The product utilizes gold-to-gold contact materials to ensure high stability of signals and current during rotational transmission. It supports 220V operating voltage and operates at speeds up to 150 RPM. Ideal for applications including small automation equipment, precision instruments, and signal acquisition systems where space constraints and reliability are critical.
Key Features
  • 22mm Ultra-Compact Cap-Type Structure: Extremely compact mounting design with 22mm outer diameter provides highly integrated electrical rotary connection for space-constrained applications such as robot joints and miniature turntables, optimizing internal equipment layout.
  • Gold-to-Gold Contacts Ensure Signal Purity: Core conductive rings and brushes use gold-to-gold contact materials with extremely low contact resistance, excellent oxidation resistance, and wear resistance, ensuring stability and high fidelity for small current, analog, and digital signal transmission.
  • 8-Channel 2A Multifunctional Channels: Eight independent channels, each supporting 2A current, suitable for powering low-power devices like sensors and indicator lights, or transmitting various control and feedback signals.
  • Engineering Plastic Housing for Insulation Safety: High-performance engineering plastic housing provides excellent electrical insulation, mechanical strength, and chemical corrosion resistance, preventing short circuits and enhancing safety in complex electrical environments.
Performance Parameters
Parameter Value
Dielectric strength 300VCA@50Hz,60s
Insulation resistance ≥500MΩ/300VDC
Dynamic resistance change value ＜0.01Ω
Rated voltage 0～220VDC/VAC
Wire Specifications Teflon wire
Wire length Rotor 250mm; stator 250mm (reference value)
Operating temperature -30℃～+70℃
Operating humidity 0～85%RH
Shell material Engineering plastics
Rotational torque 0.05N.m,+0.01N.m/6-way
Service life 2 million rpm
Product Dimensions
8-Channel 2A Cap-Type Electrical Slip Ring with 22mm Outer Diameter and Gold-to-Gold Contacts 0
Applications
  • Micro-robots and dexterous hands: Power supply and signal feedback for collaborative robot joints and surgical instrument drive units.
  • Precision instruments and meters: Electrical connections in rotary sensors, test probes, and optical adjustment mechanisms.
  • Small automation modules: Control and power supply for compact rotary indexing tables, miniature pick-and-place heads, and valve islands.
  • Specialized security and consumer electronics: Internal rotating power supply for small pan-tilt cameras and smart rotating lighting fixtures.
Frequently Asked Questions
What are the advantages of gold-to-gold contacts compared to ordinary gold plating or silver alloys?
Gold-to-gold contacts refer to pairings where both contact surfaces are made of gold-based alloys. They offer extremely strong resistance to environmental corrosion (sulfidation, oxidation), extremely low and stable contact resistance, and a lifespan far exceeding that of surface-plated products. They are particularly suitable for transmitting weak signals or applications requiring long-term maintenance-free operation.
What is the protection rating of the engineering plastic housing? Is it resistant to oil and grease?
Standard models focus on electrical insulation and compact design, providing basic dust and moisture protection. For oily environments, we can use specific grades of oil-resistant engineering plastics (such as PBT, PA) and provide enhanced sealing solutions to achieve higher protection ratings (such as IP54).
Can all 8 x 2A channels be used to transmit RS485 or Ethernet signals?
Yes. The 2A current capacity is more than sufficient for pure signal transmission. For differential signals like RS485, we recommend using twisted-pair cables and ensuring proper shielding. For high-speed signals like Ethernet, special attention should be paid to crosstalk control between wire pairs. We can provide customized cable solutions with independent shielding.
