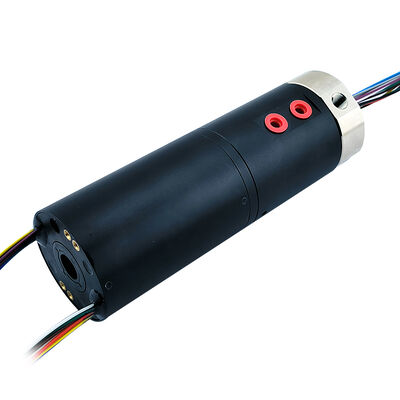

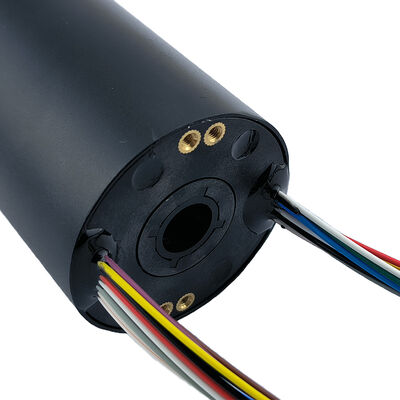

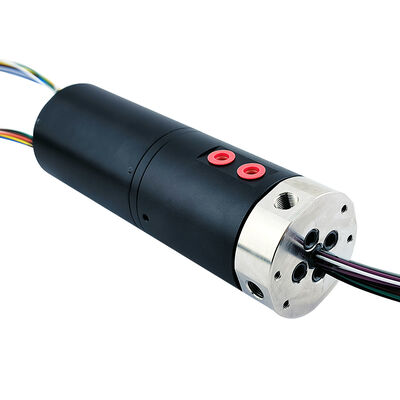

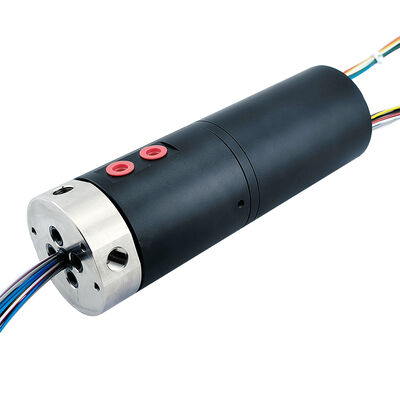

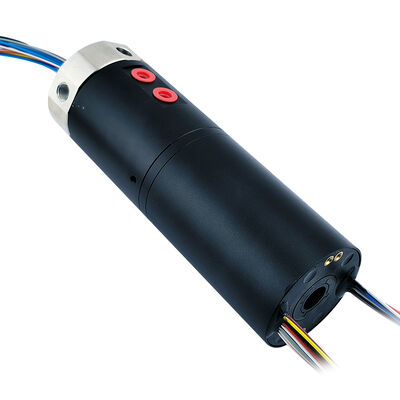

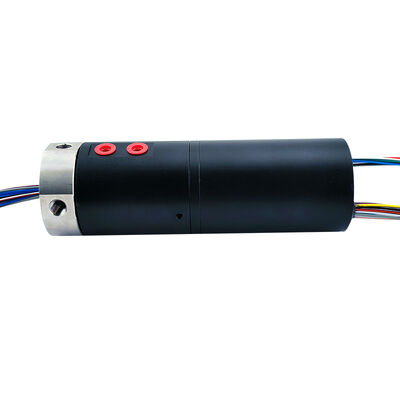

4-channel pneumatic and 24-way 5A electrical slip ring with 48V safety voltage for automation and robotics

4-channel pneumatic and 24-way 5A electrical slip ring with 48V safety voltage for automation and robotics
4-channel pneumatic and 24-way 5A electrical slip ring with 48V safety voltage for automation and robotics
4-channel pneumatic and 24-way 5A electrical slip ring with 48V safety voltage for automation and robotics 4-channel pneumatic and 24-way 5A electrical slip ring with 48V safety voltage for automation and robotics 4-channel pneumatic and 24-way 5A electrical slip ring with 48V safety voltage for automation and robotics 4-channel pneumatic and 24-way 5A electrical slip ring with 48V safety voltage for automation and robotics 4-channel pneumatic and 24-way 5A electrical slip ring with 48V safety voltage for automation and robotics 4-channel pneumatic and 24-way 5A electrical slip ring with 48V safety voltage for automation and robotics 4-channel pneumatic and 24-way 5A electrical slip ring with 48V safety voltage for automation and robotics 4-channel pneumatic and 24-way 5A electrical slip ring with 48V safety voltage for automation and robotics 4-channel pneumatic and 24-way 5A electrical slip ring with 48V safety voltage for automation and robotics

Large Image :  4-channel pneumatic and 24-way 5A electrical slip ring with 48V safety voltage for automation and robotics

Product Details:
Place of Origin: china
Brand Name: GuRen
Certification: ISO9001.CE.RoHS
Model Number: Q4P01-24P05-GRA0534
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: ＄19-199
Packaging Details: Standard/On Request
Delivery Time: 3 weeks ARO
Payment Terms: L/C,D/P,T/T
Supply Ability: 1K units/week
Contact Now Chat Now

4-channel pneumatic and 24-way 5A electrical slip ring with 48V safety voltage for automation and robotics

Description
Air Channel: 4 Channel Applicable Trachea: 6-8mm
Protection Level: IP51 Number Of Circuits: 24-way 5A
Inner Diameter: Solid Outer Diameter: 56mm
Highlight:

4-channel pneumatic slip ring

,

24-way 5A electrical rotary joint

,

48V safety voltage combination slip ring

4-Channel Pneumatic and Electrical Slip Ring
This 4-channel pneumatic and electrical combination slip ring is engineered for precision automation and safety voltage applications. Featuring an aluminum alloy housing with IP51 protection rating, it integrates four G1/8" pneumatic channels and 24 independent 5A electrical circuits. The electrical system utilizes a 48V safety voltage design and supports rotational speeds up to 200 RPM, delivering a highly integrated, safe, and reliable rotary connection solution for automation modules, collaborative robots, and safety-sensitive equipment requiring simultaneous multi-channel pneumatic control and centralized low-voltage power distribution.
Key Features
  • High-Density Pneumatic and Electrical Integration: Simultaneously transmits 4 independent pneumatic lines and 24 electrical circuits within a single device, significantly reducing pipeline complexity in rotary joints and forming the core of compact multi-actuator units.
  • 24-Channel 5A Centralized Power Distribution: Provides up to 24 channels of stable 5A/48V output with substantial total power capacity, enabling centralized and safe power supply for multiple sensors, solenoid valves, and small servo units.
  • 48V Safe Low-Voltage Design: Utilizes 48V DC safety voltage to reduce electrical risks and simplify insulation design, making it ideal for collaborative robots, medical equipment, and applications with stringent personal safety requirements.
  • Industrial-Grade Dynamic Reliability: Rated for 200 RPM rotational speed to meet most automation cycle demands, with IP51 protection effectively preventing dust and water droplet ingress for stable, durable operation in typical industrial environments.
Technical Parameters
Electrical Parameters Gas Parameters
Dielectric strength: 500VCA@50Hz,60s Number of trachea: 4 in 4 out
Insulation resistance: ≥1000MΩ/500VDC Pressure: -99KPa-0.8MPa or vacuum
Dynamic resistance change value: ＜10mΩ Rotational torque: <0.3N.m
Rated voltage: 0～48VDC/VAC Rotation speed: 200rpm
Wire Specifications: Teflon wire (current-dependent) Shell material: Aluminum Alloy
Wire length: Default 300mm (Customizable) Temperature: -30℃～+80℃
Contact material: Precious metal contacts Operating humidity: 0～85%RH
Protection level: IP51
Technical Drawings
4-channel pneumatic and 24-way 5A electrical slip ring with 48V safety voltage for automation and robotics 0
Application Scenarios
  • Collaborative robot end-of-arm tooling: Complex EOAT integrating pneumatic gripping, electric screwdriving, vision lighting, and multi-sensor feedback systems.
  • Precision automated rotary modules: Electro-pneumatic control hubs for multi-station inspection, dispensing, or assembly units requiring simultaneous power and pneumatic transmission.
  • Semiconductor and electronics assembly equipment: Rotary components in precision placement heads and wafer handling arms requiring multiple signal and pneumatic controls.
  • Safety-sensitive laboratory equipment: Rotary mechanisms in biopharmaceutical and laboratory automation applications requiring low-voltage power supply and pneumatic assistance.
Frequently Asked Questions
Q1: Is the 48V voltage direct current (DC) or alternating current (AC)?
This product is standard designed for 48V direct current (DC) voltage, which is a common safe control voltage in industrial automation. Custom solutions are available for AC or other voltage levels.
Q2: What is the maximum working pressure that the 4-channel air passages can withstand?
The standard model using G1/8" interfaces can typically withstand common pneumatic pressures of around 0.8MPa. Please refer to the detailed specifications for the specific maximum working pressure, or contact us for customized solutions based on your application requirements.
Q3: Can the 24-channel 5A outputs operate at full load continuously? How is heat dissipation ensured?
The electrical design supports continuous full-load operation. The aluminum alloy casing provides the main heat dissipation. When planning your system, it is recommended to ensure good ventilation for the equipment. For continuous full-load applications in high-temperature environments or enclosed spaces, please contact us for a specific thermal assessment.
