650A Peak Current Liquid Slip Ring with 316L Stainless Steel Housing and Silver-Plated Copper Conductive Pillars

650A Peak Current Liquid Slip Ring with 316L Stainless Steel Housing and Silver-Plated Copper Conductive Pillars
650A Peak Current Liquid Slip Ring with 316L Stainless Steel Housing and Silver-Plated Copper Conductive Pillars
650A Peak Current Liquid Slip Ring with 316L Stainless Steel Housing and Silver-Plated Copper Conductive Pillars 650A Peak Current Liquid Slip Ring with 316L Stainless Steel Housing and Silver-Plated Copper Conductive Pillars 650A Peak Current Liquid Slip Ring with 316L Stainless Steel Housing and Silver-Plated Copper Conductive Pillars 650A Peak Current Liquid Slip Ring with 316L Stainless Steel Housing and Silver-Plated Copper Conductive Pillars 650A Peak Current Liquid Slip Ring with 316L Stainless Steel Housing and Silver-Plated Copper Conductive Pillars 650A Peak Current Liquid Slip Ring with 316L Stainless Steel Housing and Silver-Plated Copper Conductive Pillars 650A Peak Current Liquid Slip Ring with 316L Stainless Steel Housing and Silver-Plated Copper Conductive Pillars

Large Image :  650A Peak Current Liquid Slip Ring with 316L Stainless Steel Housing and Silver-Plated Copper Conductive Pillars

Product Details:
Place of Origin: china
Brand Name: GuRen
Certification: ISO9001.CE.RoHS
Model Number: W1M650ST
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: ＄19-199
Packaging Details: Standard/On Request
Delivery Time: 3 weeks ARO
Payment Terms: L/C,D/P,T/T
Supply Ability: 1K units/week
Contact Now Chat Now

650A Peak Current Liquid Slip Ring with 316L Stainless Steel Housing and Silver-Plated Copper Conductive Pillars

Description
Product Height: 118mm Protection Level: IP51
Number Of Circuits: Single Channel Outer Diameter: 45mm
Peak Current: 650A Speed: 200rpm
Highlight:

650A Peak Current Liquid Slip Ring

,

316L Stainless Steel Liquid Slip Ring

,

Silver-Plated Copper Liquid Slip Ring

650A High Current Liquid Slip Ring with 316L Stainless Steel Housing

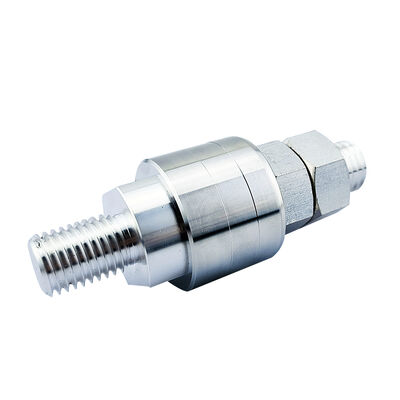

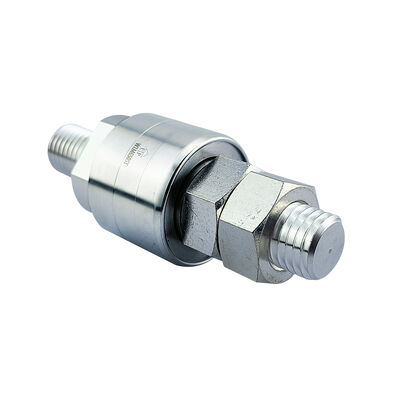

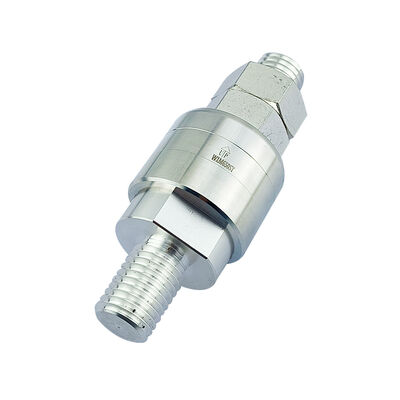

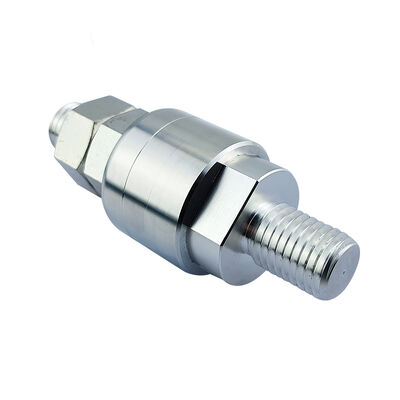

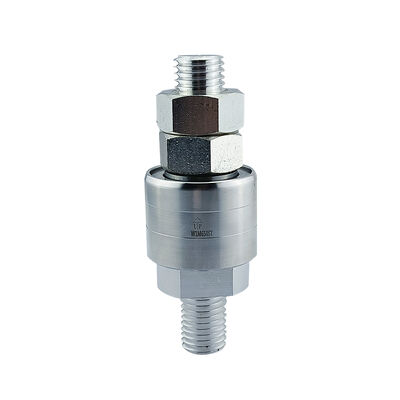

This 650A high-current liquid slip ring is engineered for ultra-large-scale current transmission applications. Featuring a 316L medical-grade stainless steel housing and silver-plated copper conductive pillars, it delivers extremely low resistivity and superior corrosion resistance. The single-channel design supports 500A standard current capacity with 650A peak capacity, operating at up to 400V and maximum speeds of 200rpm. Ideal for heavy industrial applications requiring continuous rotational transmission of ultra-high current, including electroplating, electrolysis, high-power welding, and rotary testing benches.
Key Features
  • 500A-650A High Current Capacity: Single channel supports 500A continuous current with 650A peak capacity for ultra-high power equipment
  • 316L Stainless Steel Military-Grade Housing: Exceptional corrosion resistance against harsh industrial environments including electroplating solutions, salt spray, and acid/alkali gases
  • Silver-Plated Copper Conductive Pillars: Significantly reduced contact resistance minimizes heat generation and maximizes power transmission efficiency
  • High-Speed High-Current Compatibility: Stable performance carrying hundreds of amperes at 200rpm for dynamic high-power operations
Technical Specifications
Product Attribute Parameter Value
Shell Material 316L Stainless Steel
Ambient Temperature -30°C to +60°C
Rotation Speed 0-200 rpm
Use Current ≤500A
Peak Current 650A
Use Voltage 0-400V
Wire Specifications M20*2.5 Studs
Protection Level IP51
Technical Drawings
650A Peak Current Liquid Slip Ring with 316L Stainless Steel Housing and Silver-Plated Copper Conductive Pillars 0
Application Scenarios
  • Plating and Electrolysis Equipment: Current input for rotating cathodes/anodes in chromium plating, copper plating, and non-ferrous metal electrolysis
  • High-Power Welding Turntables: Welding power transmission for rotating fixtures in automated welding stations
  • Electroslag Remelting and Smelting Equipment: High-current feeding for electrode rotating mechanisms in large electroslag furnaces
  • Wind Power Generation and Ship Propulsion: Rotary power supply for ultra-high-power motor rotor excitation or heating devices
Frequently Asked Questions
Q1: What is the temperature rise of the slip ring under a 500A current? Does it require additional cooling?
Under rated 500A conditions at 25℃ ambient temperature and 200rpm speed, the surface temperature rise is typically controlled within 40K (surface temperature ≤65℃). Forced cooling is generally not required, but installation in well-ventilated locations is recommended. For extended operation near 650A peak current, contact us to assess heat dissipation solutions.
Q2: What are the advantages of 316L stainless steel compared to ordinary carbon steel or aluminum alloy?
316L contains molybdenum, providing superior resistance to pitting corrosion and chloride ion corrosion compared to 304 stainless steel. Its non-magnetic properties prevent eddy current heating under high current, making it ideal for highly corrosive environments such as electroplating and chemical processing.
Q3: Does the product support multi-channel or higher current customization?
Yes, we provide 2-channel, 3-channel, and multi-channel high-current slip rings with single-channel currents expandable to 1000A or higher. Please provide your specific parameters (current, voltage, number of channels, speed, environment) for customized solutions.
