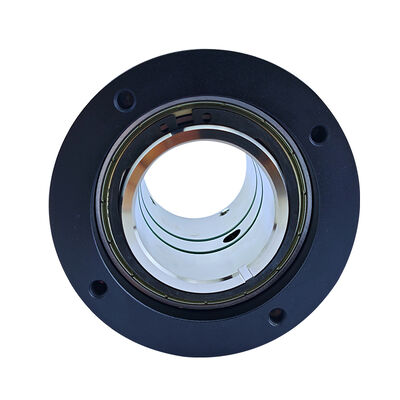

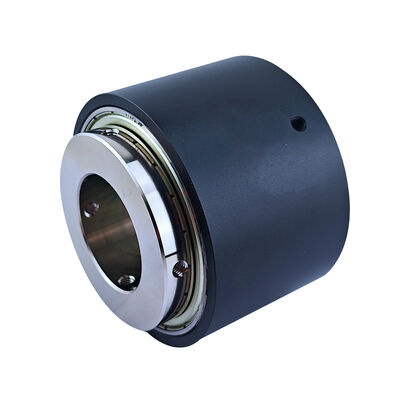

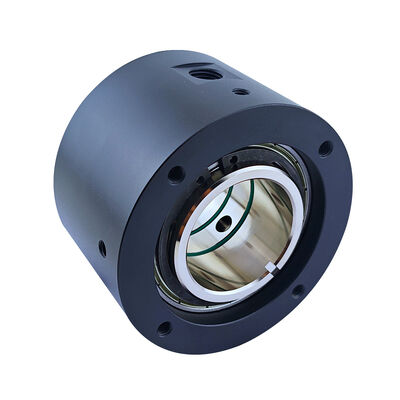

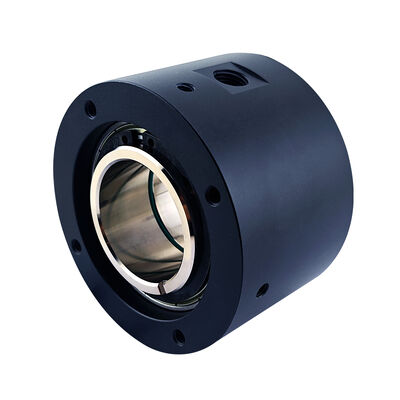

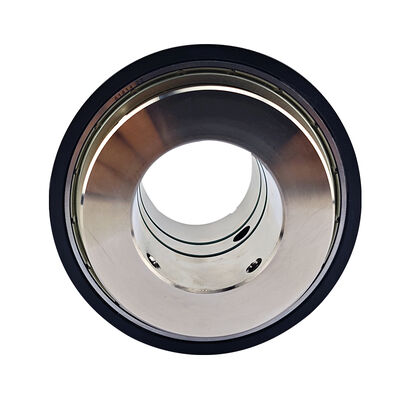

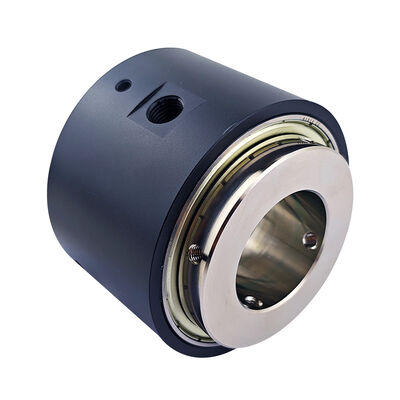

1000rpm High-Speed Air Slip Ring with 1MPa High Pressure and One Inlet One Outlet Design for Dynamic Pneumatic Control

1000rpm High-Speed Air Slip Ring with 1MPa High Pressure and One Inlet One Outlet Design for Dynamic Pneumatic Control
1000rpm High-Speed Air Slip Ring with 1MPa High Pressure and One Inlet One Outlet Design for Dynamic Pneumatic Control
1000rpm High-Speed Air Slip Ring with 1MPa High Pressure and One Inlet One Outlet Design for Dynamic Pneumatic Control 1000rpm High-Speed Air Slip Ring with 1MPa High Pressure and One Inlet One Outlet Design for Dynamic Pneumatic Control 1000rpm High-Speed Air Slip Ring with 1MPa High Pressure and One Inlet One Outlet Design for Dynamic Pneumatic Control 1000rpm High-Speed Air Slip Ring with 1MPa High Pressure and One Inlet One Outlet Design for Dynamic Pneumatic Control 1000rpm High-Speed Air Slip Ring with 1MPa High Pressure and One Inlet One Outlet Design for Dynamic Pneumatic Control 1000rpm High-Speed Air Slip Ring with 1MPa High Pressure and One Inlet One Outlet Design for Dynamic Pneumatic Control 1000rpm High-Speed Air Slip Ring with 1MPa High Pressure and One Inlet One Outlet Design for Dynamic Pneumatic Control

Large Image :  1000rpm High-Speed Air Slip Ring with 1MPa High Pressure and One Inlet One Outlet Design for Dynamic Pneumatic Control

Product Details:
Place of Origin: china
Brand Name: GuRen
Certification: ISO9001.CE.RoHS
Model Number: Q1P02GS-4599-A6419
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: ＄19-199
Packaging Details: Standard/On Request
Delivery Time: 4 weeks ARO
Payment Terms: L/C,D/P,T/T
Supply Ability: 1K units/week
Contact Now Chat Now

1000rpm High-Speed Air Slip Ring with 1MPa High Pressure and One Inlet One Outlet Design for Dynamic Pneumatic Control

Description
Speed: 1000rpm Service Life: 60 Million Revolutions
Inner Diameter: 45cm Outer Diameter: 99cm
Air Pressure: -90KPa-1MPa Temperature: -30℃～+100℃

One Inlet One Outlet High-Speed Air Slip Ring
Speed: 1000rpm, IP40 Protection Rating
Product Overview
This high-speed air slip ring features a single inlet and single outlet design, specifically engineered for ultra-high-speed applications. Constructed with a black aluminum alloy housing, it offers a compact structure with a 45mm inner diameter and 99mm outer diameter. Equipped with a G1/4" interface and dual air path configuration (one inlet, one outlet), it is designed for transmitting compressed air with pressure capacity up to 1MPa and operational speeds reaching 1000rpm. The unit also features an IP40 protection rating, making it ideal for dynamic air supply in high-speed spindles, centrifuges, turbomachinery, and similar equipment.
Product Features
  • 1000rpm Ultra-High Speed Capacity: Breaks through conventional air slip ring speed limitations, optimized for high-speed rotation scenarios including spindles and high-speed indexing tables
  • One Inlet, One Outlet Independent Channel: Single-channel inlet/outlet design creates a complete air circuit for continuous air supply applications
  • G1/4" Standard Interface: Universal threaded interface provides excellent compatibility with various pneumatic hoses and quick-connect fittings
  • 1MPa High Pressure Bearing Capacity: Supports maximum working pressure of 1MPa for reliable pneumatic power at high speeds
  • Compact and Lightweight Design: Black aluminum alloy housing with compact structure and low rotational inertia minimizes impact on high-speed drive systems
Technical Specifications
Specifications Value
Speed 1000rpm
Working Life 60 million revolutions
Maximum Air Pressure 1MPa
Operating Temperature -30℃ to +100℃
Operating Humidity 0-85%RH
Protection Level IP51
Shell Material Aluminum Alloy
Product Dimensions
1000rpm High-Speed Air Slip Ring with 1MPa High Pressure and One Inlet One Outlet Design for Dynamic Pneumatic Control 0
Applications
  • High-speed Electric Spindle: Provides central airflow to machining center spindles for chip removal from tools and workpieces
  • High-speed Indexing Table: Powers pneumatic clamps or locating pins on rotary tables
  • Centrifugal Separator: Provides gas protection or pneumatic braking for rotating components of high-speed centrifuges
  • Turbine Machinery Testing: Applies pneumatic loads to high-speed rotating turbine blades or impellers
Frequently Asked Questions
Q1: What is the lifespan of the seal at 1000 rpm?
Under rated pressure (1 MPa) and speed (1000 rpm), using high-performance sealing materials, the designed lifespan is typically 20-30 million revolutions. This is equivalent to approximately 330-500 hours of continuous operation at 1000 rpm. In practical applications, intermittent operation is common, which can significantly extend the lifespan.
Q2: Can the one-in-one-out channel be used for vacuum adsorption?
Yes. This structure is also suitable for vacuum (negative pressure) environments. One interface connects to a vacuum source, and the other interface can connect to a vacuum rupture gas source or directly connect to a suction cup to achieve workpiece adsorption under high-speed rotation.
