10-channel flange slip ring with engineering plastic PBT for drone and gimbal systems

10-channel flange slip ring with engineering plastic PBT for drone and gimbal systems
10-channel flange slip ring with engineering plastic PBT for drone and gimbal systems
10-channel flange slip ring with engineering plastic PBT for drone and gimbal systems 10-channel flange slip ring with engineering plastic PBT for drone and gimbal systems 10-channel flange slip ring with engineering plastic PBT for drone and gimbal systems 10-channel flange slip ring with engineering plastic PBT for drone and gimbal systems 10-channel flange slip ring with engineering plastic PBT for drone and gimbal systems 10-channel flange slip ring with engineering plastic PBT for drone and gimbal systems 10-channel flange slip ring with engineering plastic PBT for drone and gimbal systems 10-channel flange slip ring with engineering plastic PBT for drone and gimbal systems

Large Image :  10-channel flange slip ring with engineering plastic PBT for drone and gimbal systems

Product Details:
Place of Origin: China
Brand Name: GUREN
Certification: ISO9001.CE.ROHS
Model Number: WX22-2P10
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: ＄19-199
Packaging Details: Standard/On Request
Delivery Time: 3 weeks ARO
Payment Terms: L/C,D/A,D/P,T/T
Supply Ability: 1K units/week
Contact Now Chat Now

10-channel flange slip ring with engineering plastic PBT for drone and gimbal systems

Description
Contact Material: Precious Metals Length: 39.6mm
Operating Temperature: -30℃- +80℃ Protection Level: IP51
Circuit: 1A/5A Speed: 0-250rpm
Outer Diameter: 22mm Rated Voltage: 0～24VDC/VAC
Highlight:

10-channel flange slip ring for drones

,

PBT engineering plastic slip ring

,

flange slip ring for gimbal systems

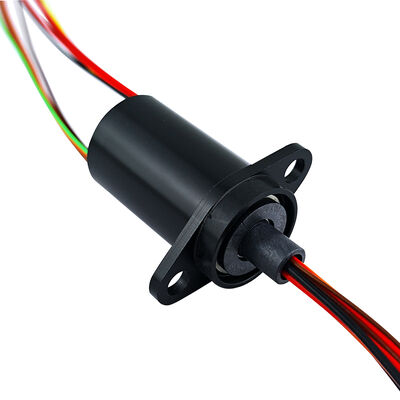

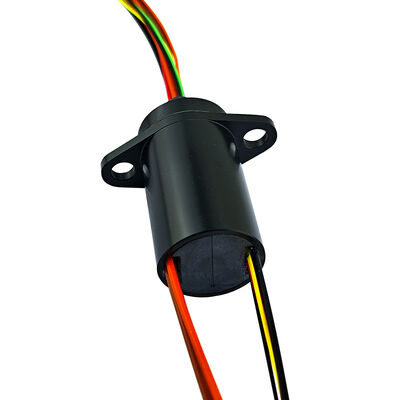

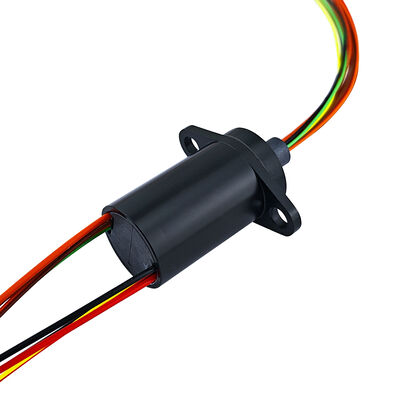

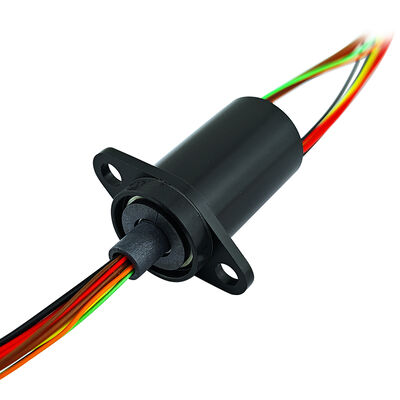

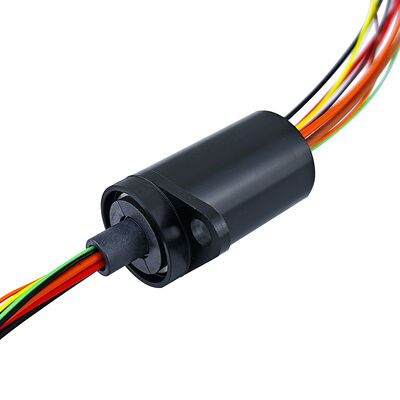

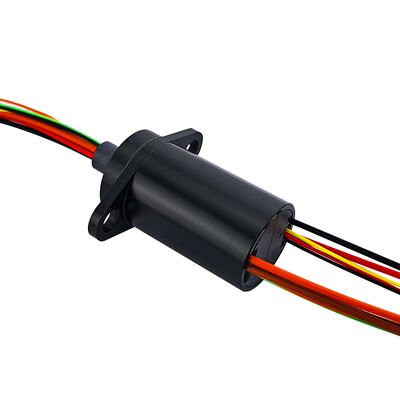

This product is a 10-channel flange-type slip ring designed specifically for miniaturized precision equipment. It features a high-performance PBT engineering plastic housing and an integrated flange structure, with an outer diameter of only 22mm. Within its compact body, it integrates a combination of 4 high-current channels (5A) and 6 standard signal channels (1A). The product supports 24V operating voltage, is designed for a speed of 250rpm, has an IP51 protection rating, a rotor cable length of 800mm, and a stator cable length of 200mm. It provides a highly insulated, long-life hybrid rotary power and signal transmission solution for small robots, drone gimbals, security monitoring systems, and precision instruments.

Key Features
  • 10-Channel Mixed Current Configuration: Offers a combination of 4 high-current (5A) channels and 6 standard (1A) signal channels, simultaneously meeting the needs of high-power load power supply and multi-channel sensitive signal transmission, enabling multi-purpose functionality.
  • 22mm Ultra-Miniature Flange Structure: With an ultra-compact size of only 22mm outer diameter and an integrated flange mounting design, it can be directly fixed to the device end face, easily integrating into the interior of devices with millimeter-level spaces, such as drone gimbals and robotic arm joints.
  • PBT Engineering Plastic High-Insulation Housing: Made of PBT (Polybutylene Terephthalate), it possesses excellent electrical insulation, dimensional stability, and chemical corrosion resistance, crucial for ensuring the electrical safety and long-term reliability of miniature devices.
  • IP51 Dustproof Sealing Protection: With an IP51 protection rating, it effectively prevents dust intrusion and resists vertical dripping water, adapting to various industrial and outdoor environments.
  • Differentiated Cable Length Design: The differentiated configuration of 800mm rotor cable and 200mm stator cable greatly facilitates wiring management on both rotating and stationary ends, simplifying the installation process.
  • 250rpm dynamic stability: Achieves smooth operation at 250rpm in a compact structure, combined with precision bearings and low torque design, resulting in extremely low frictional resistance and smooth rotation.
Performance Parameters
Parameter Value
Dielectric strength 200VCA@50Hz,60s
Insulation resistance ≥500MΩ/200VDC
Dynamic resistance change value ＜0.01Ω
Rated voltage 0～24VDC/VAC
Wire Specifications Teflon wire
Wire length Rotor 800mm; stator 200mm (reference value)
Operating temperature -30℃～+80℃
Operating humidity 0～85%RH
Shell material Engineering plastics
Rotational torque 0.05N.m,+0.01N.m/6-way
Service life 2 million rpm
Product Dimensions
Detailed technical drawing showing dimensions of the 2-way 10A flange conductive slip ring with engineering plastic housing and 22mm outer diameter
Applications
  • Drone and Gimbal Systems: Provides rotational connections for motor power supply (5A channels) and camera control signal transmission (1A channel) of three-axis drone gimbals.
  • Security Monitoring Gimbals: Provides power supply and synchronous transmission of video/control signals for rotating high-definition cameras.
  • Miniature Robot Joints: Provides integrated connections for joint drive and position/torque sensor signals for collaborative robots and SCARA robots.
  • Precision Testing Instruments: Provides multi-channel signal acquisition and sensor power supply for rotating testing platforms and spectrometers.
  • Smart Home Devices: Provides power and signal connections for miniature rotating modules such as rotating smart cameras and automatic door locks.
Frequently Asked Questions

Q1: Can the 4-channel 5A and 6-channel 1A channels be used interchangeably?

A: Absolutely. All channels are electrically independent. You can use the 5A channels for high-power loads such as motors and electromagnets, and the 1A channels for signal transmission from sensors and encoders, without interference.

Q2: What are the advantages of PBT housings compared to aluminum alloy housings?

A: In miniaturized and precision applications, PBT offers significant advantages:

Excellent electrical insulation: It is an insulator itself, requiring no additional insulation treatment.

Lightweight: Lower density than aluminum alloy, reducing rotational inertia.

Corrosion resistance: Resistant to moisture and chemical corrosion.

Cost-effectiveness: Provides higher cost-effectiveness while meeting performance requirements.

Q3: What environments is the IP51 protection rating suitable for?

A: IP51 means it effectively prevents dust intrusion (Level 5) and withstands vertically falling water droplets (Level 1). It is suitable for various scenarios such as outdoor drone operations, security monitoring, and industrial automation workshops, but not for prolonged immersion in water or high-pressure water jet washing environments.

Q4: Can the rotor cable length of 800mm and stator cable length of 200mm be customized?

A: Yes. The standard configuration is optimized for typical installation scenarios. If you have specific length requirements, we can provide customized cable length services.
