| हवाई चैनल: | 1 चैनल | इंटरफ़ेस विनिर्देश: | जी1/4" |
|---|---|---|---|
| लागू श्वासनली: | 8 मिमी | चौड़ाई: | 120 मिमी |
| लंबाई: | 142 मिमी | सुरक्षा स्तर: | IP51 |

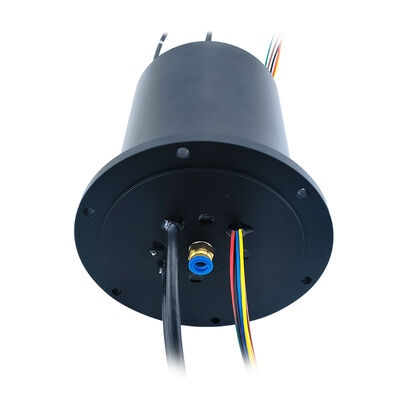

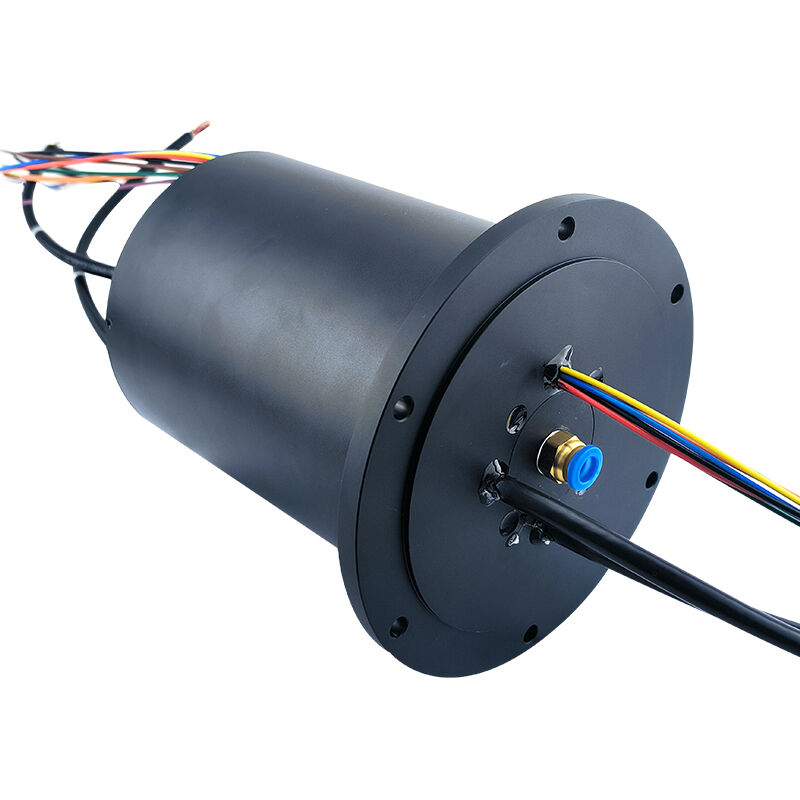

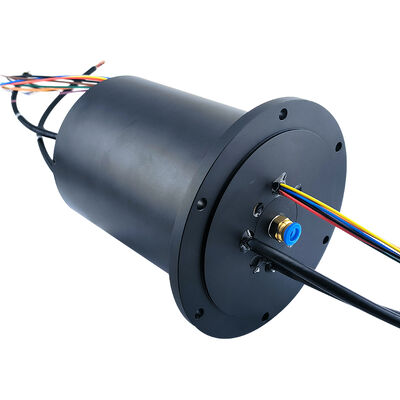

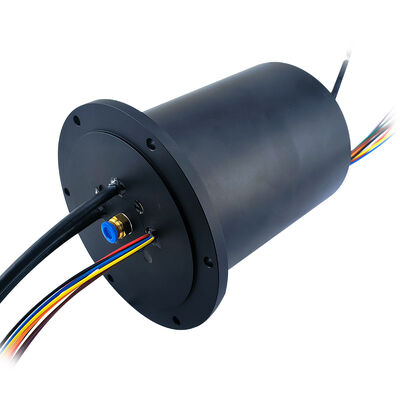

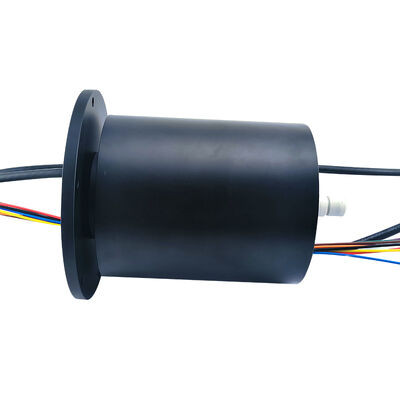

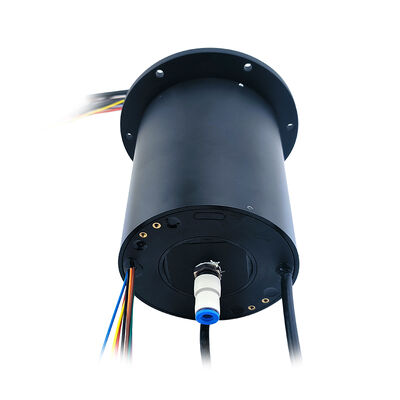

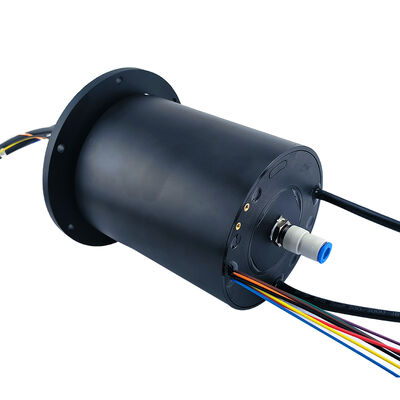

Three-in-one high-efficiency integration: A single device simultaneously transmits pneumatic, electrical, and signal signals, significantly simplifying the rotary end system structure, reducing external wiring, and improving equipment reliability.
Powerful load and signal capabilities: Provides 8 high-current channels of 10A to drive various actuators; equipped with 16 shielded signal channels to ensure interference-free transmission of sensitive control signals.
Compact and robust structural design: Utilizes an aluminum alloy housing, combining excellent mechanical strength and heat dissipation performance; IP51 protection rating effectively resists dust intrusion and vertical water droplets.
Designed for precision control: Optimized speed of 10RPM and support for 220V operating voltage make it outstanding in automation applications requiring low speed, high torque, and precise control.
| Electrical Parameters | Gas Parameters | ||
|---|---|---|---|
| Dielectric strength | 500VCA@50Hz,60s | Number of trachea | 1 in 1 out |
| Insulation resistance | ≥500MΩ/500VDC | Pressure | -99KPa-1MPa or vacuum |
| Dynamic resistance change value | ＜10mΩ | Rotational torque | <0.3N.m |
| Rated voltage | 0～220VDC/VAC | Rotation speed | 10rpm |
| Wire Specifications | Teflon wire (current-dependent) | Shell material | Aluminum Alloy |
| Wire length | Default 300mm (Customizable) | Temperature | -30℃～+80℃ |
| Contact material | Precious metal contacts | Operating humidity | 0～85%RH |
| Protection level | IP51 | ||
Automated welding and machining equipment: Provides synchronous power, control signals, and pneumatic clamping power to rotary tables.
Robot end effectors: Drive and control complex rotary fixtures or tools.
Packaging and filling machinery: Achieves synchronization of electrical and pneumatic actions at rotary workstations.
Precision testing and measurement turntables: Transmit sensor power, data signals, and necessary cleaning air paths.
Q1: What is the maximum air pressure that the air passage can support?
A: For specific pressure ratings, sealing materials, and interface types of the air passage, please refer to the detailed product specification sheet or contact our technical support. We will provide accurate parameters based on your specific operating conditions.
Q2: Does the 16-channel signal support high-speed communication protocols such as Ethernet or USB?
A: The signal channels of this product are designed specifically for control signals (such as I/O, analog signals, RS485, etc.). For high-speed data protocols, special design and verification are required. Please inform our engineers of your specific needs in advance when selecting a model.
Q3: Can the 10RPM speed be adjusted according to the application?
A: 10RPM is the optimized standard design speed for this product. If you have specific speed requirements, we can provide customized solutions to meet the performance needs of different application scenarios.
