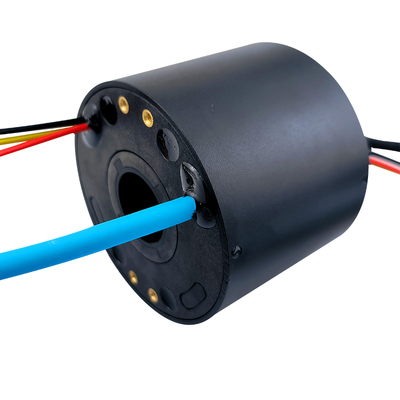

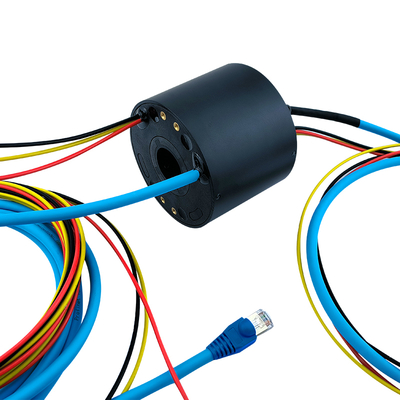

3-way 20A circuit and Ethernet combination slip ring Gigabit network transmission

3-way 20A circuit and Ethernet combination slip ring Gigabit network transmission
3-way 20A circuit and Ethernet combination slip ring Gigabit network transmission
3-way 20A circuit and Ethernet combination slip ring Gigabit network transmission 3-way 20A circuit and Ethernet combination slip ring Gigabit network transmission 3-way 20A circuit and Ethernet combination slip ring Gigabit network transmission 3-way 20A circuit and Ethernet combination slip ring Gigabit network transmission 3-way 20A circuit and Ethernet combination slip ring Gigabit network transmission 3-way 20A circuit and Ethernet combination slip ring Gigabit network transmission

Large Image :  3-way 20A circuit and Ethernet combination slip ring Gigabit network transmission

Product Details:
Place of Origin: China
Brand Name: GUREN
Certification: ISO9001.CE.ROHS
Model Number: GK2586-3P20-1EP8-GRA0620
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: ＄19-199
Packaging Details: Standard/On Request
Delivery Time: 3 weeks ARO
Payment Terms: L/C,D/A,D/P,T/T
Supply Ability: 1K units/week
Contact Now Chat Now

3-way 20A circuit and Ethernet combination slip ring Gigabit network transmission

Description
Outer Diameter: 86mm Inner Diameter: 25.4mm
Contact Material: Precious Metals Single Channel Current: 20A
Circuit: 3-way Speed: 10rpm
Network Channel: 1 Bandwidth: Gigabit Ethernet
Highlight:

3-way 20A circuit slip ring

,

Ethernet slip ring Gigabit transmission

,

Through bore electrical slip ring

3-Way 20A Circuit and Ethernet Combination Slip Ring - Gigabit Network Transmission
This hybrid slip ring combines three 20A current paths with one shielded Gigabit Ethernet broadband connection, enabling simultaneous transmission of network signals and power. Designed for 10 rpm operation with IP51 rating, it's ideal for high-precision equipment requiring both network data and current transmission.
Key Features
  • Three 20A high-current channels for reliable power transmission
  • Integrated shielded Gigabit Ethernet channel for high-speed network communication
  • Optimized for 10 rpm operation in precision applications
  • IP51-rated protection against dust and limited water exposure
  • Robust aluminum alloy construction for industrial environments
  • Designed for rotating camera systems, robotic joints, and precision instrumentation
Performance Parameters
Parameter Value
Dielectric strength 300VCA@50Hz,60s
Insulation resistance ≥500MΩ/300VDC
Dynamic resistance change value ＜0.01Ω
Rated voltage 0～220VDC/VAC
Wire Specifications AWG14# Teflon wire
Wire length Rotor 100mm; stator 3000mm (reference value)
Operating temperature -30℃～+80℃
Operating humidity 0～85%RH
Protection level IP51
Shell material Aluminum alloy
Rotational torque 0.05N.m,+0.01N.m/6-way
Service life 2 million rpm
Product Dimensions
3-way 20A circuit and Ethernet combination slip ring Gigabit network transmission 0

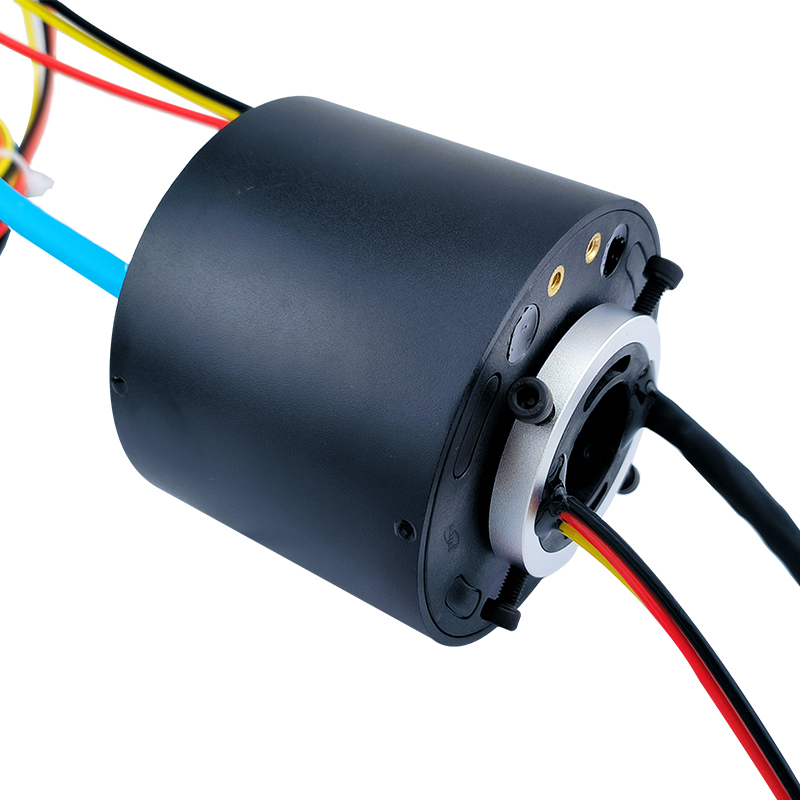

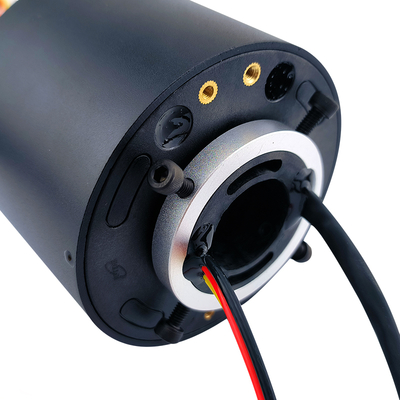

Product Images
3-way 20A circuit and Ethernet combination slip ring Gigabit network transmission 1 3-way 20A circuit and Ethernet combination slip ring Gigabit network transmission 2
Applications
  • Wind power generation: Connecting rotating cabin (generator, control system) with fixed tower
  • Industrial automation/robots: Rotating worktables, indexing plates, and robotic joints
  • Medical imaging equipment: CT scanners and X-ray machines with rotating C-arms
  • Packaging machinery: Power supply and signal control for filling and labeling heads
  • Test equipment: Turntable testing and centrifugal testing applications
  • Security monitoring: High-speed dome camera systems
