45-way Circuit 100rpm Speed Signal Combination Slip Ring with 12 5A Current Channels for High-Power Multi-Signal Transmission

Large Image : 45-way Circuit 100rpm Speed Signal Combination Slip Ring with 12 5A Current Channels for High-Power Multi-Signal Transmission

Product Details:

Place of Origin:	China
Brand Name:	GUREN
Certification:	ISO9001.CE.ROHS
Model Number:	SX48-45P-A5858

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	＄19-199
Packaging Details:	Standard/On Request
Delivery Time:	3 weeks ARO
Payment Terms:	L/C,D/A,D/P,T/T
Supply Ability:	1K units/week

Contact Now Chat Now

45-way Circuit 100rpm Speed Signal Combination Slip Ring with 12 5A Current Channels for High-Power Multi-Signal Transmission

Description

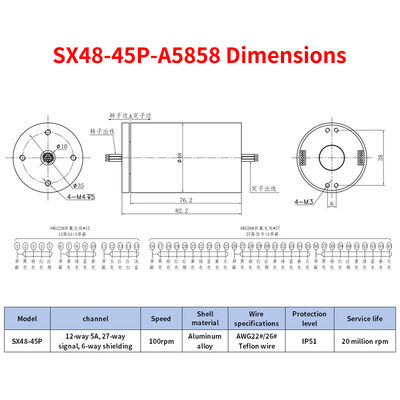

Outer Diameter:	48mm	Inner Diameter:	Solid Without Center Hole
Contact Material:	Precious Metals	Single Channel Current:	2A/5A
Circuit:	45-way	Speed:	100rpm
Highlight:	45-way Circuit Signal Combination Slip Ring , 100rpm Speed Signal Combination Slip Ring , 12 5A Current Channels Signal Combination Slip Ring

Signal Combination Slip Ring to Prevent Signal Interference

This high-performance hybrid signal slip ring is designed for equipment requiring simultaneous high-power and multi-signal transmission. It integrates 12 5A current channels, 27 signal channels, and 5 shielded lines. Featuring a flange-mounted aluminum alloy housing and internally utilizing AWG22# and AWG26# Teflon wire respectively based on current flow capacity, it ensures reliable electrical connections. The slip ring operates stably at 220V and 100 RPM, making it ideal for automated rotating equipment applications.

Key Features

Highly Integrated, Rich Channels - Hybrid design integrates 12 5A high-current channels, 27 standard signal channels, and 5 dedicated shielded lines in a single unit. This comprehensive solution addresses all transmission needs for rotating equipment components.
Sturdy Structure, Professional Design - Flange-mount design enables stable, precise installation. The aluminum alloy housing provides structural strength, heat dissipation, and enhanced electromagnetic interference resistance.
Carefully Selected Materials - AWG22# wire for high-current channels and AWG26# Teflon wire for signal channels, both offering excellent high-temperature resistance and insulation properties. This optimized design ensures safety while maximizing space efficiency.
Robust Performance - Supports maximum operating voltage of 220V and rotation speed of 100 RPM, meeting requirements for most industrial applications.

Performance Parameters

Parameter	Value
Dielectric strength	300VCA@50Hz,60s
Insulation resistance	≥1000MΩ/300VDC
Dynamic resistance change value	＜0.01Ω
Rated voltage	0～220VDC/VAC
Wire Specifications	26AWG Teflon wire
Wire length	Rotor 500mm; stator 300mm (reference value)
Operating temperature	-30℃～+80℃
Operating humidity	0～85%RH
Protection level	IP51
Shell material	Aluminum alloy
Rotational torque	0.05N.m,+0.01N.m/6-way
Service life	20 million rpm

Applications

Designed for medium-to-large rotating equipment with complex transmission requirements, high signal integrity needs, and medium-level power demands. Its versatile channel configuration makes it suitable for high-end industrial applications including automation, testing, military, and medical fields.
