56mm OD fiber-optic electrical combination slip ring, operating wavelength 840

Large Image : 56mm OD fiber-optic electrical combination slip ring, operating wavelength 840

Product Details:

Place of Origin:	china
Brand Name:	GUREN
Certification:	ISO9001.CE.RoHS
Model Number:	CX01-18P05-GRA0633

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	＄19-199
Packaging Details:	Standard/On Request
Delivery Time:	3 weeks ARO
Payment Terms:	L/C,T/T,D/P
Supply Ability:	1K units/week

Contact Now Chat Now

56mm OD fiber-optic electrical combination slip ring, operating wavelength 840

Description

Broadband:	±50nm	IP Rating:	IP54
Fiber Connector Type:	FC/APC	Working Wavelength:	840
Speed:	0～250pm	Operating Torque:	0.01~0.6 N·m
Highlight:	56mm fiber optic slip ring , fiber optic slip ring 840nm wavelength , electrical combination slip ring with warranty

56mm OD Fiber-Optic Electrical Combination Slip Ring, Operating Wavelength 840

Product Overview

This optoelectronic combination slip ring integrates 18 electrical circuits with one multimode fiber channel, designed for simultaneous power and high-frequency signal transmission. Featuring an outer diameter of 56mm and rotational capability up to 250 rpm, it operates in 380V environments while maintaining signal integrity in the 840nm band.

Key Features

Channel Configuration: 18 electrical channels (5A each, 380V max) plus one multimode FC/APC fiber channel for 840nm band transmission

High Performance: Low insertion loss (≤1.5dB) with excellent EMI resistance for reliable signal transmission

Compact Design: 56mm outer diameter enables installation in space-constrained applications

Robust Construction: Rated for 250 rpm operation with customizable options for higher speeds

Technical Specifications

Parameter	Value
Broadband	±50nm
Working wavelength	840nm
Insertion loss (room temperature)	≤1.5dB
Return loss	≥25dB(SM)
Maximum speed	0-300rpm (customizable)
Lifespan	>100 million rotations
Operating temperature	-20℃ to +60℃
Protection level	IP54 (customizable to IP65/IP67)

Product Diagram

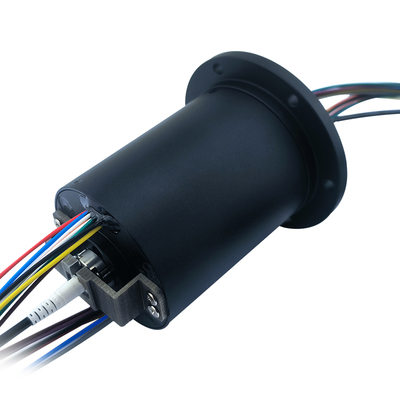

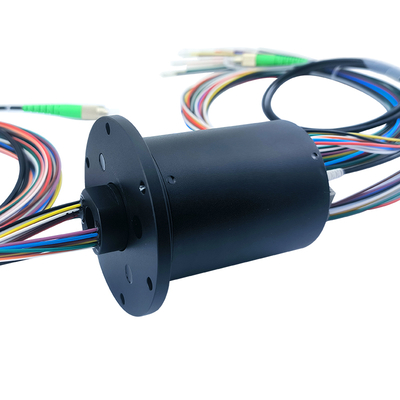

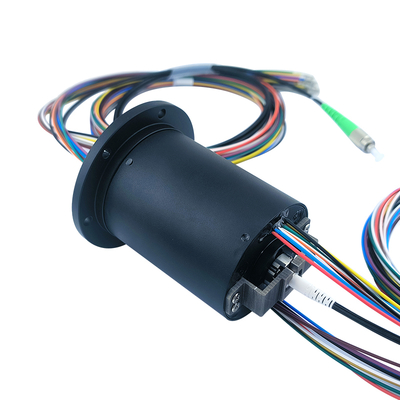

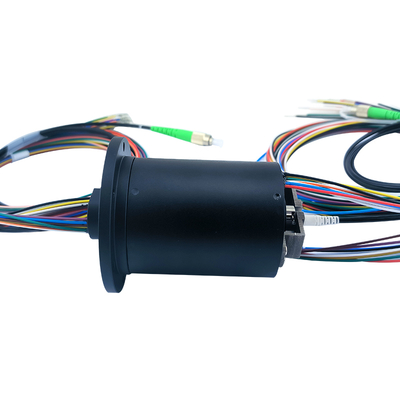

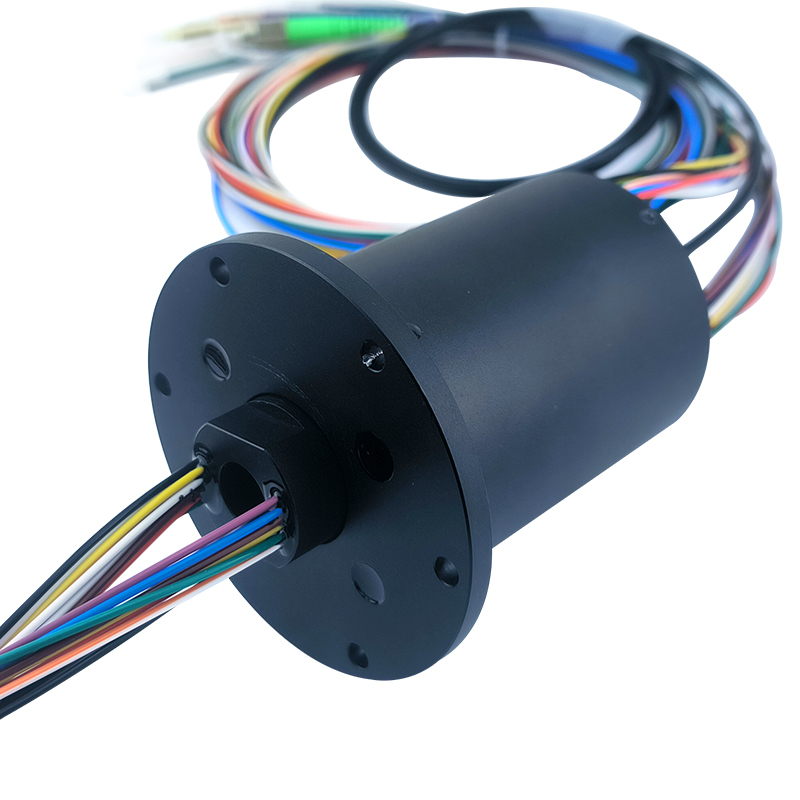

Product Images

Industrial Applications

Designed for rotating systems requiring simultaneous power and optical signal transmission, including:

Radar and surveillance equipment
Wind turbine yaw control systems
High-precision medical instruments
Industrial monitoring platforms
Drone and AI systems
