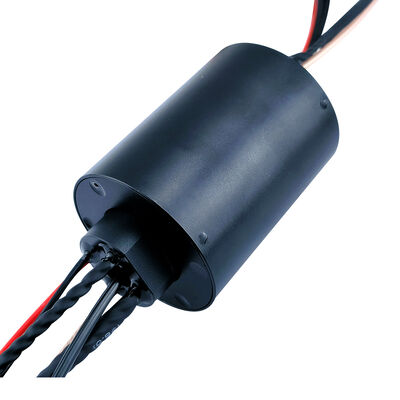

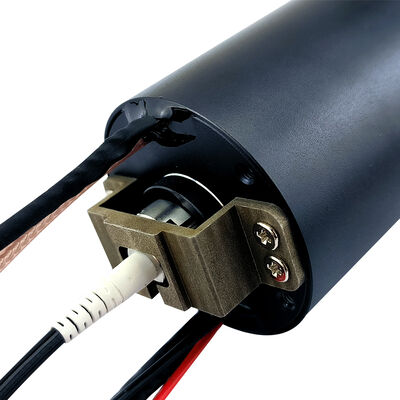

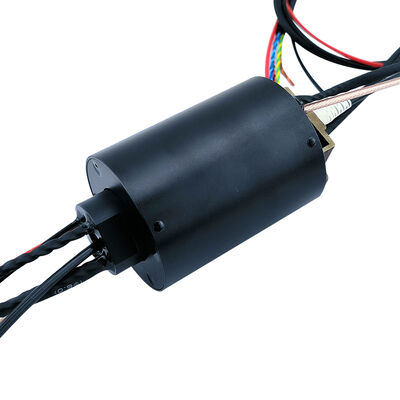

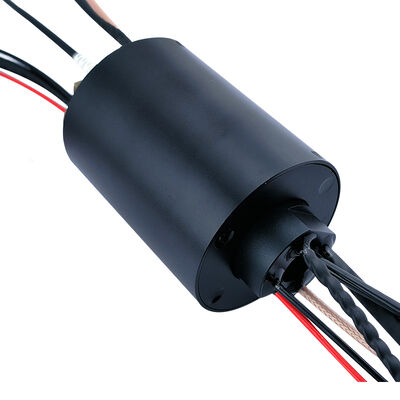

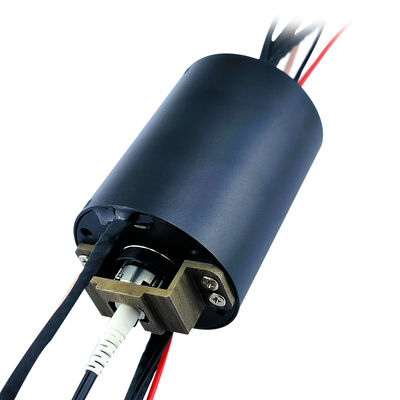

Single-Mode Fiber Optic Slip Ring with 1550/1310 nm Wavelength and 16 Electrical Circuits for High-Fidelity Signal Transmission

Single-Mode Fiber Optic Slip Ring with 1550/1310 nm Wavelength and 16 Electrical Circuits for High-Fidelity Signal Transmission
Single-Mode Fiber Optic Slip Ring with 1550/1310 nm Wavelength and 16 Electrical Circuits for High-Fidelity Signal Transmission
Single-Mode Fiber Optic Slip Ring with 1550/1310 nm Wavelength and 16 Electrical Circuits for High-Fidelity Signal Transmission Single-Mode Fiber Optic Slip Ring with 1550/1310 nm Wavelength and 16 Electrical Circuits for High-Fidelity Signal Transmission Single-Mode Fiber Optic Slip Ring with 1550/1310 nm Wavelength and 16 Electrical Circuits for High-Fidelity Signal Transmission Single-Mode Fiber Optic Slip Ring with 1550/1310 nm Wavelength and 16 Electrical Circuits for High-Fidelity Signal Transmission Single-Mode Fiber Optic Slip Ring with 1550/1310 nm Wavelength and 16 Electrical Circuits for High-Fidelity Signal Transmission Single-Mode Fiber Optic Slip Ring with 1550/1310 nm Wavelength and 16 Electrical Circuits for High-Fidelity Signal Transmission Single-Mode Fiber Optic Slip Ring with 1550/1310 nm Wavelength and 16 Electrical Circuits for High-Fidelity Signal Transmission

Large Image :  Single-Mode Fiber Optic Slip Ring with 1550/1310 nm Wavelength and 16 Electrical Circuits for High-Fidelity Signal Transmission

Product Details:
Place of Origin: china
Brand Name: GUREN
Certification: ISO9001.CE.RoHS
Model Number: GX01-16P-GRA0651-1
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: ＄19-199
Packaging Details: Standard/On Request
Delivery Time: 3 weeks ARO
Payment Terms: L/C,T/T,D/P
Supply Ability: 1K units/week
Contact Now Chat Now

Single-Mode Fiber Optic Slip Ring with 1550/1310 nm Wavelength and 16 Electrical Circuits for High-Fidelity Signal Transmission

Description
Fiber Optic Cable Type: Single Mode Maximum Insertion Loss: ≤1.5dB
Working Wavelength: 1550/1310 Speed: 0～20pm
Power Handling Capacity: ≤23dBm Return Loss: ≥40dB (SM)
Highlight:

Single-Mode Fiber Optic Slip Ring

,

1550/1310 nm Optical Slip Ring

,

16 Electrical Circuits Fiber Rotary Joint

Fiber Optic Circuit Combination Slip Ring
This fiber optic circuit combination slip ring is a photoelectric composite slip ring specifically designed for high-fidelity signal transmission. It integrates 16 standard electrical circuits and one single-mode fiber optic channel within a single rotating connection unit.
Product Features
  • Integrated Electro-Optical Hybrid Transmission: Combines 16 power/signal channels with one single-mode optical fiber channel for conventional electrical connections and high-speed, lossless data transmission
  • Lossless Rotating Single-Mode Fiber Connection: Supports 1310/1550nm communication wavelengths, ensuring stable transmission of video and sensor data without delay or electromagnetic interference
  • Wide Operating Temperature Range: Operates reliably in ambient temperatures from -20℃ to 60℃ for various industrial environments
  • Precision Low-Speed Stable Design: 20 RPM design speed optimized for applications requiring high signal stability in precision turntables, radar systems, and medical equipment
Technical Specifications
Parameter Value
Working wavelength 1550/1310nm
Insertion loss (room temperature) ≤1.5dB
Return loss ≥40dB(SM)
Maximum speed 0-20rpm (customizable)
Lifespan >200 million rotations
Operating temperature -20℃ to +60℃
Protection level IP54 (customizable to IP65/IP67)
Product Diagram
Single-Mode Fiber Optic Slip Ring with 1550/1310 nm Wavelength and 16 Electrical Circuits for High-Fidelity Signal Transmission 0
Industrial Applications
  • High-speed camera and monitoring systems: Power and video signal transmission for rotating high-definition camera domes and electro-optical pods
  • Medical imaging equipment: Power supply and high-speed image data synchronization for rotating components of CT scanners and DSA angiography machines
  • Radar and communication equipment: Power supply and signal return for vehicle-mounted and shipborne radar and satellite communication antennas
  • Industrial inspection and scientific research instruments: Composite signal connection for rotating hyperspectral imaging, laser scanning, and other equipment
Frequently Asked Questions
What are the transmission distance and bandwidth supported by the single-mode fiber optic channel?
Single-mode fiber supports transmission distances of several kilometers to tens of kilometers and bandwidths in the GHz range. In this slip ring, the actual effective transmission distance and bandwidth mainly depend on the connected optical equipment and insertion loss. Standard models fully meet short-distance high-speed interconnection needs for most equipment.
What are the current and voltage ratings of the 16-channel electrical circuit?
This standard multi-functional electrical circuit channel features conventional rated parameters of 2-5A per channel, with voltage levels up to 220VAC/VDC. Specific electrical parameters can be confirmed or customized according to your requirements during selection.
How is low loss and stability of the fiber optic connection ensured during rotation?
The product uses precise collimating lens coupling and floating compensation structure. At the set rotation speed of 20 RPM, it dynamically compensates for small axial and radial deviations, ensuring stable optical path coupling efficiency during rotation with excellent low insertion loss and low return loss performance.
