48-way 2A Signal Through Bore Electrical Slip Ring with 56mm Outer Diameter and Flange Design

Large Image : 48-way 2A Signal Through Bore Electrical Slip Ring with 56mm Outer Diameter and Flange Design

Product Details:

Place of Origin:	China
Brand Name:	GUREN
Certification:	ISO9001.CE.ROHS
Model Number:	GK1056F-48PS-GRA0232

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	＄19-199
Packaging Details:	Standard/On Request
Delivery Time:	3 weeks ARO
Payment Terms:	L/C,D/A,D/P,T/T
Supply Ability:	1K units/week

Contact Now Chat Now

48-way 2A Signal Through Bore Electrical Slip Ring with 56mm Outer Diameter and Flange Design

Description

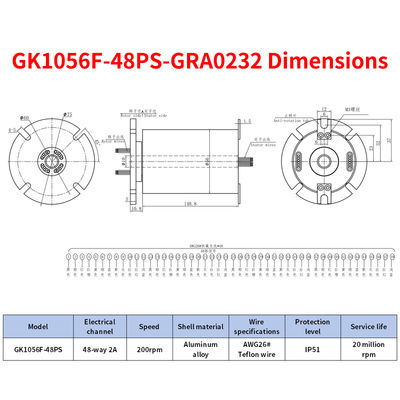

Outer Diameter:	56mm	Inner Diameter:	10mm
Contact Material:	Precious Metals	Single Channel Current:	2A Signal
Circuit:	48-way	Speed:	200rpm
Highlight:	48-way Through Bore Electrical Slip Ring , 2A Signal Through Bore Electrical Slip Ring , 56mm Outer Diameter Through Bore Electrical Slip Ring

48-way 2A Signal Slip Ring - Flange Design, Aluminum Alloy Housing

This 48-channel, 2A signal slip ring features a robust aluminum alloy housing with flange-mount design for easy integration. Compact dimensions (56mm outer diameter, 10mm inner bore) make it ideal for space-constrained applications. High-temperature-resistant 26AWG Teflon wiring and precious metal contacts ensure stable signal transmission and durability, supporting rotation speeds up to 200 rpm.

Key Features

High Channel Integration: 48 independent channels (2A each) for complex signal and power transmission requirements
Robust Construction: Aluminum alloy housing combines strength with lightweight properties
Easy Installation: Flange-mount design enables quick, secure equipment integration
Compact Design: Space-saving dimensions (Ø56mm) with 10mm center bore for shaft/cable routing
Premium Components: Precious metal contacts and Teflon wiring ensure low resistance and long service life
High-Speed Performance: Supports rotation speeds up to 200 RPM

Performance Parameters

Parameter	Value
Dielectric strength	500VCA@50Hz,60s
Insulation resistance	≥1000MΩ/500VDC
Dynamic resistance change value	＜0.01Ω
Rated voltage	0～220VDC/VAC
Wire Specifications	26AWG Teflon wire
Wire length	Rotor 300mm; stator 300mm (reference value)
Operating temperature	-30℃～+80℃
Operating humidity	0～85%RH
Protection level	IP51
Shell material	Aluminum alloy
Rotational torque	0.05N.m,+0.01N.m/6-way
Service life	2 million rpm

Applications

Wind power generation systems
Industrial automation and robotics
Medical imaging equipment (CT scanners, X-ray machines)
Packaging and filling machinery
Test equipment (turntable, centrifugal testing)
Security monitoring systems
