26-way 2A Low Voltage Electric Slip Ring with 100mm Inner Diameter and Aluminum Alloy Housing

Large Image : 26-way 2A Low Voltage Electric Slip Ring with 100mm Inner Diameter and Aluminum Alloy Housing

Product Details:

Place of Origin:	China
Brand Name:	GUREN
Certification:	ISO9001.CE.ROHS
Model Number:	GK100177-26P02-C0320

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	＄19-199
Packaging Details:	Standard/On Request
Delivery Time:	3 weeks ARO
Payment Terms:	L/C,D/A,D/P,T/T
Supply Ability:	1K units/week

Contact Now Chat Now

26-way 2A Low Voltage Electric Slip Ring with 100mm Inner Diameter and Aluminum Alloy Housing

Description

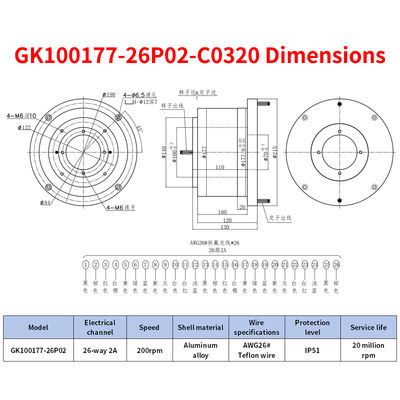

Outer Diameter:	177mm	Inner Diameter:	100mm
Contact Material:	Precious Metals	Single Channel Current:	2A
Circuit:	26-way	Speed:	200rpm
Highlight:	100mm Inner Diameter Through Bore Electrical Slip Ring , Low Voltage Electric Slip Ring , Aluminum Alloy Housing Rotary Joint

26-way 2A Large Aperture Electric Slip Ring Low Voltage Rotary Joint

This 26-way, 2A, large-aperture electrical slip ring is engineered for medium- and large-sized rotating equipment requiring centerline wiring. Featuring a generous 100mm inner diameter, it simplifies the layout of central shafts or cables. The aluminum alloy housing combined with precious metal contacts and high-temperature resistant Teflon conductors ensures stable power and signal transmission at speeds up to 200 RPM. Ideal for robotic arm bases, rotating test platforms, and medical CT equipment support mechanisms.

Key Features

Unique Structural Design: 100mm inner bore diameter facilitates easy integration with centerline cable or shaft routing in large rotating equipment.
Excellent Performance: Stable transmission at speeds up to 200 RPM with 2A rated current per channel for reliable low-voltage power and signal transfer.
Premium Construction: Precious metal contacts ensure low resistance and durability, while Teflon conductors and aluminum alloy housing provide temperature resistance and mechanical strength.

Performance Parameters

Parameter	Value
Dielectric strength	300VCA@50Hz,60s
Insulation resistance	≥500MΩ/300VDC
Dynamic resistance change value	＜0.01Ω
Rated voltage	0～24VDC/VAC
Wire Specifications	26AWG Teflon wire
Wire length	Rotor 300mm; stator 300mm (reference value)
Operating temperature	-30℃～+80℃
Operating humidity	0～85%RH
Protection level	IP51
Shell material	Aluminum alloy
Rotational torque	0.05N.m,+0.01N.m/6-way
Service life	2 million rpm

Applications

Wind power generation systems
Industrial automation and robotics
Medical imaging equipment (CT scanners, X-ray machines)
Packaging and filling machinery
Test equipment (turntable, centrifugal testing)
Security monitoring systems
