High Frequency Hybrid Slip Ring with RG-179 Coaxial Cable 15-Way Circuit and 0-200rpm Speed for Reliable Signal Transmission

Large Image : High Frequency Hybrid Slip Ring with RG-179 Coaxial Cable 15-Way Circuit and 0-200rpm Speed for Reliable Signal Transmission

Product Details:

Place of Origin:	China
Brand Name:	GUREN
Certification:	ISO9001.CE.ROHS
Model Number:	SX36-15P-GRA0651

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	＄19-199
Packaging Details:	Standard/On Request
Delivery Time:	3 weeks ARO
Payment Terms:	L/C,D/A,D/P,T/T
Supply Ability:	1K units/week

Contact Now Chat Now

High Frequency Hybrid Slip Ring with RG-179 Coaxial Cable 15-Way Circuit and 0-200rpm Speed for Reliable Signal Transmission

Description

Outer Diameter:	36mm	Inner Diameter:	Solid Without Holes
Contact Material:	Precious Metals	Single Channel Current:	2A
Circuit:	15-way	Speed:	0-200rpm
Highlight:	RG-179 Coaxial Cable Hybrid Slip Ring , 15-Way Circuit Through Bore Slip Ring , 0-200rpm Speed Electrical Slip Ring

High Frequency Signal Hybrid Electric Slip Ring

Aluminum Alloy Housing with RG-179 Coaxial Cable

This high-frequency hybrid slip ring is designed for rotating equipment that requires simultaneous transmission of power, signals, and high-frequency data. It integrates four 10A power lines, eight 1A signal lines, and one RG-179 coaxial line into a single-piece aluminum alloy housing.

Key Features

Highly Integrated, Multifunctional: Three-in-one hybrid design integrates four 10A high-current channels, eight 1A signal channels, and one RG-179 high-frequency coaxial cable in a single product.
Reliable Construction: One-piece aluminum alloy housing with heat shrink tubing on input/output terminals for protection and strain relief.
Robust Performance: Precious metal contacts ensure stable connections at 220V operating voltage and 200 RPM with IP40 protection rating.

Performance Parameters

Parameter	Value
Dielectric strength	300VCA@50Hz,60s
Insulation resistance	≥500MΩ/300VDC
Dynamic resistance change value	＜0.01Ω
Rated voltage	0～220VDC/VAC
Wire Specifications	Teflon wire and RG-179 coaxial cable
Wire length	Rotor 600mm; stator 600mm (reference value)
Operating temperature	-30℃～+80℃
Operating humidity	0～85%RH
Protection level	IP40
Shell material	Aluminum alloy
Rotational torque	0.05N.m,+0.01N.m/6-way
Service life	5 million rpm

Product Dimensions

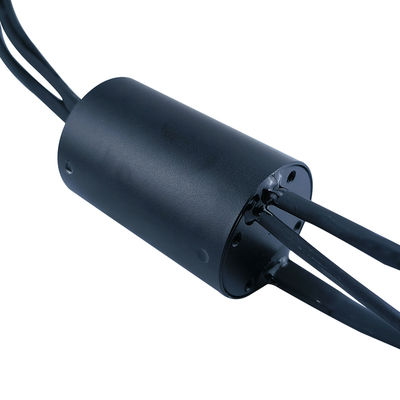

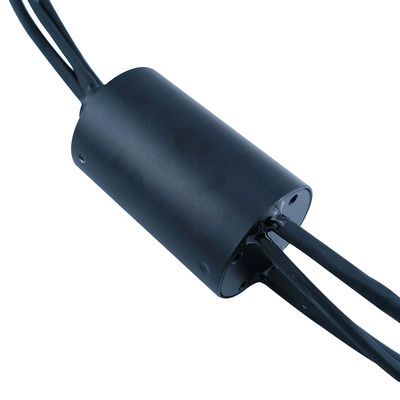

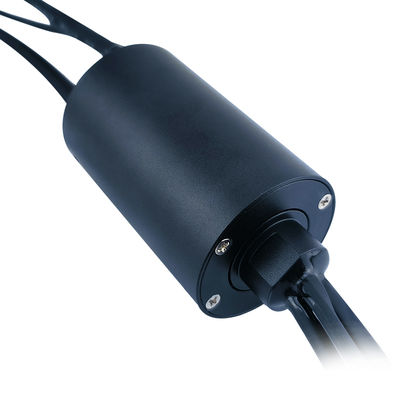

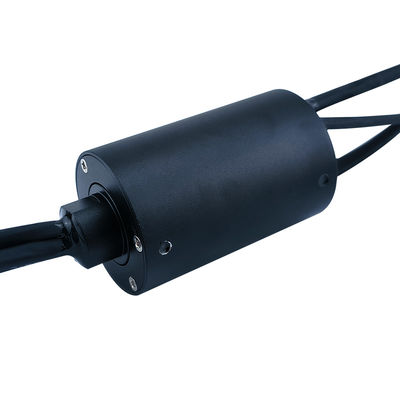

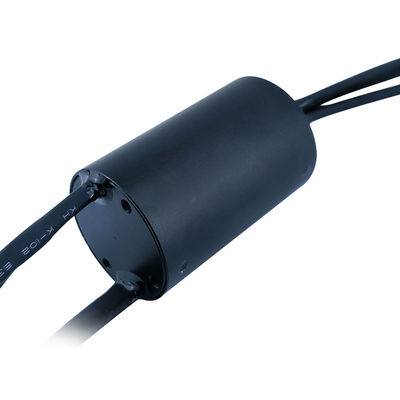

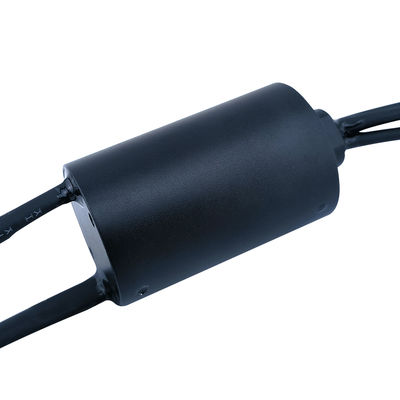

Product Images

Applications

This three-in-one hybrid slip ring is ideal for equipment requiring 360-degree rotation with simultaneous power, signal, and high-frequency data transmission:

Security surveillance and photoelectric detection:
- High-end pan-tilt-zoom cameras
- Photoelectric radar systems
Medical and testing equipment:
- Rotating CT scanners
- Precision test turntables
Industrial automation and robotics:
- Large robotic arm joints
- Automated machining centers
Special equipment and display devices:
- Interactive rotating display stands
