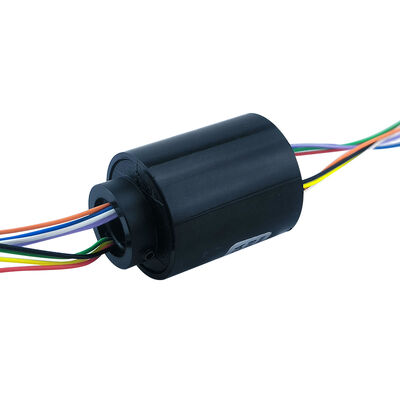

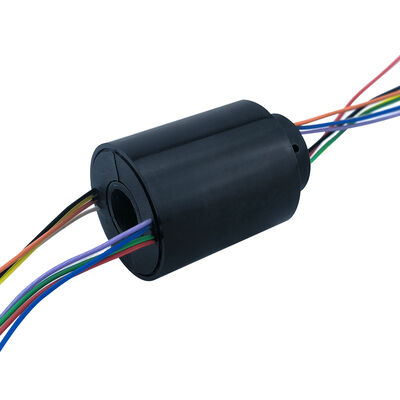

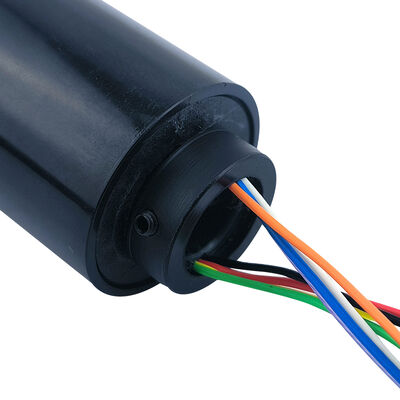

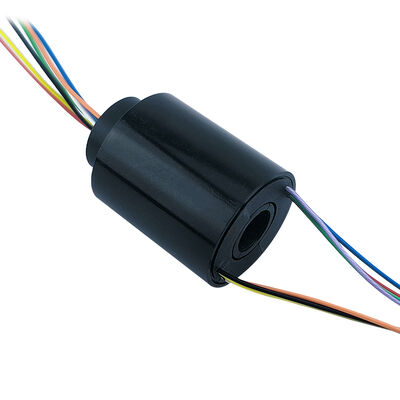

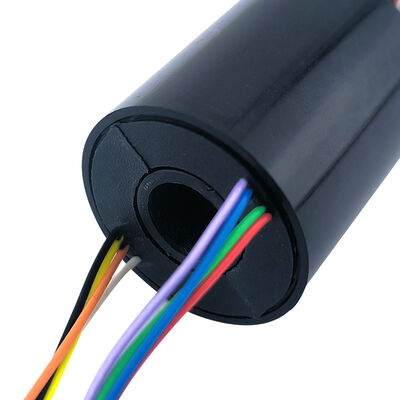

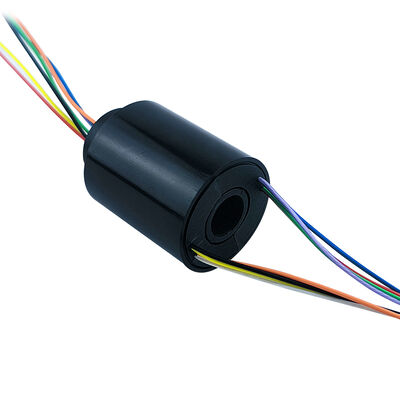

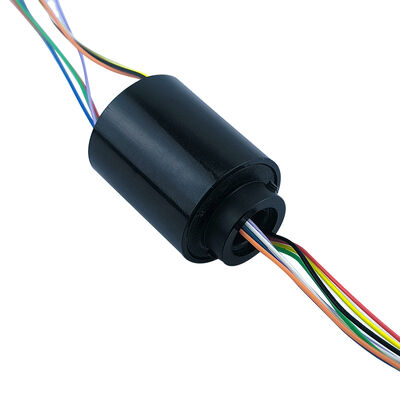

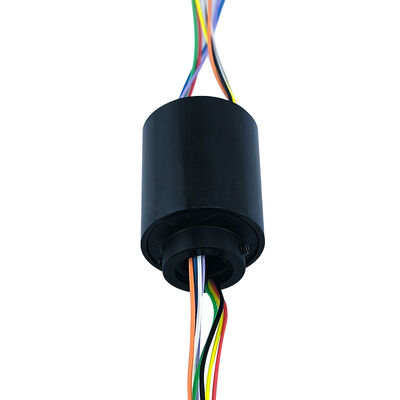

8-channel 2A miniature hollow signal slip ring with 9mm center hole and PBT housing for stable transmission

8-channel 2A miniature hollow signal slip ring with 9mm center hole and PBT housing for stable transmission
8-channel 2A miniature hollow signal slip ring with 9mm center hole and PBT housing for stable transmission
8-channel 2A miniature hollow signal slip ring with 9mm center hole and PBT housing for stable transmission 8-channel 2A miniature hollow signal slip ring with 9mm center hole and PBT housing for stable transmission 8-channel 2A miniature hollow signal slip ring with 9mm center hole and PBT housing for stable transmission 8-channel 2A miniature hollow signal slip ring with 9mm center hole and PBT housing for stable transmission 8-channel 2A miniature hollow signal slip ring with 9mm center hole and PBT housing for stable transmission 8-channel 2A miniature hollow signal slip ring with 9mm center hole and PBT housing for stable transmission 8-channel 2A miniature hollow signal slip ring with 9mm center hole and PBT housing for stable transmission 8-channel 2A miniature hollow signal slip ring with 9mm center hole and PBT housing for stable transmission 8-channel 2A miniature hollow signal slip ring with 9mm center hole and PBT housing for stable transmission 8-channel 2A miniature hollow signal slip ring with 9mm center hole and PBT housing for stable transmission

Large Image :  8-channel 2A miniature hollow signal slip ring with 9mm center hole and PBT housing for stable transmission

Product Details:
Place of Origin: China
Brand Name: GUREN
Certification: ISO9001.CE.ROHS
Model Number: GK0925-8PS-E0081-1
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: ＄19-199
Packaging Details: Standard/On Request
Delivery Time: 3 weeks ARO
Payment Terms: L/C,D/A,D/P,T/T
Supply Ability: 1K units/week
Contact Now Chat Now

8-channel 2A miniature hollow signal slip ring with 9mm center hole and PBT housing for stable transmission

Description
Outer Diameter: 25mm Inner Diameter: 9mm
Contact Material: Gold-Gold Single Channel Current: 2A
Circuit: 8-way Speed: 0-150rpm
Highlight:

8-channel hollow slip ring

,

2A miniature slip ring

,

PBT material slip ring

8-Channel 2A Miniature Hollow Signal Slip Ring
This 8-channel 2A miniature hollow signal slip ring features a PBT engineering plastic shell and a 9mm hollow structure, with an outer diameter of only 25mm. It utilizes gold-to-gold contact material and AWG26# Teflon wire to ensure stable and reliable signal and power transmission at 220V operating voltage and 150RPM speed.
Key Features
  • Ultra-compact hollow design: A 25mm outer diameter combined with a 9mm central hole provides an ideal rotary connection solution for miniature devices
  • Gold-to-gold contact protection: Utilizing gold-to-gold contact materials ensures low contact resistance and long service life
  • Superior electrical configuration: AWG26# Teflon wire is high-temperature resistant and corrosion-resistant, ensuring signal transmission integrity
  • Insulated and safe housing: The PBT engineering plastic housing provides excellent electrical insulation and mechanical strength
Performance Parameters
Parameter Value
Dielectric strength 200VCA@50Hz,60s
Insulation resistance ≥300MΩ/200VDC
Dynamic resistance change value ＜0.015Ω
Rated voltage 0～220VDC/VAC
Wire Specifications Teflon wire
Wire length Rotor 200mm; stator 200mm (reference value)
Operating temperature -30℃～+70℃
Operating humidity 0～85%RH
Protection level IP51
Shell material Engineering Plastics
Rotational torque 0.05N.m,+0.01N.m/6-way
Service life 2 million rpm
Product Dimensions
8-channel 2A miniature hollow signal slip ring with 9mm center hole and PBT housing for stable transmission 0
Applications
  • Miniature automation equipment: small robotic arms, rotary connections for precision instruments
  • Security monitoring equipment: signal transmission for miniature pan-tilt units and dome cameras
  • Medical equipment: power supply for small rotating testing instruments
  • Instruments and meters: rotary connection parts for testing and measurement equipment
Frequently Asked Questions
What types of cables can pass through the 9mm center bore?
The 9mm center bore is suitable for sensor cables, fiber optic cables, thin air tubes, etc., providing a convenient passage for internal wiring.
What are the advantages of PBT material compared to a metal casing?
PBT engineering plastic has excellent electrical insulation, heat resistance, and dimensional stability, while effectively reducing overall weight.
Does the product support higher speeds?
The standard version of this product is optimized for 150 RPM. For higher speeds, we can provide customized solutions. Please contact our technical support.
