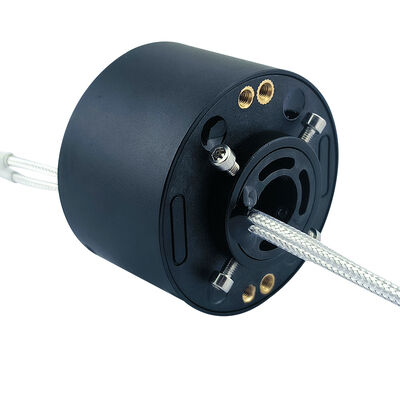

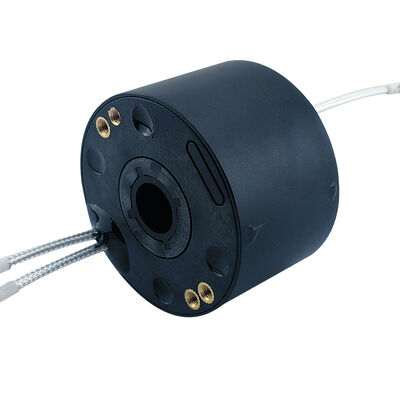

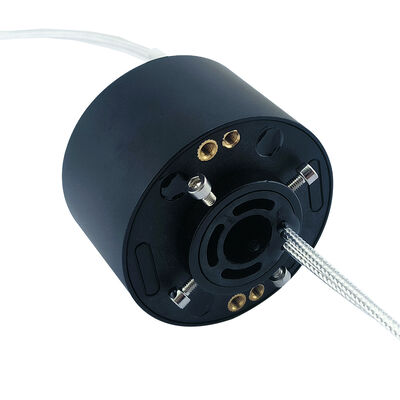

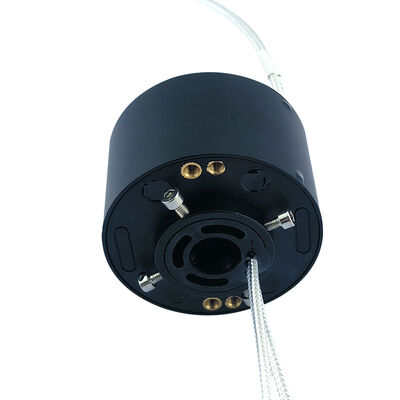

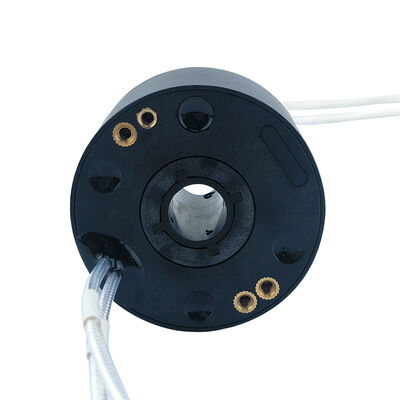

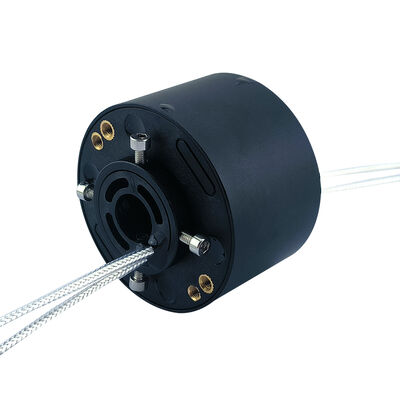

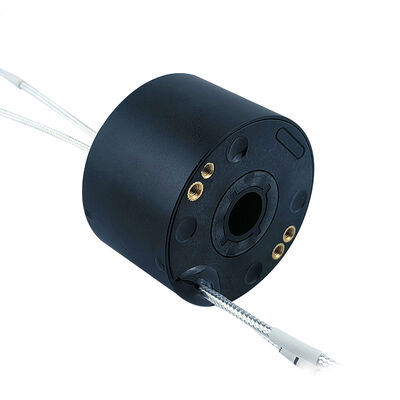

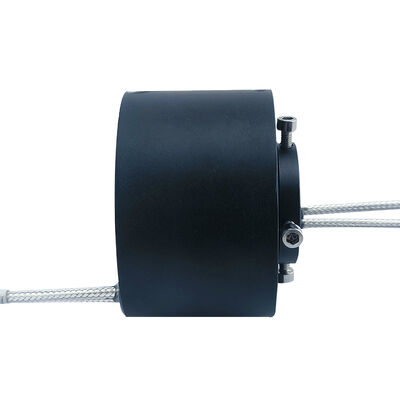

6-channel PT100 Signal Slip Ring with Precious Metals Contact for Temperature Sensor Transmission

6-channel PT100 Signal Slip Ring with Precious Metals Contact for Temperature Sensor Transmission
6-channel PT100 Signal Slip Ring with Precious Metals Contact for Temperature Sensor Transmission
6-channel PT100 Signal Slip Ring with Precious Metals Contact for Temperature Sensor Transmission 6-channel PT100 Signal Slip Ring with Precious Metals Contact for Temperature Sensor Transmission 6-channel PT100 Signal Slip Ring with Precious Metals Contact for Temperature Sensor Transmission 6-channel PT100 Signal Slip Ring with Precious Metals Contact for Temperature Sensor Transmission 6-channel PT100 Signal Slip Ring with Precious Metals Contact for Temperature Sensor Transmission 6-channel PT100 Signal Slip Ring with Precious Metals Contact for Temperature Sensor Transmission 6-channel PT100 Signal Slip Ring with Precious Metals Contact for Temperature Sensor Transmission 6-channel PT100 Signal Slip Ring with Precious Metals Contact for Temperature Sensor Transmission 6-channel PT100 Signal Slip Ring with Precious Metals Contact for Temperature Sensor Transmission

Large Image :  6-channel PT100 Signal Slip Ring with Precious Metals Contact for Temperature Sensor Transmission

Product Details:
Place of Origin: China
Brand Name: GUREN
Certification: ISO9001.CE.ROHS
Model Number: GK1256-6P-GRA0303
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: ＄19-199
Packaging Details: Standard/On Request
Delivery Time: 3 weeks ARO
Payment Terms: L/C,D/A,D/P,T/T
Supply Ability: 1K units/week
Contact Now Chat Now

6-channel PT100 Signal Slip Ring with Precious Metals Contact for Temperature Sensor Transmission

Description
Outer Diameter: 56mm Inner Diameter: 12.7mm
Contact Material: Precious Metals Channel Current: Signal
Circuit: 6-way Speed: 0-250rpm
Highlight:

6-channel Signal Slip Ring

,

PT100 Signal Slip Ring

,

Precious Metals Signal Slip Ring

6-Channel PT100 Signal Slip Ring
The 6-channel PT100 signal slip ring is engineered for precise temperature sensor signal transmission. Featuring high-quality PT100 dedicated wire cores and a durable black aluminum alloy housing, this compact unit offers a 12.7mm center hole design with just 56mm outer diameter. Rated for 220V operation with IP51 protection and 250RPM maximum speed, it ensures stable, lossless temperature signal transmission during rotation.
Key Features
  • PT100 Dedicated Design: Specialized PT100 wire cores guarantee accurate and stable temperature sensor signal transmission.
  • Compact Hollow Structure: 12.7mm central bore accommodates conduit passage while 56mm outer diameter suits space-constrained installations.
  • Industrial-Grade Protection: IP51 rating provides effective defense against dust and vertical dripping for harsh environments.
  • High-Speed Rotation: 250RPM maximum speed meets most rotating equipment requirements.
Performance Parameters
Parameter Value
Dielectric strength 300VCA@50Hz,60s
Insulation resistance ≥500MΩ/300VDC
Dynamic resistance change value ＜0.01Ω
Rated voltage 0～220VDC/VAC
Wire Specifications Teflon wire
Wire length Rotor 300mm; stator 300mm (reference value)
Operating temperature -30℃～+70℃
Operating humidity 0～85%RH
Protection level IP51
Shell material Aluminum alloy
Rotational torque 0.05N.m,+0.01N.m/6-way
Service life 20 million rpm
Product Dimensions
6-channel PT100 Signal Slip Ring with Precious Metals Contact for Temperature Sensor Transmission 0
Applications
  • Temperature-controlled rotary equipment: Monitoring rotating parts in industrial ovens and drying systems
  • Food processing machinery: Temperature sensor signal transmission for rotary cooking and sterilization units
  • Plastics processing equipment: Signal transmission for rotary mold temperature control in injection molding and extrusion machines
  • Laboratory testing equipment: Temperature signal acquisition for rotating environmental chambers and test benches
Frequently Asked Questions
Q: What is the difference between PT100 core wire and ordinary signal core wire?
A: PT100 dedicated core wire is specially designed for temperature sensors, featuring lower resistance deviation and superior temperature stability to ensure measurement accuracy.
Q: What types of conduits can pass through the 12.7mm center hole?
A: The 12.7mm bore accommodates sensor cables, control circuits, and thin air tubes, facilitating internal equipment wiring.
Q: Does the product support higher speed operation?
A: The standard version is optimized for 250RPM. Custom solutions are available for higher speed requirements.
