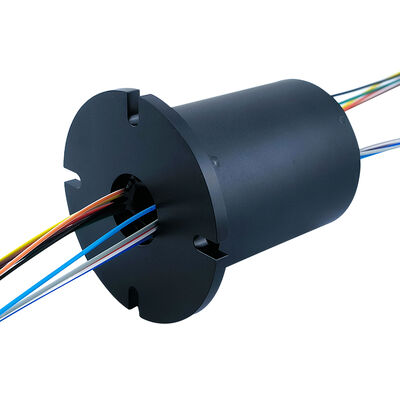

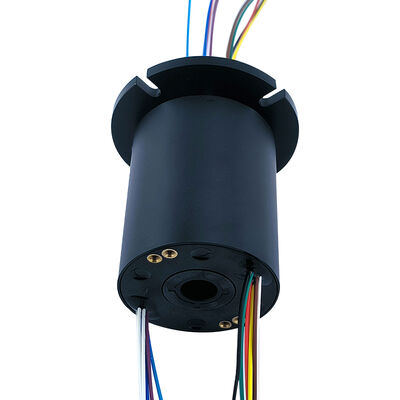

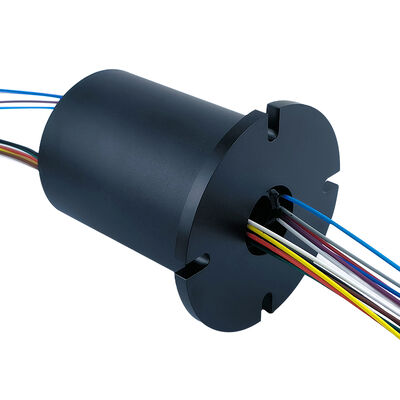

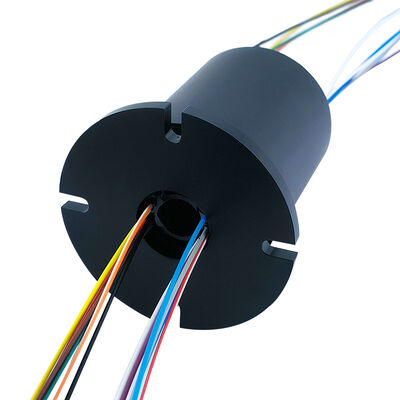

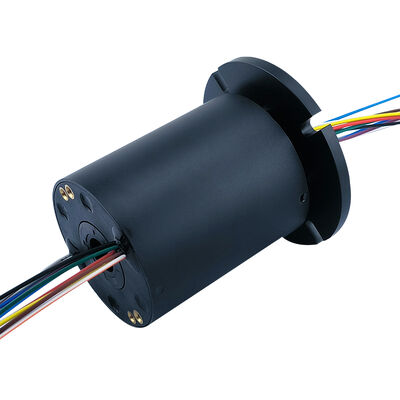

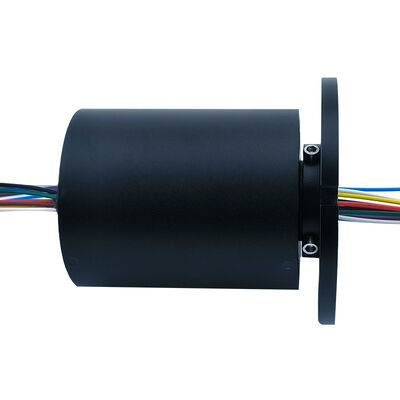

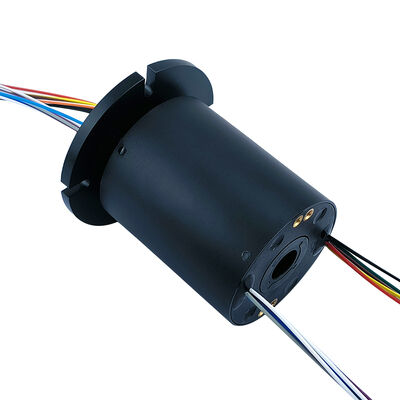

12-channel 2A Hollow Flange Electric Slip Ring with 380V Operating Voltage and IP51 Protection in Black Aluminum Alloy Shell

12-channel 2A Hollow Flange Electric Slip Ring with 380V Operating Voltage and IP51 Protection in Black Aluminum Alloy Shell
12-channel 2A Hollow Flange Electric Slip Ring with 380V Operating Voltage and IP51 Protection in Black Aluminum Alloy Shell
12-channel 2A Hollow Flange Electric Slip Ring with 380V Operating Voltage and IP51 Protection in Black Aluminum Alloy Shell 12-channel 2A Hollow Flange Electric Slip Ring with 380V Operating Voltage and IP51 Protection in Black Aluminum Alloy Shell 12-channel 2A Hollow Flange Electric Slip Ring with 380V Operating Voltage and IP51 Protection in Black Aluminum Alloy Shell 12-channel 2A Hollow Flange Electric Slip Ring with 380V Operating Voltage and IP51 Protection in Black Aluminum Alloy Shell 12-channel 2A Hollow Flange Electric Slip Ring with 380V Operating Voltage and IP51 Protection in Black Aluminum Alloy Shell 12-channel 2A Hollow Flange Electric Slip Ring with 380V Operating Voltage and IP51 Protection in Black Aluminum Alloy Shell 12-channel 2A Hollow Flange Electric Slip Ring with 380V Operating Voltage and IP51 Protection in Black Aluminum Alloy Shell 12-channel 2A Hollow Flange Electric Slip Ring with 380V Operating Voltage and IP51 Protection in Black Aluminum Alloy Shell

Large Image :  12-channel 2A Hollow Flange Electric Slip Ring with 380V Operating Voltage and IP51 Protection in Black Aluminum Alloy Shell

Product Details:
Place of Origin: China
Brand Name: GUREN
Certification: ISO9001.CE.ROHS
Model Number: GK1256F-12P02-A5924
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: ＄19-199
Packaging Details: Standard/On Request
Delivery Time: 3 weeks ARO
Payment Terms: L/C,D/A,D/P,T/T
Supply Ability: 1K units/week
Contact Now Chat Now

12-channel 2A Hollow Flange Electric Slip Ring with 380V Operating Voltage and IP51 Protection in Black Aluminum Alloy Shell

Description
Outer Diameter: 12.7mm Inner Diameter: 56mm
Contact Material: Precious Metals Operating Voltage: 380V
Circuit: 12-way Speed: 0-200rpm
Highlight:

380V Hollow Flange Electric Slip Ring

,

IP51 Through Bore Electrical Slip Ring

,

Black Aluminum Alloy Rotary Electrical Connector

12-channel 2A Hollow Flange Electric Slip Ring, 200rpm Speed
12-channel 2A hollow flange electric slip ring features a black aluminum alloy shell and AWG22# Teflon wire for internal wiring. It is suitable for 380V operation and can reach a maximum speed of 200rpm. The contact parts are made of precious metals to ensure stable signal transmission and durability. With an inner diameter of 12.7mm and an outer diameter of 56mm, it supports both through-hole and flange mounting methods, adapting to various assembly requirements.
Key Features
  • Stable Multi-channel Transmission: Provides 12 channels, each supporting 2A current, meeting the power and signal transmission needs of complex equipment.
  • Efficient Through-hole Design: The 12.7mm inner diameter hollow structure provides convenient passageways for air pipes, hydraulic pipes, and cables, simplifying machine design.
  • Rugged and Durable: The black aluminum alloy casing combines lightweight design with excellent heat dissipation, ensuring stable operation even at high speeds.
  • High Speed and Long Lifespan: Maximum speed of 200rpm, combined with precious metal contacts, effectively reduces contact resistance and wear, ensuring long-term stable operation.
Performance Parameters
Parameter Value
Dielectric strength 500VCA@50Hz,60s
Insulation resistance ≥1000MΩ/500VDC
Dynamic resistance change value ＜0.01Ω
Rated voltage 0～380VDC/VAC
Wire Specifications Teflon wire
Wire length Rotor 300mm; stator 300mm (reference value)
Operating temperature -30℃～+80℃
Operating humidity 0～85%RH
Protection level IP51
Shell material Engineering Plastics
Rotational torque 0.05N.m,+0.01N.m/6-way
Service life 2 million rpm
Product Dimensions
12-channel 2A Hollow Flange Electric Slip Ring with 380V Operating Voltage and IP51 Protection in Black Aluminum Alloy Shell 0
Applications
  • Automated robots: Providing power and signals to rotating joints.
  • Packaging and filling equipment: Solving the problem of cable tangling in rotating parts.
  • Rotating display stands and radar systems: Ensuring energy supply for continuous rotation.
  • Cable reel equipment: Achieving efficient and stable cable winding and unwinding operations.

Tag:

hollow slip ring,

electrical through hole slip ring,

Conductive Slip Ring
