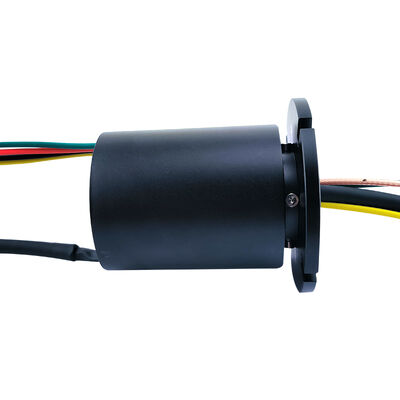

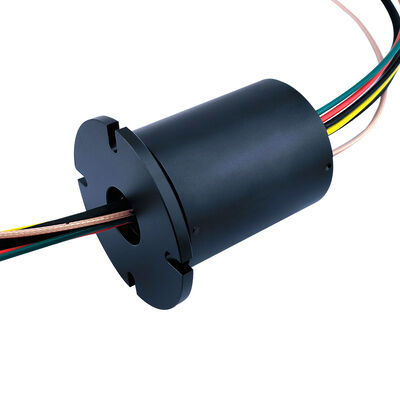

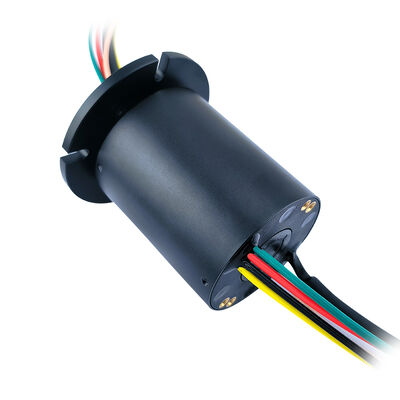

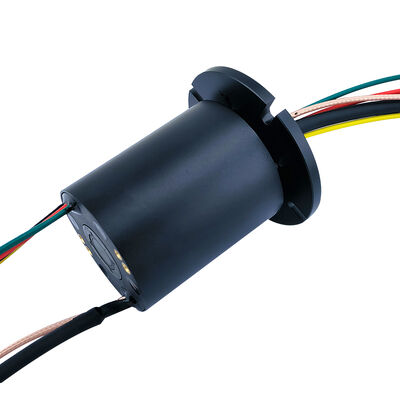

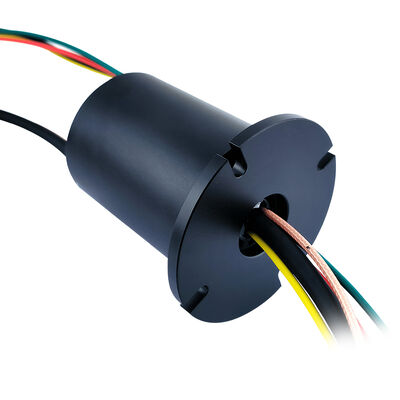

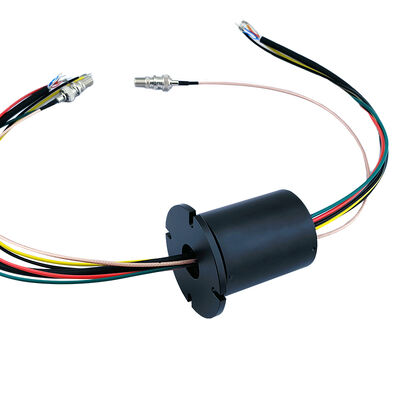

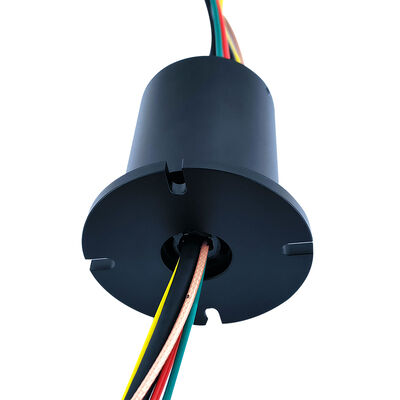

56mm Diameter High-definition Signal Combination Slip Ring with 4-Channel Shielded Signal and 2-Channel 1080P High-Definition

56mm Diameter High-definition Signal Combination Slip Ring with 4-Channel Shielded Signal and 2-Channel 1080P High-Definition
56mm Diameter High-definition Signal Combination Slip Ring with 4-Channel Shielded Signal and 2-Channel 1080P High-Definition
56mm Diameter High-definition Signal Combination Slip Ring with 4-Channel Shielded Signal and 2-Channel 1080P High-Definition 56mm Diameter High-definition Signal Combination Slip Ring with 4-Channel Shielded Signal and 2-Channel 1080P High-Definition 56mm Diameter High-definition Signal Combination Slip Ring with 4-Channel Shielded Signal and 2-Channel 1080P High-Definition 56mm Diameter High-definition Signal Combination Slip Ring with 4-Channel Shielded Signal and 2-Channel 1080P High-Definition 56mm Diameter High-definition Signal Combination Slip Ring with 4-Channel Shielded Signal and 2-Channel 1080P High-Definition 56mm Diameter High-definition Signal Combination Slip Ring with 4-Channel Shielded Signal and 2-Channel 1080P High-Definition 56mm Diameter High-definition Signal Combination Slip Ring with 4-Channel Shielded Signal and 2-Channel 1080P High-Definition 56mm Diameter High-definition Signal Combination Slip Ring with 4-Channel Shielded Signal and 2-Channel 1080P High-Definition

Large Image :  56mm Diameter High-definition Signal Combination Slip Ring with 4-Channel Shielded Signal and 2-Channel 1080P High-Definition

Product Details:
Place of Origin: China
Brand Name: GUREN
Certification: ISO9001.CE.ROHS
Model Number: SX56F-11P-E0205
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: ＄19-199
Packaging Details: Standard/On Request
Delivery Time: 3 weeks ARO
Payment Terms: L/C,D/A,D/P,T/T
Supply Ability: 1K units/week
Contact Now Chat Now

56mm Diameter High-definition Signal Combination Slip Ring with 4-Channel Shielded Signal and 2-Channel 1080P High-Definition

Description
Outer Diameter: 56mm Inner Diameter: No Inner Hole
Contact Material: Gold-Gold Aisle: 4-way 15A/4-way Signal/One High-definition Signal
Circuit: 11-way Speed: 0-250rpm
Highlight:

4-channel shielded signal Combination Slip Ring

,

2-channel 1080P high-definition Through Bore Electrical Slip Ring

,

56mm diameter High-definition signal combination slip ring

High-definition Signal Combination Slip Ring, 4-channel Shielded Signal, 2-channel 1080P High-definition Channels
This high-performance slip ring is designed for complex rotating systems requiring simultaneous transmission of high-current power, control signals, and high-definition video. It integrates four 15A high-current channels, four shielded signal channels, and two 1080P high-definition channels in a compact 56mm diameter housing, solving the challenge of synchronous power supply, signal control, and HD video transmission during rotation.
Key Features
  • Three-in-one integration: Simultaneous transmission of power (4 channels 15A), shielded signals (4 channels), and HD video (2 channels 1080P)
  • Zero-latency HD vision: Two independent 1080P channels ensure stable, delay-free video for real-time monitoring
  • High-current support: Four 15A channels power high-demand equipment like motors and actuators
  • Compact design: 56mm aluminum alloy housing with excellent heat dissipation and EMI shielding, supports speeds up to 250RPM
Performance Parameters
Parameter Value
Dielectric strength 300VCA@50Hz,60s
Insulation resistance ≥500MΩ/300VDC
Dynamic resistance change value ＜0.01Ω
Rated voltage 0～220VDC/VAC
Wire Specifications Teflon wire
Wire length Rotor 300mm; stator 300mm (reference value)
Operating temperature -30℃～+70℃
Operating humidity 0～85%RH
Protection level IP51
Shell material Aluminum alloy
Rotational torque 0.05N.m,+0.01N.m/6-way
Service life 20 million rpm
Product Dimensions
56mm Diameter High-definition Signal Combination Slip Ring with 4-Channel Shielded Signal and 2-Channel 1080P High-Definition 0
Applications
  • HD visual inspection systems: Power and signal transmission for rotating industrial cameras
  • Intelligent monitoring: Power and video transmission for 360° rotating surveillance cameras
  • Medical equipment: Signal transmission for rotating parts in CT scanners and X-ray machines
  • Industrial robots: HD visual feedback and power transmission at robot joints
Frequently Asked Questions
Q1: Do the two 1080P HD channels support higher resolution video signals?
A: The standard version is optimized for 1080P. For 4K or higher resolutions, custom design is required. Contact our technical support for details.
Q2: Can the four 15A current channels be used in parallel for larger current?
A: Possible with thermal design evaluation. We recommend consulting our engineers for professional parallel connection solutions.
Q3: What is the expected lifespan at 250 RPM?
A: Standard lifespan exceeds 50 million revolutions with precious metal contacts and lubrication. Actual lifespan varies by operating conditions.
