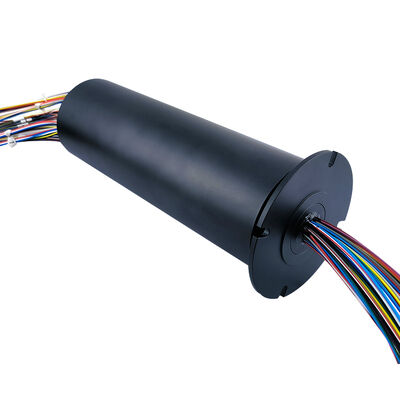

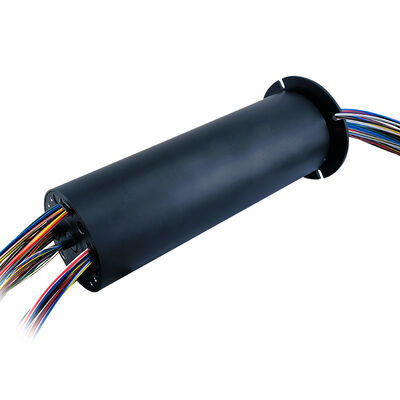

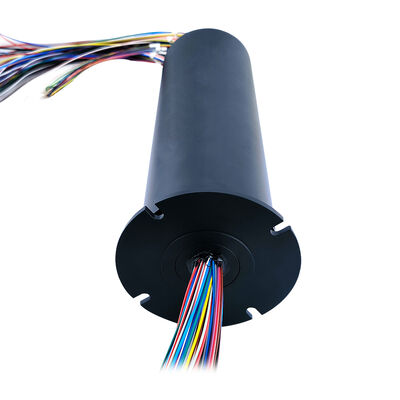

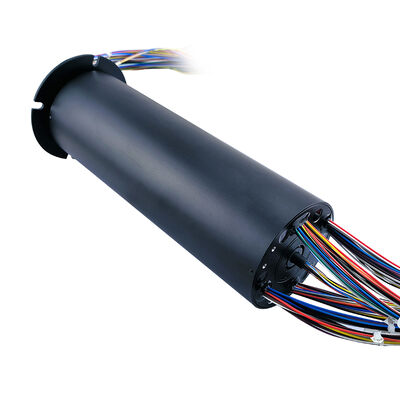

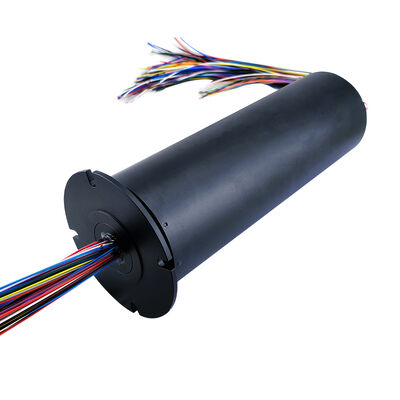

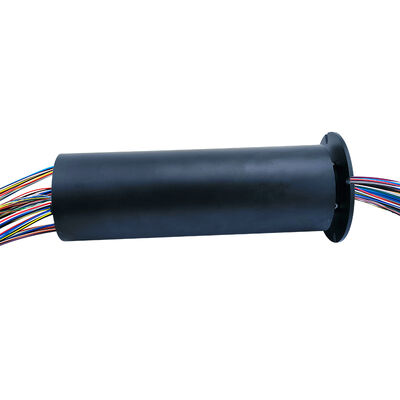

130-channel electric slip ring with 86mm outer diameter and 100 high-current 5A channels for industrial applications

130-channel electric slip ring with 86mm outer diameter and 100 high-current 5A channels for industrial applications
130-channel electric slip ring with 86mm outer diameter and 100 high-current 5A channels for industrial applications
130-channel electric slip ring with 86mm outer diameter and 100 high-current 5A channels for industrial applications 130-channel electric slip ring with 86mm outer diameter and 100 high-current 5A channels for industrial applications 130-channel electric slip ring with 86mm outer diameter and 100 high-current 5A channels for industrial applications 130-channel electric slip ring with 86mm outer diameter and 100 high-current 5A channels for industrial applications 130-channel electric slip ring with 86mm outer diameter and 100 high-current 5A channels for industrial applications 130-channel electric slip ring with 86mm outer diameter and 100 high-current 5A channels for industrial applications 130-channel electric slip ring with 86mm outer diameter and 100 high-current 5A channels for industrial applications

Large Image :  130-channel electric slip ring with 86mm outer diameter and 100 high-current 5A channels for industrial applications

Product Details:
Place of Origin: China
Brand Name: GUREN
Certification: ISO9001.CE.ROHS
Model Number: SX86F-130P-GRA0722
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: ＄19-199
Packaging Details: Standard/On Request
Delivery Time: 3 weeks ARO
Payment Terms: L/C,D/A,D/P,T/T
Supply Ability: 1K units/week
Contact Now Chat Now

130-channel electric slip ring with 86mm outer diameter and 100 high-current 5A channels for industrial applications

Description
Outer Diameter: 86mm Inner Diameter: Solid
Contact Material: Precious Metals Single Channel Current: 2A/5A
Circuit: 130-way Speed: 0-200rpm
Highlight:

86mm outer diameter electric slip ring

,

130-way circuit electric slip ring

,

100 high-current 5A channels slip ring

130-Channel Electric Slip Ring, Flange Mounting, 86mm Outer Diameter
This 130-channel slip ring features an innovative channel allocation design, integrating 100 high-current (5A) channels and 30 standard (2A) current channels within a compact 86mm diameter housing. Specifically designed for complex rotating systems requiring the transmission of large amounts of power and signals, it is an ideal choice for demanding industrial applications such as automated equipment, testing platforms, and heavy machinery.
Key Features
  • Intelligent Channel Configuration: 100 high-current 5A channels (meeting high power requirements) and 30 standard 2A channels (suitable for general loads)
  • High-Density Integration Design: 130 channels integrated within an 86mm outer diameter, demonstrating excellent space utilization efficiency
  • Powerful Power Transmission: The 100 5A channels can simultaneously power multiple high-power devices, offering excellent overall load capacity
  • Industrial-Grade Reliability: Aluminum alloy housing combined with flange mounting design ensures stable operation at 200RPM speeds
Performance Parameters
Parameter Value
Dielectric strength 300VCA@50Hz,60s
Insulation resistance ≥500MΩ/300VDC
Dynamic resistance change value ＜0.015Ω
Rated voltage 0～220VDC/VAC
Wire Specifications Teflon wire
Wire length Rotor 300mm; stator 300mm (reference value)
Operating temperature -30℃～+80℃
Operating humidity 0～85%RH
Protection level IP51
Shell material Aluminum alloy
Rotational torque 0.05N.m,+0.01N.m/6-way
Service life 20 million rpm
Product Dimensions
130-channel electric slip ring with 86mm outer diameter and 100 high-current 5A channels for industrial applications 0
Applications
  • Large-scale automated production lines: Power and signal transmission for multi-axis robot systems and complex assembly lines
  • Testing and measurement equipment: Integrated cabling for multi-channel data acquisition systems and rotating test platforms
  • Heavy machinery: Complex electrical systems for mining and construction machinery
  • Intelligent warehousing systems: Power distribution for large stacker cranes and rotating racks
Frequently Asked Questions
Q1: Can 100 5A channels operate at full load simultaneously?
The product design supports simultaneous operation of all channels. However, it is recommended to consider overall power balance and heat dissipation in practical applications. For continuous full-load operation, please consult our technical support for optimization solutions.
Q2: Can all 130 channels be used for signal transmission?
All channels support power transmission, with 2A channels particularly suitable for mixed transmission of power and control signals. For high-speed data signals, it is recommended to reserve a dedicated shielded channel.
Q3: What are the specific dimensions and standards for flange installation?
We provide detailed flange installation drawings, including complete information such as mounting hole positions and tolerance requirements. Please contact our technical staff after selection to obtain relevant technical data.
