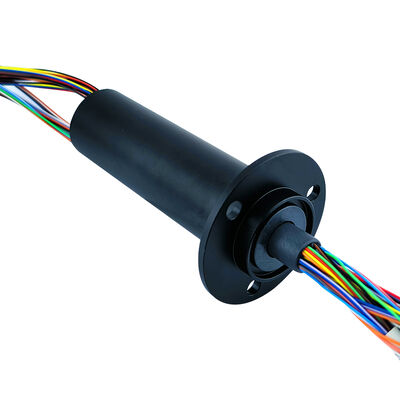

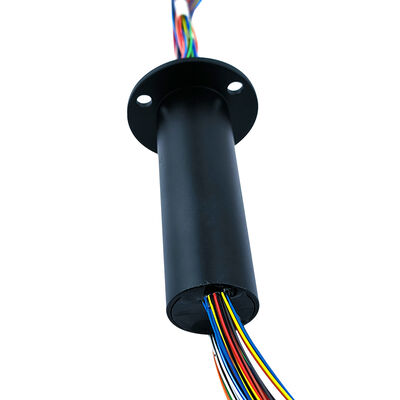

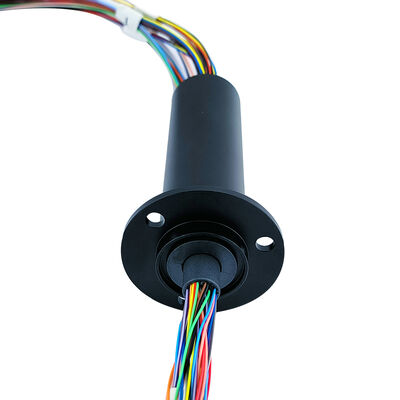

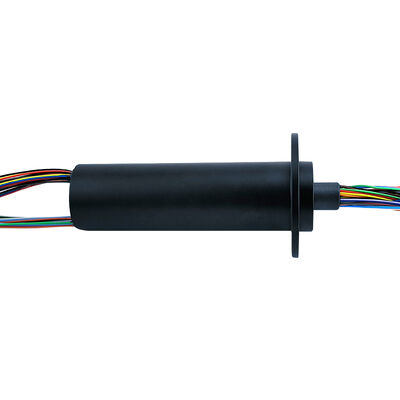

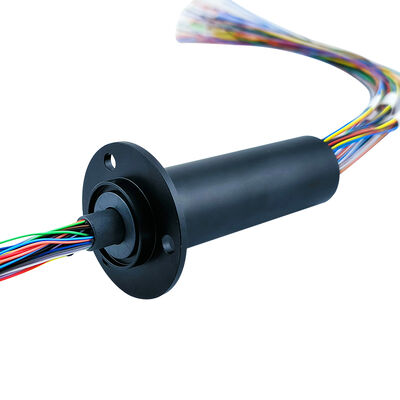

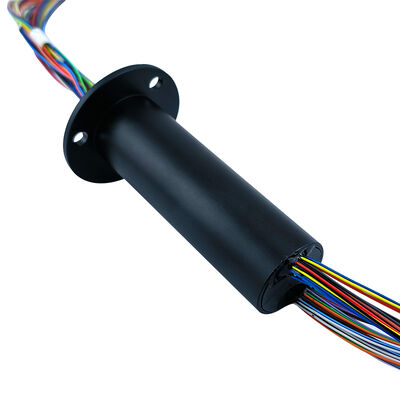

56-channel 2A Flange Slip Ring with Gold-Gold Contact for Precision Rotating Equipment

56-channel 2A Flange Slip Ring with Gold-Gold Contact for Precision Rotating Equipment
56-channel 2A Flange Slip Ring with Gold-Gold Contact for Precision Rotating Equipment
56-channel 2A Flange Slip Ring with Gold-Gold Contact for Precision Rotating Equipment 56-channel 2A Flange Slip Ring with Gold-Gold Contact for Precision Rotating Equipment 56-channel 2A Flange Slip Ring with Gold-Gold Contact for Precision Rotating Equipment 56-channel 2A Flange Slip Ring with Gold-Gold Contact for Precision Rotating Equipment 56-channel 2A Flange Slip Ring with Gold-Gold Contact for Precision Rotating Equipment 56-channel 2A Flange Slip Ring with Gold-Gold Contact for Precision Rotating Equipment 56-channel 2A Flange Slip Ring with Gold-Gold Contact for Precision Rotating Equipment

Large Image :  56-channel 2A Flange Slip Ring with Gold-Gold Contact for Precision Rotating Equipment

Product Details:
Place of Origin: China
Brand Name: GUREN
Certification: ISO9001.CE.RoHS
Model Number: WX25-56PS
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: ＄19-199
Packaging Details: Standard/On Request
Delivery Time: 3 weeks ARO
Payment Terms: L/C,D/A,D/P,T/T
Supply Ability: 1K units/week
Contact Now Chat Now

56-channel 2A Flange Slip Ring with Gold-Gold Contact for Precision Rotating Equipment

Description
Outer Diameter: 25mm Length: 95mm
Number Of Circuits: 56-way 2A Contact Material: Gold-Gold
Service Life: 2 Million Rpm Wire Specifications: AWG28# Teflon Wire
Highlight:

56-channel Flange Slip Ring

,

2A current Conductive Slip Ring

,

Gold-Gold contact Rotary Electrical Connector

56-channel 2A Flange Slip Ring
This 56-channel 2A high-density flange slip ring is designed for precision rotating equipment requiring the transmission of multiple signals and power. The product features a 56-channel integrated design, with each channel supporting 2A current and a maximum speed of 250RPM. The core contact points use gold-to-gold material, paired with AWG28# Teflon wire, ensuring stable and reliable power and signal transmission at a 240V operating voltage.
Key Features
  • High-density channel design: Integrates 56 independent channels, each capable of carrying 2A of current, meeting the needs of parallel multi-signal transmission.
  • Gold-to-gold contact protection: Employs gold-to-gold contact points to effectively reduce contact resistance, ensuring signal transmission stability and long lifespan.
  • Premium cable configuration: Uses AWG28# Teflon wire, resistant to high temperatures and corrosion, ensuring reliable electrical connections.
  • High-performance dynamic transmission: Supports 250RPM speed; aluminum alloy casing provides excellent heat dissipation and mechanical protection.
Technical Specifications
Parameter Value
Dielectric strength 300VCA@50Hz,60s
Insulation resistance ≥500MΩ/300VDC
Dynamic resistance change value ＜0.01Ω
Rated voltage 0～240VDC/VAC
Wire Specifications AWG28#Teflon wire
Wire length Rotor 250mm; stator 250mm (reference value)
Operating temperature -30℃～+70℃
Operating humidity 0～85%RH
Protection level IP51
Shell material Aluminum alloy
Rotational torque 0.05N.m,+0.01N.m/6-way
Service life 2 million rpm
Product Dimensions
56-channel 2A Flange Slip Ring with Gold-Gold Contact for Precision Rotating Equipment 0
Applications
  • Precision testing equipment: Multi-channel data acquisition system, rotary testing platform.
  • Automation control systems: Multi-sensor devices, industrial robot rotary joints.
  • Medical equipment: Rotary CT scanner, medical testing instruments.
  • Communication equipment: Radar system, antenna rotation connection device.
Frequently Asked Questions
Q1: What are the advantages of gold-gold contacts compared to other materials?
A: Gold-gold contacts offer excellent conductivity and oxidation resistance, resulting in lower and more stable contact resistance, significantly improving product lifespan and transmission reliability.
Q2: Can all 56 channels operate at full load simultaneously?
A: Yes, the product design supports all channels operating at 2A simultaneously. It is recommended to consider overall heat dissipation in practical applications. For continuous full-load operation, please consult technical support.
Q3: Does the product support higher operating voltages?
A: The standard version of this product is optimized for 240V. For higher operating voltages, we can provide customized solutions. Please contact technical support for details.
