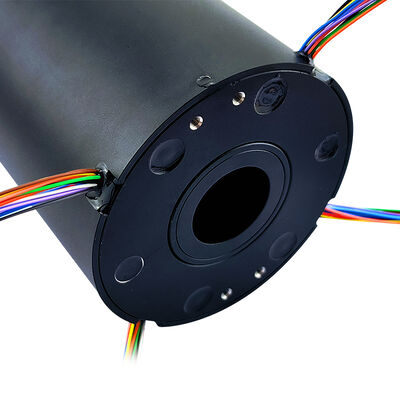

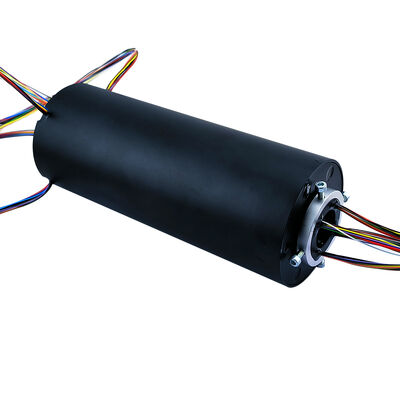

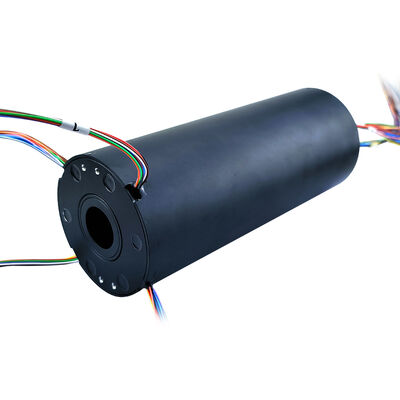

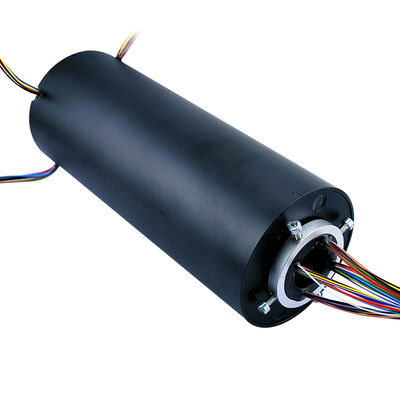

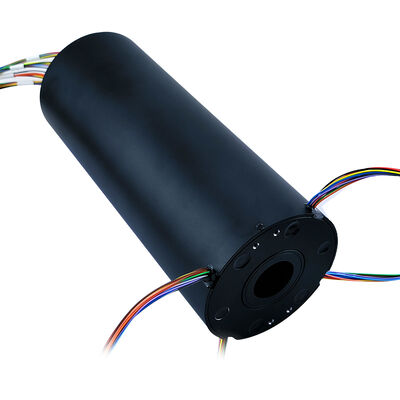

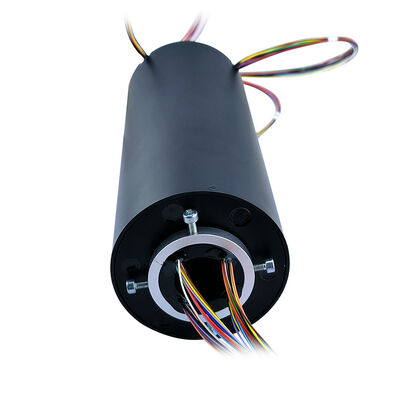

50-way Through Bore Electrical Slip Ring with 25.4mm Inner Diameter and Aluminum Alloy Housing for Precision Rotating Systems

50-way Through Bore Electrical Slip Ring with 25.4mm Inner Diameter and Aluminum Alloy Housing for Precision Rotating Systems
50-way Through Bore Electrical Slip Ring with 25.4mm Inner Diameter and Aluminum Alloy Housing for Precision Rotating Systems
50-way Through Bore Electrical Slip Ring with 25.4mm Inner Diameter and Aluminum Alloy Housing for Precision Rotating Systems 50-way Through Bore Electrical Slip Ring with 25.4mm Inner Diameter and Aluminum Alloy Housing for Precision Rotating Systems 50-way Through Bore Electrical Slip Ring with 25.4mm Inner Diameter and Aluminum Alloy Housing for Precision Rotating Systems 50-way Through Bore Electrical Slip Ring with 25.4mm Inner Diameter and Aluminum Alloy Housing for Precision Rotating Systems 50-way Through Bore Electrical Slip Ring with 25.4mm Inner Diameter and Aluminum Alloy Housing for Precision Rotating Systems 50-way Through Bore Electrical Slip Ring with 25.4mm Inner Diameter and Aluminum Alloy Housing for Precision Rotating Systems 50-way Through Bore Electrical Slip Ring with 25.4mm Inner Diameter and Aluminum Alloy Housing for Precision Rotating Systems 50-way Through Bore Electrical Slip Ring with 25.4mm Inner Diameter and Aluminum Alloy Housing for Precision Rotating Systems

Large Image :  50-way Through Bore Electrical Slip Ring with 25.4mm Inner Diameter and Aluminum Alloy Housing for Precision Rotating Systems

Product Details:
Place of Origin: China
Brand Name: GUREN
Certification: ISO9001.CE.ROHS
Model Number: GK2586-50PS-A6448
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: ＄19-199
Packaging Details: Standard/On Request
Delivery Time: 3 weeks ARO
Payment Terms: L/C,D/A,D/P,T/T
Supply Ability: 1K units/week
Contact Now Chat Now

50-way Through Bore Electrical Slip Ring with 25.4mm Inner Diameter and Aluminum Alloy Housing for Precision Rotating Systems

Description
Outer Diameter: 86mm Inner Diameter: 25.4mm
Contact Material: Precious Metals Single Channel Current: 2A
Circuit: 50-way Speed: 0-200rpm
Highlight:

50-way Through Bore Electrical Slip Ring

,

25.4mm Inner Diameter Hollow Slip Ring

,

Aluminum Alloy Housing Rotary Electrical Connector

50-Way 2A Through-Hole Slip Ring
The 50-channel 2A through-hole slip ring is engineered for precision rotating systems requiring simultaneous transmission of multiple signals and moderate power. Featuring an aluminum alloy housing and standard 25.4mm (1-inch) through-hole, this product integrates up to 50 independent channels. Each channel utilizes precious metal contact materials, enabling stable transmission of 2A current or various control signals. It supports 220V operating voltage and 200 RPM rotation speed, making it an ideal connection solution for automation equipment, test platforms, and multi-sensor systems.
Key Features
  • Ultra-high channel density: Integrates 50 independent channels within limited space, meeting stringent requirements for multi-signal parallel transmission in complex equipment.
  • Multifunctional hybrid transmission: Each channel can transmit 2A current and also be used for sensor signals, encoder data, and other control signals.
  • Standard through-hole design: 25.4mm inner diameter provides convenient central routing for air pipes, cables, and mechanical components.
  • Stable and reliable performance: Precious metal contacts ensure low resistance and long lifespan; supports 200 RPM rotation speed and 220V voltage for industrial applications.
Performance Parameters
Dielectric strength 500VCA@50Hz,60s
Insulation resistance ≥1000MΩ/500VDC
Dynamic resistance change value ＜0.01Ω
Rated voltage 0～220VDC/VAC
Wire Specifications AWG26#Teflon wire
Wire length Rotor 300mm; stator 300mm (reference value)
Operating temperature -30℃～+80℃
Operating humidity 0～85%RH
Shell material Aluminum alloy
Rotational torque 0.05N.m,+0.01N.m/6-way
Service life 20 million rpm
Product Dimensions
50-way Through Bore Electrical Slip Ring with 25.4mm Inner Diameter and Aluminum Alloy Housing for Precision Rotating Systems 0
Applications
  • Multi-axis robotic systems: Centralized transmission of numerous servo motor encoder signals and power at robot joints
  • Precision test turntables: Test equipment requiring synchronous acquisition of multiple sensor data and excitation power
  • High-end automation equipment: Signal and power supply for multi-functional rotating modules in semiconductor equipment and medical instruments
  • Radar and communication equipment: Transmission of multi-channel signals and control power on rotating bases
Frequently Asked Questions
Q1: Can all 50 channels operate simultaneously at a full load of 2A?
The product design allows all channels to operate simultaneously. However, in practical applications, total power consumption and temperature rise need to be considered. We recommend evaluating the overall thermal design or consulting our technical support for optimal configuration.
Q2: What precautions should be taken when using this product for transmitting high-speed data signals (such as Ethernet)?
The channels of this product are suitable for medium and low-speed signals and power transmission. For high-speed data protocols, we recommend using dedicated shielded pairs and conducting signal integrity testing in advance. We can provide corresponding technical support and customized solutions.
Q3: Besides wiring, are there any other uses for the 25.4mm through-hole?
Yes. In addition to passing cables, this through-hole is also commonly used for passing small air tubes, hydraulic pipes, laser beams, or as an installation channel for other mechanical structures, enabling a high degree of equipment function integration.

Tag:

hollow slip ring,

electrical through hole slip ring,

Conductive Slip Ring
