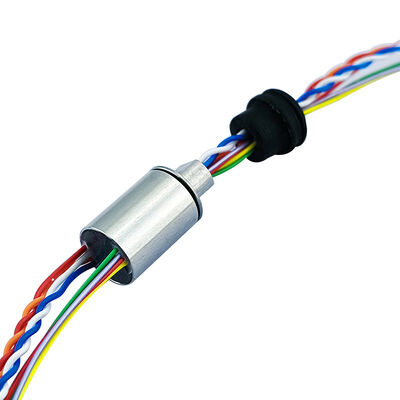

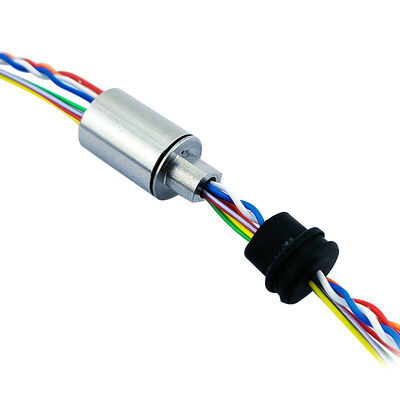

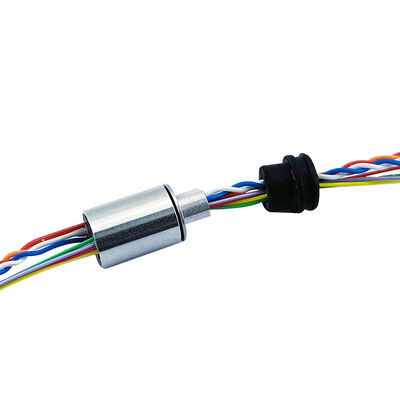

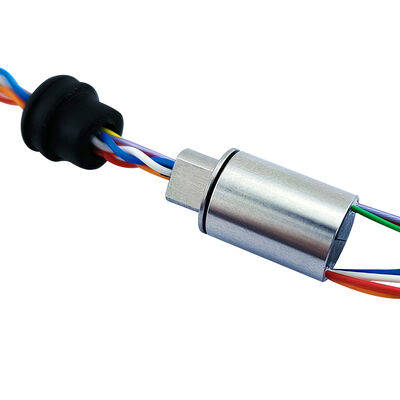

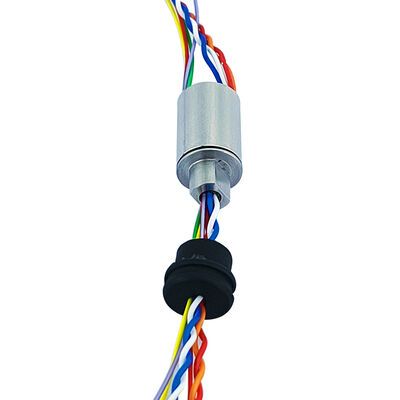

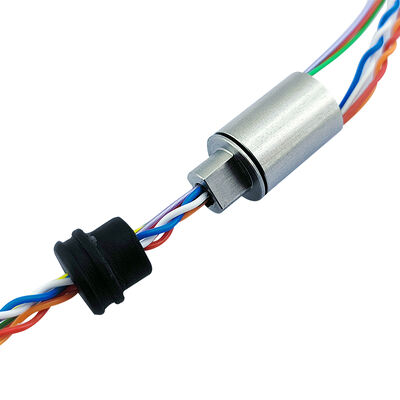

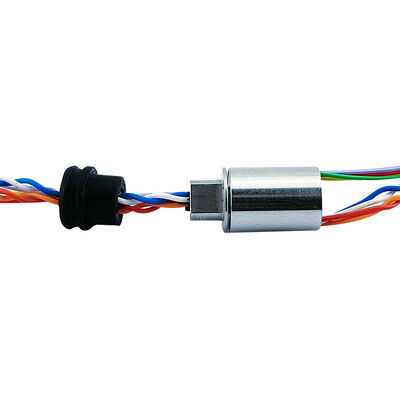

Stainless Steel Signal Slip Ring with 10mm Outer Diameter, 8 Signal Channels, and Gold-Gold Contacts for Precision Instruments

Stainless Steel Signal Slip Ring with 10mm Outer Diameter, 8 Signal Channels, and Gold-Gold Contacts for Precision Instruments
Stainless Steel Signal Slip Ring with 10mm Outer Diameter, 8 Signal Channels, and Gold-Gold Contacts for Precision Instruments
Stainless Steel Signal Slip Ring with 10mm Outer Diameter, 8 Signal Channels, and Gold-Gold Contacts for Precision Instruments Stainless Steel Signal Slip Ring with 10mm Outer Diameter, 8 Signal Channels, and Gold-Gold Contacts for Precision Instruments Stainless Steel Signal Slip Ring with 10mm Outer Diameter, 8 Signal Channels, and Gold-Gold Contacts for Precision Instruments Stainless Steel Signal Slip Ring with 10mm Outer Diameter, 8 Signal Channels, and Gold-Gold Contacts for Precision Instruments Stainless Steel Signal Slip Ring with 10mm Outer Diameter, 8 Signal Channels, and Gold-Gold Contacts for Precision Instruments Stainless Steel Signal Slip Ring with 10mm Outer Diameter, 8 Signal Channels, and Gold-Gold Contacts for Precision Instruments Stainless Steel Signal Slip Ring with 10mm Outer Diameter, 8 Signal Channels, and Gold-Gold Contacts for Precision Instruments Stainless Steel Signal Slip Ring with 10mm Outer Diameter, 8 Signal Channels, and Gold-Gold Contacts for Precision Instruments Stainless Steel Signal Slip Ring with 10mm Outer Diameter, 8 Signal Channels, and Gold-Gold Contacts for Precision Instruments

Large Image :  Stainless Steel Signal Slip Ring with 10mm Outer Diameter, 8 Signal Channels, and Gold-Gold Contacts for Precision Instruments

Product Details:
Place of Origin: China
Brand Name: GUREN
Certification: ISO9001.CE.RoHS
Model Number: WX10-8PS-GRA0540
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: ＄19-199
Packaging Details: Standard/On Request
Delivery Time: 2 weeks ARO
Payment Terms: L/C,D/P,T/T
Supply Ability: 10K units/week
Contact Now Chat Now

Stainless Steel Signal Slip Ring with 10mm Outer Diameter, 8 Signal Channels, and Gold-Gold Contacts for Precision Instruments

Description
Outer Diameter: 10mm Speed: 0-50rpm
Number Of Channels: 8 Signal Channels Length: 19.6mm
Voltage: 0-120V Contact Materials: Gold-Gold
Highlight:

10mm Outer Diameter Signal Slip Ring

,

8 Signal Channels Capsule Slip Ring

,

Gold-Gold Contacts Miniature Slip Ring

Stainless Steel Signal Slip Ring
This miniature stainless steel signal slip ring is engineered for precision instruments and micro-devices. It integrates eight high-quality signal channels within an ultra-compact 10mm outer diameter stainless steel housing. Featuring two independent CAT-5E compliant twisted-pair sets, it enables stable transmission of high-speed differential signals including 100Mbps Ethernet. With gold-to-gold contacts, a rotational lifespan of 1 million rotations, operating voltage up to 120V, and design speed of 50 RPM, it's ideal for precision rotating connections where space is limited and high signal integrity is essential.
Key Features
  • Ultra-miniature design: 10mm outer diameter makes it one of the industry's smallest slip ring solutions, perfect for miniature robots and precision medical devices
  • High-speed network signal transmission: Built-in CAT-5E twisted-pair wires support lossless 100Mbps Ethernet and other high-speed differential signals
  • Gold-to-gold contacts with 1 million rotation lifespan: Ensures ultra-low, stable contact resistance for maintenance-free operation
  • All-stainless steel housing: Provides excellent mechanical strength, wear resistance, and corrosion resistance for demanding environments
Technical Specifications
Parameter Value
Dielectric strength 100VCA@50Hz,60s
Insulation resistance ≥100MΩ/150VDC
Dynamic resistance change value ＜10mΩ
Rated voltage 0～120VDC/VAC
Wire Specifications Teflon wire
Wire length Rotor 180mm; stator 180mm (customizable)
Operating temperature -30℃～+80℃
Operating humidity 0～85%RH
Protection level IP51
Shell material Engineering plastic + stainless steel
Rotational torque 0.05N.m,+0.01N.m/6-way
Service life 1 million rpm
Product Dimensions
Stainless Steel Signal Slip Ring with 10mm Outer Diameter, 8 Signal Channels, and Gold-Gold Contacts for Precision Instruments 0
Applications
  • Micro-robots and dexterous hands: Joint signal and data transmission for surgical robots and precision assembly robots
  • High-end medical equipment: Image signal transmission for rotating endoscopes and optical coherence tomography (OCT) devices
  • Precision optical and detection instruments: High-speed data feedback within gimbal cameras, LiDAR rotating heads, and spectrometers
  • Special industrial inspection equipment: Signal and power connections for miniature rotating probes and online inspection sensor modules
Frequently Asked Questions
Can two sets of CAT-5E standard twisted-pair cables be used to transmit Gigabit Ethernet (1000BASE-T)?
CAT-5E standard theoretically supports Gigabit Ethernet over short distances, but actual performance is limited by parameters such as insertion loss and crosstalk of the slip ring. This product is optimized and guaranteed for 100Mbps Ethernet and similar speed signals. For Gigabit applications, we recommend conducting actual tests or contacting us to evaluate and customize a higher-specification solution.
Under what test conditions is the 1 million revolution lifespan obtained?
This lifespan indicator is the average number of revolutions without failure, obtained through continuous or intermittent testing according to relevant standards under rated speed (50RPM), rated electrical load, and standard environment. Actual service life may vary due to factors such as load, environment, and installation concentricity.
Does the stainless steel casing affect electromagnetic shielding performance?
Stainless steel itself is a conductor and can provide a certain degree of electromagnetic shielding (EMI). For applications with higher shielding requirements (such as preventing extremely high-frequency interference), we can use additional shielding designs in the internal wiring harness and structure. Please specify your requirements at the initial design stage.

Tag:

electrical capsule slip rings,

miniature slip ring,

electrical collector ring
