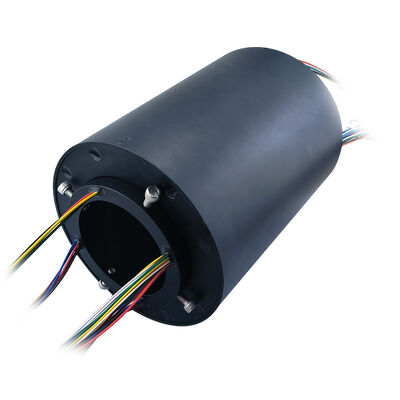

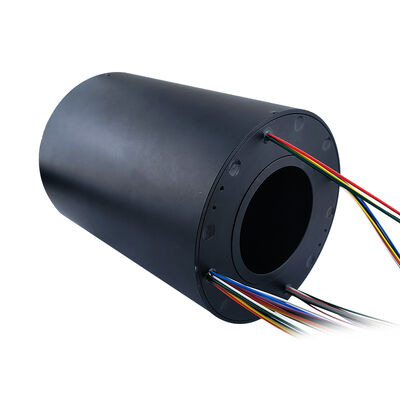

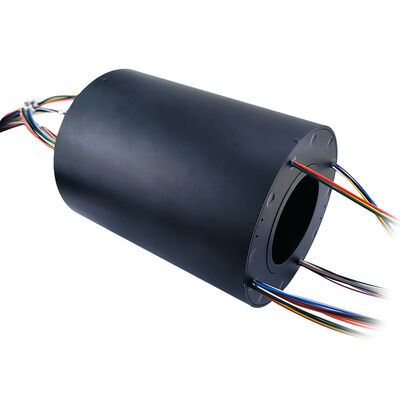

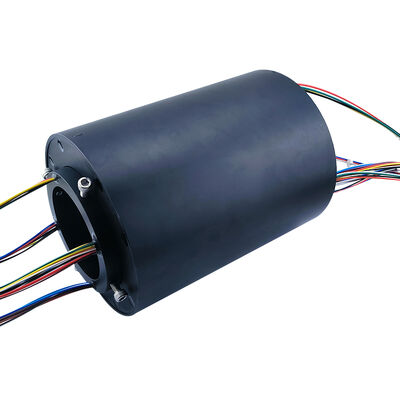

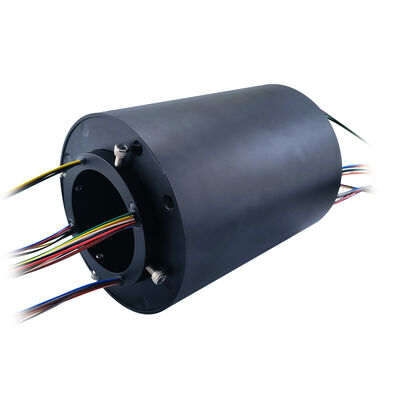

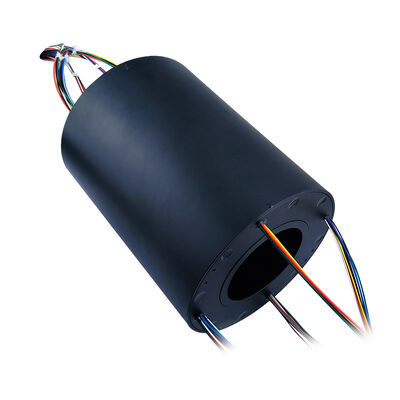

42-way Through Bore Electrical Slip Ring with Black Aluminum Alloy Housing and 250 RPM Speed

42-way Through Bore Electrical Slip Ring with Black Aluminum Alloy Housing and 250 RPM Speed
42-way Through Bore Electrical Slip Ring with Black Aluminum Alloy Housing and 250 RPM Speed
42-way Through Bore Electrical Slip Ring with Black Aluminum Alloy Housing and 250 RPM Speed 42-way Through Bore Electrical Slip Ring with Black Aluminum Alloy Housing and 250 RPM Speed 42-way Through Bore Electrical Slip Ring with Black Aluminum Alloy Housing and 250 RPM Speed 42-way Through Bore Electrical Slip Ring with Black Aluminum Alloy Housing and 250 RPM Speed 42-way Through Bore Electrical Slip Ring with Black Aluminum Alloy Housing and 250 RPM Speed 42-way Through Bore Electrical Slip Ring with Black Aluminum Alloy Housing and 250 RPM Speed 42-way Through Bore Electrical Slip Ring with Black Aluminum Alloy Housing and 250 RPM Speed

Large Image :  42-way Through Bore Electrical Slip Ring with Black Aluminum Alloy Housing and 250 RPM Speed

Product Details:
Place of Origin: China
Brand Name: GUREN
Certification: ISO9001.CE.ROHS
Model Number: GK80158-42P-GRA0389
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: ＄19-199
Packaging Details: Standard/On Request
Delivery Time: 3 weeks ARO
Payment Terms: L/C,D/A,D/P,T/T
Supply Ability: 1K units/week
Contact Now Chat Now

42-way Through Bore Electrical Slip Ring with Black Aluminum Alloy Housing and 250 RPM Speed

Description
Outer Diameter: 158mm Inner Diameter: 80mm
Contact Material: Precious Metals Circuit: 42-way
Speed: 0-250rpm High: 205mm
Highlight:

42-way Electrical Slip Ring

,

Black Aluminum Alloy Housing Rotary Electrical Connector

,

250 RPM Through Bore Electrical Slip Ring

42-Way Through-Hole Electrical Slip Ring
The 42-channel through-hole electrical slip ring is an industrial-grade component with high channel count, designed for complex rotating equipment requiring centralized distribution of multiple power levels. Featuring a black aluminum alloy housing and standard through-hole structure with IP51 protection rating, it provides intelligent graded configuration of 42 channels (4 channels at 10A/8 channels at 5A/30 channels at 2A). Standard 2000mm leads at both ends simplify on-site wiring. Supporting 220V operating voltage and 250 RPM rotation speed, it serves as an ideal power distribution and signal transmission hub for multi-motor equipment and large test benches.
Key Features
  • Intelligent Graded Power Distribution: Channels divided into three levels (10A, 5A, 2A) for precise load matching, efficient energy distribution, and overload protection
  • Pre-Wired with Extra-Long Cables: Both ends feature 2000mm leads, saving installation time and costs while improving integration efficiency
  • High Channel Density & Dynamic Performance: 42 independent channels support 250 RPM rotation speed for multi-channel power and signal synchronous transmission
  • Industrial-Grade Protection & Heat Dissipation: Black aluminum alloy casing provides electromagnetic shielding and heat dissipation with IP51 rating for dust and water droplet protection
Performance Parameters
Parameter Value
Dielectric strength 300VCA@50Hz,60s
Insulation resistance ≥500MΩ/300VDC
Dynamic resistance change value ＜0.01Ω
Rated voltage 0～220VDC/VAC
Wire Specifications Teflon wire
Wire length Rotor 300mm; stator 300mm (reference value)
Operating temperature -30℃～+80℃
Operating humidity 0～85%RH
Shell material Aluminum alloy
Rotational torque 0.05N.m,+0.01N.m/6-way
Service life 20 million rpm
Product Dimensions
42-way Through Bore Electrical Slip Ring with Black Aluminum Alloy Housing and 250 RPM Speed 0
Applications
  • Multi-axis automation systems and production lines: Centralized power supply for multiple servo motors, pneumatic valve islands, and sensors in large rotating workstations on automotive welding and assembly lines
  • Large-scale testing and measurement equipment: Power loading and signal feedback for multi-channel rotating test benches used in aerospace and automotive parts testing
  • Intelligent logistics sorting systems: Power distribution for numerous motors, scanners, and indicator lights on the rotating units of large cross-belt sorters
  • Heavy engineering machinery: Power and control signal transmission for various electrical equipment on the rotating platforms of port cranes and mining equipment
Frequently Asked Questions
Can the 30-channel 2A slip ring be used to transmit signals from encoders, sensors, etc.?
Absolutely. The 2A current capacity allows it to power low-power devices and fully meets the current requirements of most industrial sensors, encoders, and communication modules (such as RS485), making it ideal for mixed transmission of power and control signals.
What are the specifications of the 2000mm lead wires at both ends? Can the length be customized?
The lead wires typically use industrial-grade flexible cables that meet the current rating. 2000mm is the standard factory length. If you have special requirements for length, color, or connectors (such as aviation connectors), we can provide customized services. Please confirm with our sales engineer before ordering.
Will there be any heat dissipation problems if all 42 channels are running at full load simultaneously at 250 RPM?
The product design has taken full-load heat dissipation into account. The black aluminum alloy casing plays a crucial role in heat dissipation. Under normal industrial ambient temperatures, rated performance is guaranteed. If used in high-temperature environments or confined spaces, we recommend providing specific operating conditions so that we can conduct a detailed thermal assessment.
