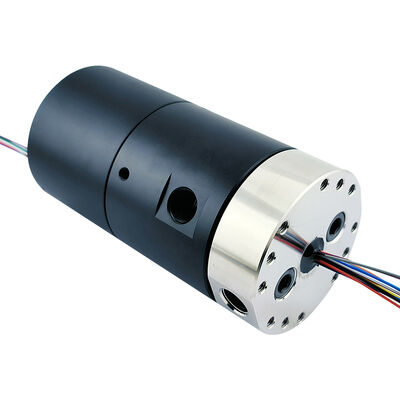

2-Channel Pneumatic and 12-Channel Electrical Slip Ring for Rotary Worktables with 200rpm Speed

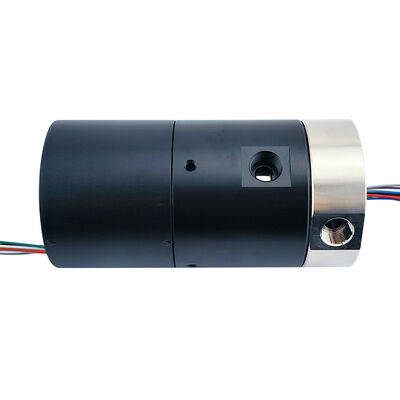

2-Channel Pneumatic and 12-Channel Electrical Slip Ring for Rotary Worktables with 200rpm Speed

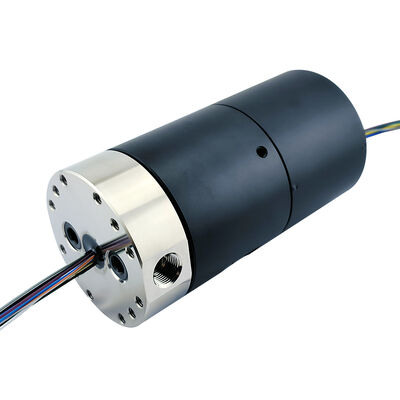

2-Channel Pneumatic and 12-Channel Electrical Slip Ring for Rotary Worktables with 200rpm Speed

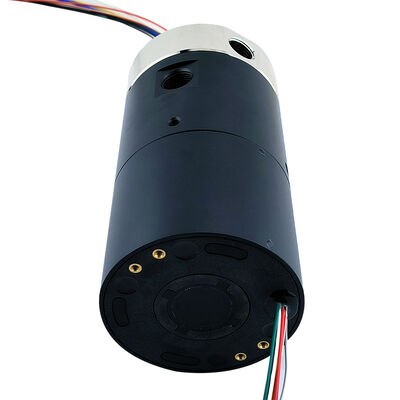

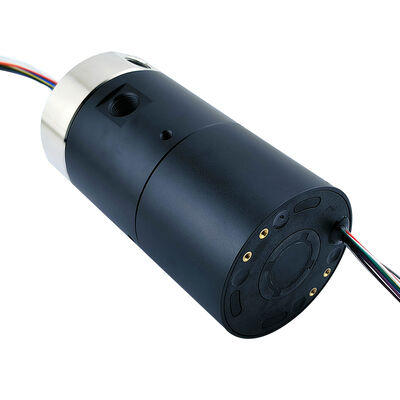

2-Channel Pneumatic and 12-Channel Electrical Slip Ring for Rotary Worktables with 200rpm Speed 2-Channel Pneumatic and 12-Channel Electrical Slip Ring for Rotary Worktables with 200rpm Speed 2-Channel Pneumatic and 12-Channel Electrical Slip Ring for Rotary Worktables with 200rpm Speed 2-Channel Pneumatic and 12-Channel Electrical Slip Ring for Rotary Worktables with 200rpm Speed 2-Channel Pneumatic and 12-Channel Electrical Slip Ring for Rotary Worktables with 200rpm Speed 2-Channel Pneumatic and 12-Channel Electrical Slip Ring for Rotary Worktables with 200rpm Speed 2-Channel Pneumatic and 12-Channel Electrical Slip Ring for Rotary Worktables with 200rpm Speed

Large Image :  2-Channel Pneumatic and 12-Channel Electrical Slip Ring for Rotary Worktables with 200rpm Speed

Product Details:
Place of Origin: china
Brand Name: GuRen
Certification: ISO9001.CE.RoHS
Model Number: Q2P03-12PS-GRC0049
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: ＄19-199
Packaging Details: Standard/On Request
Delivery Time: 3 weeks ARO
Payment Terms: L/C,D/P,T/T
Supply Ability: 1K units/week
Contact Now Chat Now

2-Channel Pneumatic and 12-Channel Electrical Slip Ring for Rotary Worktables with 200rpm Speed

Description
Air Channel: 2 Channel Applicable Trachea: 10-12mm
Protection Level: IP51 Number Of Circuits: 12-way 2A
Inner Diameter: Solid Outer Diameter: 86mm
Highlight:

2-channel pneumatic slip ring

,

12-channel electrical rotary joint

,

200rpm speed pneumatic-electric slip ring

2-Channel Pneumatic & 12-Channel Electric Slip Rings
High-performance pneumatic-electric rotary slip ring designed for automated equipment requiring simultaneous transmission of pneumatic power and multiple electrical signals. Ideal for rotary worktables and automated systems.
Product Overview
This integrated pneumatic-electric rotary slip ring features an aluminum alloy housing with two G3/8" large-diameter pneumatic channels and twelve 2A electrical channels within a compact 86mm outer diameter and 167.6mm length design. Supporting speeds up to 200rpm and 220V operating voltage, the pneumatic circuits withstand 0.8MPa air pressure, providing reliable integrated connection solutions for various industrial applications.
Key Features
  • Pneumatic-Electric Integration: Simultaneous 2 independent pneumatic controls and 12 power/signal transmission channels
  • Large-Diameter Pneumatic Circuit: 2 G3/8" standard interfaces supporting high-flow gas transmission
  • Multi-Channel Power Distribution: 12 independent circuits, each supporting 2A current for sensors and solenoid valves
  • Compact & Stable Design: 86mm outer diameter, stable operation at 200rpm for automation scenarios
Technical Specifications
Electrical Parameters Gas Parameters
Dielectric strength: 300VCA@50Hz,60s Number of trachea: 2 in 2 out
Insulation resistance: ≥1000MΩ/300VDC Pressure: -99KPa-0.8MPa or vacuum
Dynamic resistance change value: ＜10mΩ Rotational torque: <0.3N.m
Rated voltage: 0～220VDC/VAC Rotation speed: 200rpm
Wire Specifications: Teflon wire (current-dependent) Shell material: Aluminum Alloy
Wire length: Default 300mm (Customizable) Temperature: -30℃～+80℃
Contact material: Precious metal contacts Operating humidity: 0～85%RH
Protection level: IP51
Technical Drawings
2-Channel Pneumatic and 12-Channel Electrical Slip Ring for Rotary Worktables with 200rpm Speed 0
Application Scenarios
  • Automated assembly and testing equipment
  • Packaging and filling machinery
  • Material handling and palletizing equipment
  • Robot end effector (EOAT)
  • Rotary tables and indexing tables
Frequently Asked Questions
Can the two air channels be used simultaneously for air sources with different pressures?
Yes. The two air channels are completely independent. You can set different working pressures for each channel (both ≤0.8MPa) to meet the differentiated pressure requirements of different pneumatic actions.
Does the 12-channel 2A circuit support signal transmission (such as sensor signals)?
Yes. The 2A current capacity is more than sufficient for signal transmission. These channels are ideal for transmitting various industrial signals, such as proximity switches, photoelectric sensors, and solenoid valve control signals. For sensitive signals, it is recommended to use twisted-pair shielded cables.
What diameter of air hose does the G3/8" interface typically fit?
The G3/8" threaded interface typically uses air hoses with an outer diameter of 8mm or 10mm, connected via quick-connect fittings. The specific hose diameter needs to be selected based on the flow requirements of your pneumatic system.
What is the product's protection rating? Can it be used in dusty environments?
The standard model has basic dust and splash protection capabilities. For use in dusty environments, we can provide customized versions with IP54 or higher protection ratings to ensure that internal precision components are not contaminated.
Does the 167.6mm length include the leads at both ends?
This length is the total mechanical length of the slip ring body (excluding the leads at both ends). The standard lead length is usually 300mm, but can also be customized according to your actual installation distance for convenient on-site wiring.
