8-channel pneumatic and 56-way 2A electrical combined slip ring with 200 rpm speed for rotary applications

8-channel pneumatic and 56-way 2A electrical combined slip ring with 200 rpm speed for rotary applications
8-channel pneumatic and 56-way 2A electrical combined slip ring with 200 rpm speed for rotary applications
8-channel pneumatic and 56-way 2A electrical combined slip ring with 200 rpm speed for rotary applications 8-channel pneumatic and 56-way 2A electrical combined slip ring with 200 rpm speed for rotary applications 8-channel pneumatic and 56-way 2A electrical combined slip ring with 200 rpm speed for rotary applications 8-channel pneumatic and 56-way 2A electrical combined slip ring with 200 rpm speed for rotary applications 8-channel pneumatic and 56-way 2A electrical combined slip ring with 200 rpm speed for rotary applications 8-channel pneumatic and 56-way 2A electrical combined slip ring with 200 rpm speed for rotary applications 8-channel pneumatic and 56-way 2A electrical combined slip ring with 200 rpm speed for rotary applications

Large Image :  8-channel pneumatic and 56-way 2A electrical combined slip ring with 200 rpm speed for rotary applications

Product Details:
Place of Origin: china
Brand Name: GuRen
Certification: ISO9001.CE.RoHS
Model Number: Q8P03-56PS-A6347
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: ＄19-199
Packaging Details: Standard/On Request
Delivery Time: 3 weeks ARO
Payment Terms: L/C,D/P,T/T
Supply Ability: 1K units/week
Contact Now Chat Now

8-channel pneumatic and 56-way 2A electrical combined slip ring with 200 rpm speed for rotary applications

Description
Air Channel: 8 Channel Applicable Trachea: 10-12mm
Protection Level: IP51 Number Of Circuits: 56-way 2A
Inner Diameter: Solid Outer Diameter: 86mm

8-Channel Pneumatic-Electric Combination Slip Ring

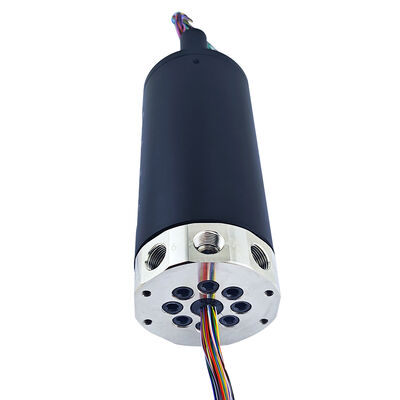

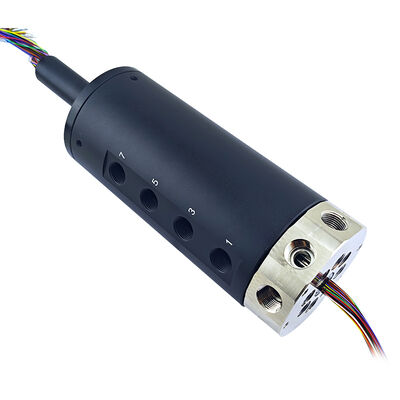

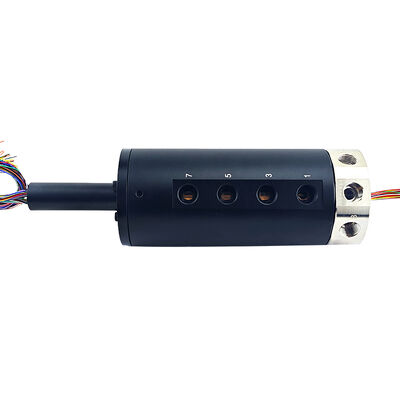

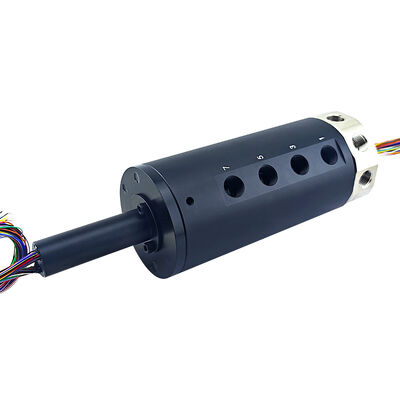

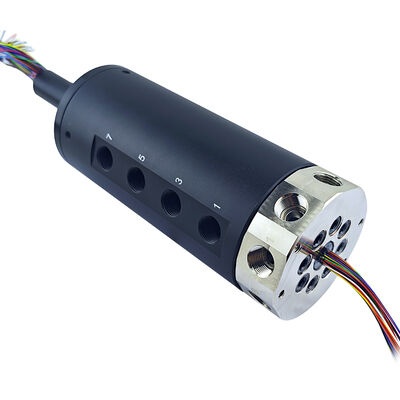

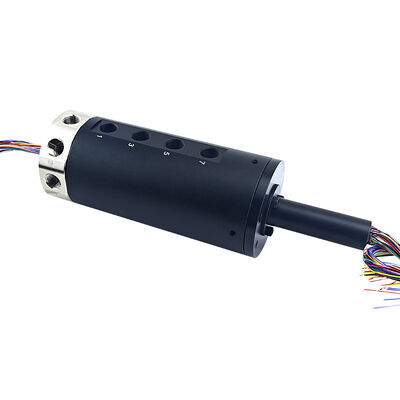

This 8-channel pneumatic-electric combined slip ring features a black aluminum alloy housing and integrates 8 high-flow pneumatic channels and 56 2A electrical channels within a compact body measuring 86mm in outer diameter and 284mm in length. Its G3/8" pneumatic interface supports a maximum pneumatic pressure of 0.8MPa, while the circuitry supports 380V high voltage and can operate stably at 200rpm. It provides an excellent integrated pneumatic-electric rotary connection solution for rotary tables, intelligent assembly lines, and robot joints.

Key Features
  • Compact design with ultra-high integration: 86mm outer diameter housing containing 8 independent pneumatic channels and 56 independent electrical channels
  • G3/8" high-flow pneumatic channels supporting 0.8MPa high-pressure gas for large-diameter cylinders or high-flow vacuum systems
  • 56-channel multi-aspect power distribution with 2A circuits and total current carrying capacity of 112A
  • Reduces complexity of parallel multi-device connections with plug-and-play modular installation
  • Perfect for sensor matrices, solenoid valve assemblies, and small-power motor applications
Technical Specifications
Electrical Parameters Gas Parameters
Dielectric strength: 300VCA@50Hz,60s Number of trachea: 8 in 8 out
Insulation resistance: ≥500MΩ/300VDC Pressure: -99KPa-0.8MPa
Dynamic resistance change value: ＜10mΩ Rotational torque: <0.3N.m
Rated voltage: 0～380VDC/VAC Rotation speed: 200rpm
Wire Specifications: Teflon wire (current-dependent) Shell material: Aluminum Alloy
Wire length: (Customizable) Temperature: -30℃～+80℃
Contact material: Precious metal contacts Operating humidity: 0～85%RH
Protection level: IP51
Technical Drawings
8-channel pneumatic and 56-way 2A electrical combined slip ring with 200 rpm speed for rotary applications 0
Application Scenarios
  • Multi-station rotary assembly lines: Used for pneumatic gripper control and station sensor signal acquisition in the assembly of automotive parts and electronic products.
  • Industrial robot end effectors: Provide an integrated solution for robot wrists, combining gripping (pneumatic path) and detection (circuit).
  • Semiconductor packaging and testing equipment: Provides vacuum adsorption (pneumatic path) and test signal (circuit) transmission for rotary tables in clean environments.
Frequently Asked Questions
Q1: Can all 56 electrical channels be used to transmit high-precision signals such as encoders?
Absolutely. The 2A current capacity is more than sufficient for encoder and RS485 signal transmission. For particularly sensitive weak signals, we can shield specific channels to enhance anti-interference capabilities.
Q2: Can the 8 pneumatic channels independently control different pressures?
Yes. The 8 pneumatic channels are completely independent internally. You can connect different pressure sources (not exceeding 0.8MPa) as needed to achieve differentiated control of different pneumatic components.
Q3: What is the product's lifespan when operating continuously at 200rpm?
Under rated operating conditions, the circuit components using precious metal contact materials and the pneumatic circuit components with high-quality seals are designed to have a lifespan of over 50 million revolutions, meeting the maintenance-free requirements of long-cycle industrial production.
