16-Channel Pneumatic 15-Way 5A Electrical Hybrid Slip Ring with Black Aluminum Alloy Housing

Description
Air Channel: 16 Channel Applicable Trachea: 6-8mm
Protection Level: IP51 Number Of Circuits: 15-way 5A
Outer Diameter: 86mm Length: 285.8 Mm

16-Channel Pneumatic-Electric Hybrid Slip Ring

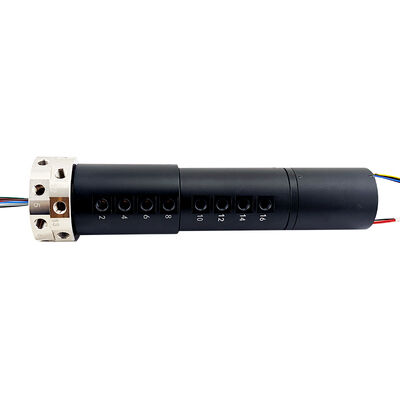

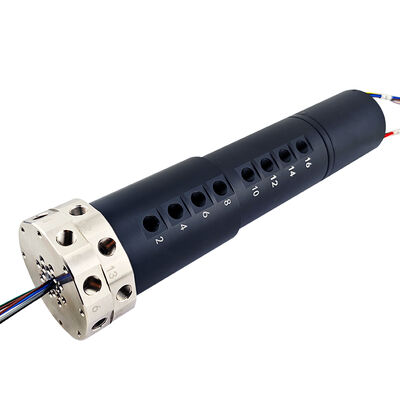

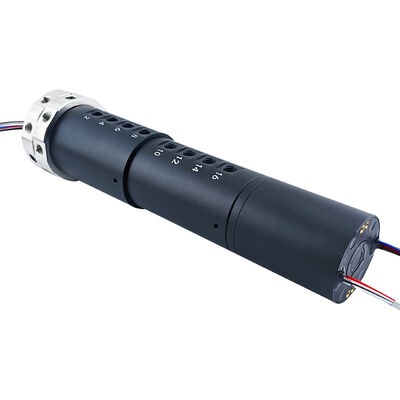

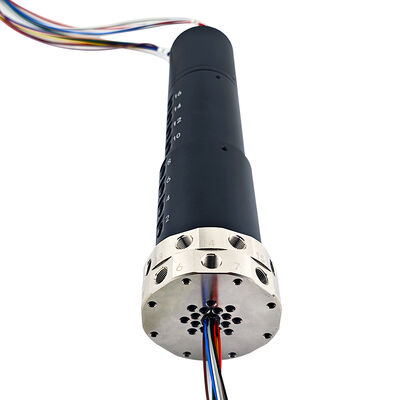

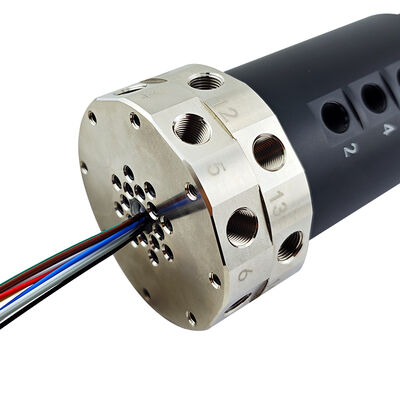

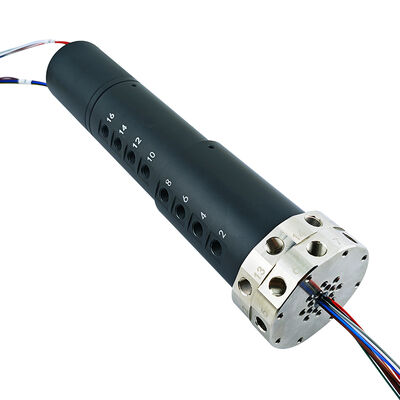

The 16-channel pneumatic-electric hybrid slip ring is engineered for complex automated equipment requiring simultaneous transmission of multiple pneumatic controls and high-voltage electricity. Featuring a black aluminum alloy housing, this compact unit integrates 16 independent pneumatic channels and 15 electrical channels within an 86mm outer diameter and 285mm length. With G1/8" standard pneumatic interfaces supporting up to 1MPa pressure and electrical circuits handling 380V operating voltage at 200rpm rotational speed, it provides an integrated rotary connection solution for robotic applications, rotary tables, packaging machinery, and more.
Key Features
  • 16+15 Ultra-High Integration: Integrates 16 independent pneumatic circuits and 15 independent electrical circuits (31 total channels), replacing traditional multi-device solutions to save space and simplify system architecture
  • 1MPa High-Pressure Pneumatic Design: All 16 pneumatic channels support maximum working pressure of 1MPa with G1/8" standard interfaces for high-pressure, high-flow gas requirements
  • 15-Channel × 5A Power Distribution: Provides 15 independent circuits each supporting 5A current (75A total capacity) for simultaneous power to sensors, solenoid valves, small motors, and mixed signal transmission
Technical Specifications
Electrical Parameters Gas Parameters
Dielectric strength: 300VCA@50Hz,60s Number of trachea: 16 in 16 out
Insulation resistance: ≥500MΩ/300VDC Pressure: -99KPa-1MPa
Dynamic resistance change value: ＜10mΩ Rotational torque: <0.3N.m
Rated voltage: 0～380VDC/VAC Rotation speed: 200rpm
Wire Specifications: Teflon wire (current-dependent) Shell material: Aluminum Alloy
Wire length: Default 250mm (Customizable) Temperature: -30℃～+80℃
Contact material: Precious metal contacts Operating humidity: 0～85%RH
Protection level: IP51
Technical Drawings
16-Channel Pneumatic 15-Way 5A Electrical Hybrid Slip Ring with Black Aluminum Alloy Housing 0
Application Scenarios
  • Automated Assembly and Testing Equipment: Gripper control and sensor signal transmission for rotary multi-station worktables
  • Robot End Effectors (EOAT): Integrated connection of pneumatic grippers, suction cups, sensors, and solenoid valves at the robotic wrist
  • Packaging and Filling Machinery: Pneumatic valve control and liquid level sensor power supply for rotary filling heads
  • Semiconductor and Electronics Manufacturing: Pneumatic adsorption and position feedback signal transmission for wafer handling rotary tables
  • Testing and Experimentation Platforms: Rotary testing systems with multi-channel pneumatic excitation and electrical signal acquisition
Frequently Asked Questions
Q1: Are the 16 pneumatic channels and 15 electrical channels completely independent? Can they operate simultaneously?
Yes. All pneumatic and electrical channels are physically and functionally independent and can operate simultaneously at full load without interference.
Q2: What is the leakage rate of the pneumatic channels at 1MPa pressure?
At 1MPa pressure and 200rpm speed, the dynamic leakage rate of standard products is typically ≤0.1MPa*L/min (the leakage per minute is extremely small and negligible). Specific values can be provided in the factory test report.
Q3: Can all 15 5A circuits operate simultaneously at full load?
Yes. All 15 channels can provide a total current of 75A at full load. Based on a 380V voltage, the theoretical transmission power can reach 28.5kW. In practical applications, it is necessary to ensure that the power supply capacity matches the heat dissipation conditions.
