2-Channel Thermally Conductive Oil Slip Ring with 180℃ High-Temperature Resistance, 50mm Large-Diameter Hollow Structure, and Dual-Channel Independent Circulation

2-Channel Thermally Conductive Oil Slip Ring with 180℃ High-Temperature Resistance, 50mm Large-Diameter Hollow Structure, and Dual-Channel Independent Circulation
2-Channel Thermally Conductive Oil Slip Ring with 180℃ High-Temperature Resistance, 50mm Large-Diameter Hollow Structure, and Dual-Channel Independent Circulation
2-Channel Thermally Conductive Oil Slip Ring with 180℃ High-Temperature Resistance, 50mm Large-Diameter Hollow Structure, and Dual-Channel Independent Circulation 2-Channel Thermally Conductive Oil Slip Ring with 180℃ High-Temperature Resistance, 50mm Large-Diameter Hollow Structure, and Dual-Channel Independent Circulation 2-Channel Thermally Conductive Oil Slip Ring with 180℃ High-Temperature Resistance, 50mm Large-Diameter Hollow Structure, and Dual-Channel Independent Circulation 2-Channel Thermally Conductive Oil Slip Ring with 180℃ High-Temperature Resistance, 50mm Large-Diameter Hollow Structure, and Dual-Channel Independent Circulation 2-Channel Thermally Conductive Oil Slip Ring with 180℃ High-Temperature Resistance, 50mm Large-Diameter Hollow Structure, and Dual-Channel Independent Circulation 2-Channel Thermally Conductive Oil Slip Ring with 180℃ High-Temperature Resistance, 50mm Large-Diameter Hollow Structure, and Dual-Channel Independent Circulation 2-Channel Thermally Conductive Oil Slip Ring with 180℃ High-Temperature Resistance, 50mm Large-Diameter Hollow Structure, and Dual-Channel Independent Circulation

Large Image :  2-Channel Thermally Conductive Oil Slip Ring with 180℃ High-Temperature Resistance, 50mm Large-Diameter Hollow Structure, and Dual-Channel Independent Circulation

Product Details:
Place of Origin: china
Brand Name: GuRen
Certification: ISO9001.CE.RoHS
Model Number: Q2P02-50119-C0249-1
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: ＄19-199
Packaging Details: Standard/On Request
Delivery Time: 3 weeks ARO
Payment Terms: L/C,D/P,T/T
Supply Ability: 1K units/week
Contact Now Chat Now

2-Channel Thermally Conductive Oil Slip Ring with 180℃ High-Temperature Resistance, 50mm Large-Diameter Hollow Structure, and Dual-Channel Independent Circulation

Description
Circuit Number: 2 Channels Inner Diameter: 50
Outer Diameter: 119mm High: 114mm
Pore ​​size: G1/4" Service Life: 20 Million Rotations

2-Channel Thermally Conductive Oil Slip Ring

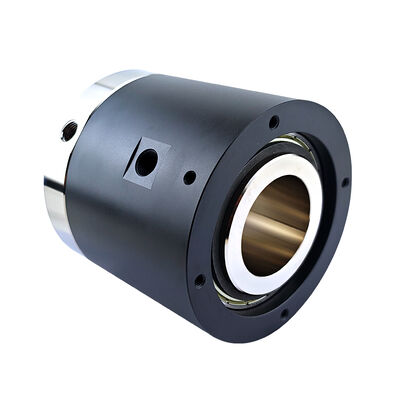

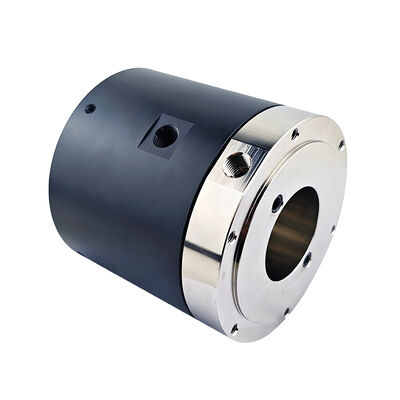

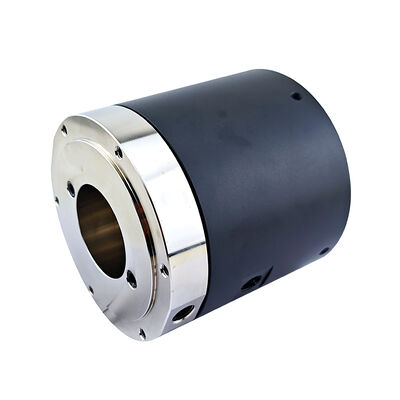

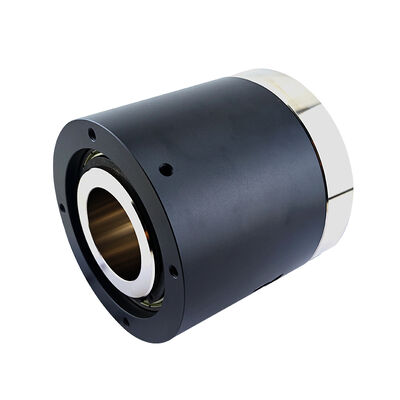

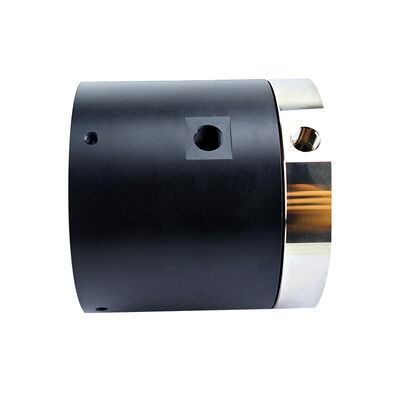

The 2-channel thermal oil slip ring is a dual-channel rotary joint specifically designed for high-temperature heat transfer fluids. It features a black aluminum alloy housing with a 50mm inner diameter and a 119mm outer diameter through-hole structure. Equipped with two independent G1/4" interfaces, it is specifically designed for transferring high-temperature heat transfer media such as thermal oil.

It can withstand a maximum pressure of 1MPa, a maximum speed of 150rpm, and an operating temperature of up to 180℃, and has an IP51 protection rating. It is a core component for rotary heating or cooling in equipment such as rubber and plastic machinery, reaction vessels, and hot presses.

Key Features
  • 180℃ High-Temperature Design: Utilizing high-temperature resistant sealing materials and special lubrication technology, it can operate stably for extended periods in high-temperature heat transfer oil environments up to 180℃, eliminating the softening and failure issues common with ordinary seals at high temperatures.

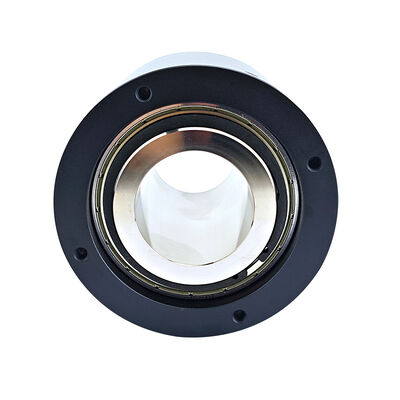

  • 50mm Large-Diameter Hollow Structure: The 50mm central through-hole allows heating rods, thermocouples, power lines, or drive shafts to pass through, providing significant flexibility for equipment integration.
  • Dual-Channel Independent Circulation: Two independent G1/4" interfaces can be used as the inlet and outlet of the heat transfer oil respectively, forming a complete thermal circulation loop, or for two independent heating zones.
  • Excellent High-Pressure Sealing Performance: Under 1MPa pressure and high-temperature conditions, a specially designed rotary seal ensures leak-free long-term operation, guaranteeing production safety and thermal efficiency.
  • Rugged and Durable Industrial Design: The black aluminum alloy housing provides excellent heat dissipation, and the IP51 protection rating effectively prevents dust and drips, making it suitable for industrial workshop environments.
Technical Parameters
Transmission medium Thermal oil
Working life 20 million revolutions (reference value)
Maximum speed 150 RPM
Pressure range 1MPa
Operating temperature -30℃ to +180℃
Operating humidity 0-85% RH
Protection level IP51
Shell material Aluminum Alloy
Rotational torque 0.5N.m (reference value, torque increases with channel count)
Product Dimensions
2-Channel Thermally Conductive Oil Slip Ring with 180℃ High-Temperature Resistance, 50mm Large-Diameter Hollow Structure, and Dual-Channel Independent Circulation 0
Application Scenarios
  • Rubber and Plastics Machinery: Internal heat transfer oil circulation in the heating/cooling rollers of calenders, extruders, and vulcanizing machines.
  • Hot Pressing and Laminating Equipment: Rotary connection of hot press plate oil circuits in PCB laminators and artificial board hot presses.
  • Printing and Packaging Machinery: Internal heat transfer oil transmission in the heating rollers of gravure printing machines and coating machines.
  • Reaction Vessels and Drying Equipment: Jacket heating in rotary reaction vessels and double-cone rotary vacuum dryers.
Frequently Asked Questions
Q1: Does the maximum operating temperature of 180℃ include the peak value of instantaneous fluctuations in the heat transfer oil?
180℃ is the recommended stable temperature for long-term continuous operation. The product can withstand brief peak overheating, but prolonged exposure to this temperature will affect the lifespan of seals and bearings. For higher temperatures (e.g., 250℃), we can provide customized high-temperature models.
Q2: Can a rotating shaft pass through a 50mm inner diameter?
Yes. A 50mm inner diameter can accommodate rotating shafts with a diameter less than 45mm, allowing for integrated installation of the equipment's main shaft and slip ring.
Q3: Can the product transfer other heat transfer media besides heat transfer oil?
Yes, but compatibility needs to be confirmed. Standard seals are suitable for mineral-based heat transfer oils. For transferring other high-temperature media such as water-glycol, steam, or molten salt, please provide the specific parameters of the media, and we will select the most suitable sealing material for you.
