2-Channel M5 Interface Air Slip Ring with 80mm Inner Diameter and 20 Million Rotations Lifespan

2-Channel M5 Interface Air Slip Ring with 80mm Inner Diameter and 20 Million Rotations Lifespan
2-Channel M5 Interface Air Slip Ring with 80mm Inner Diameter and 20 Million Rotations Lifespan
2-Channel M5 Interface Air Slip Ring with 80mm Inner Diameter and 20 Million Rotations Lifespan 2-Channel M5 Interface Air Slip Ring with 80mm Inner Diameter and 20 Million Rotations Lifespan 2-Channel M5 Interface Air Slip Ring with 80mm Inner Diameter and 20 Million Rotations Lifespan 2-Channel M5 Interface Air Slip Ring with 80mm Inner Diameter and 20 Million Rotations Lifespan 2-Channel M5 Interface Air Slip Ring with 80mm Inner Diameter and 20 Million Rotations Lifespan 2-Channel M5 Interface Air Slip Ring with 80mm Inner Diameter and 20 Million Rotations Lifespan

Large Image :  2-Channel M5 Interface Air Slip Ring with 80mm Inner Diameter and 20 Million Rotations Lifespan

Product Details:
Place of Origin: china
Brand Name: GuRen
Certification: ISO9001.CE.RoHS
Model Number: Q2PM5-80126-A5858
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: ＄19-199
Packaging Details: Standard/On Request
Delivery Time: 3 weeks ARO
Payment Terms: L/C,D/P,T/T
Supply Ability: 1K units/week
Contact Now Chat Now

2-Channel M5 Interface Air Slip Ring with 80mm Inner Diameter and 20 Million Rotations Lifespan

Description
Circuit Number: 2 Channels Inner Diameter: 80mm
Outer Diameter: 126mm High: 80mm
Pore ​​size: M5 Service Life: 20 Million Rotations

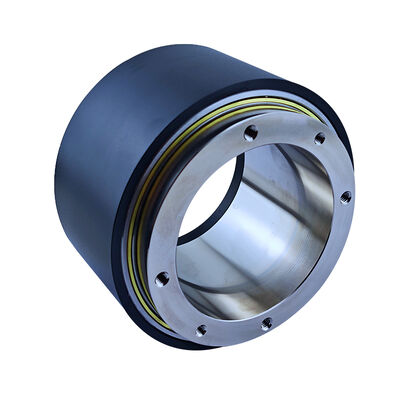

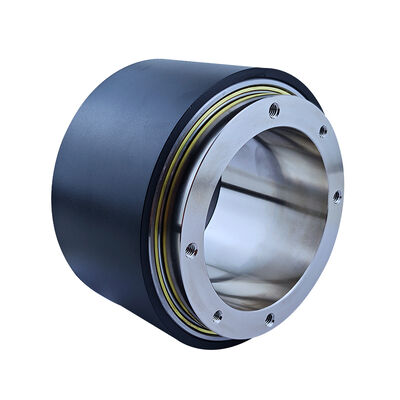

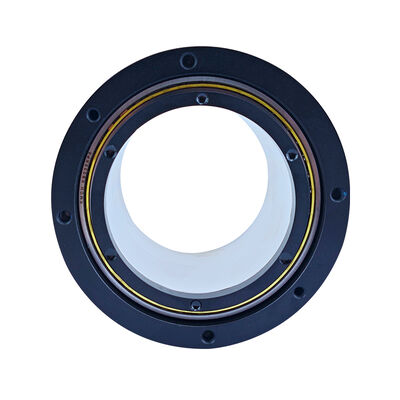

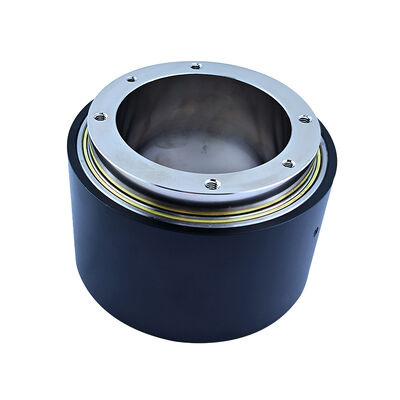

2-channel M5 Interface Large-Bore Air Slip Ring
The 2-channel M5 interface large-bore air slip ring is specifically designed for rotating equipment requiring central wire guidance. Featuring a lightweight aluminum alloy housing and compact structure, it offers an 80mm inner diameter and 126mm outer diameter. Equipped with two independent M5 standard air interfaces, it is optimized for compressed air transmission and operates stably at 0.8MPa pressure and 100rpm speed. With an IP51 protection rating, it is ideal for automated winding machines, take-up equipment, and pneumatic rotary platforms.
Key Features
  • 80mm Extra-Large Center Through-Hole: Provides ample space for cables, optical fibers, liquid lines, or large rotating shafts to pass directly through, simplifying equipment structure and enabling true center cabling
  • Dual Independent M5 Air Circuits: Integrates two independent M5 interface air circuits supporting compressed air up to 0.8MPa, allowing separate control of two independent pneumatic actuators without interference
  • Compact and Robust Aluminum Alloy Housing: 126mm outer diameter combined with 80mm inner diameter maintains compactness while ensuring large through-hole capacity with excellent strength and heat dissipation
  • Industrial-Grade Protection and Sealing: IP51 protection rating effectively prevents dust and vertical dripping, with optimized dynamic sealing structure ensuring leak-free operation during long-term rotation
Technical Parameters
Transmission Medium Air
Working Life 20 million revolutions (reference value)
Maximum Speed 100 RPM
Pressure Range 0.8MPa
Operating Temperature -30℃ to +80℃
Operating Humidity 0-85% RH
Protection Level IP51
Shell Material Aluminum Alloy
Rotational Torque 0.5N.m (reference value, torque increases with channel count)
Product Dimensions
2-Channel M5 Interface Air Slip Ring with 80mm Inner Diameter and 20 Million Rotations Lifespan 0
Application Scenarios
  • Cable Winding Equipment: Provides air supply for central pneumatic brake or clamping systems of optical cable and electrical cable reels
  • Automated Winding Machine: Provides power for pneumatic tensioners or wire cutting devices on rotating spindles
  • Rotary Table: Supplies air to pneumatic clamps or positioning pins on heavy-duty rotary tables with central pipelines
  • Packaging Machinery: Uses pneumatic pressure rollers or web guiding systems for large rotary winding and unwinding devices
Frequently Asked Questions
Q1: Is the 80mm inner diameter standard? Can it accommodate larger objects?
80mm is the standard inner diameter design. It can accommodate a large number of standard cables and even multiple air or hydraulic hoses with diameters up to 50mm, greatly improving design flexibility.
Q2: What diameter of air hose does the M5 connector typically fit?
The M5 threaded connector is typically used with 4mm or 6mm outer diameter hoses. It can be quickly connected using standard quick-connect fittings, which is very convenient.
Q3: Can the product be used in a vacuum (negative pressure) environment?
Yes. Although the main parameters are listed as positive pressure, its sealing design is also suitable for vacuum environments. If you have primary vacuum application requirements, please specify them when ordering, and we will optimize the seal for negative pressure conditions.
