2-Channel Water Slip Ring with 18mm Through-Hole, 200 RPM Speed, and IP51 Protection for Industrial Rotary Connections

2-Channel Water Slip Ring with 18mm Through-Hole, 200 RPM Speed, and IP51 Protection for Industrial Rotary Connections
2-Channel Water Slip Ring with 18mm Through-Hole, 200 RPM Speed, and IP51 Protection for Industrial Rotary Connections
2-Channel Water Slip Ring with 18mm Through-Hole, 200 RPM Speed, and IP51 Protection for Industrial Rotary Connections 2-Channel Water Slip Ring with 18mm Through-Hole, 200 RPM Speed, and IP51 Protection for Industrial Rotary Connections 2-Channel Water Slip Ring with 18mm Through-Hole, 200 RPM Speed, and IP51 Protection for Industrial Rotary Connections 2-Channel Water Slip Ring with 18mm Through-Hole, 200 RPM Speed, and IP51 Protection for Industrial Rotary Connections 2-Channel Water Slip Ring with 18mm Through-Hole, 200 RPM Speed, and IP51 Protection for Industrial Rotary Connections 2-Channel Water Slip Ring with 18mm Through-Hole, 200 RPM Speed, and IP51 Protection for Industrial Rotary Connections

Large Image :  2-Channel Water Slip Ring with 18mm Through-Hole, 200 RPM Speed, and IP51 Protection for Industrial Rotary Connections

Product Details:
Place of Origin: china
Brand Name: GuRen
Certification: ISO9001.CE.RoHS
Model Number: Q2P03-GRA0536
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: ＄19-199
Packaging Details: Standard/On Request
Delivery Time: 3 weeks ARO
Payment Terms: L/C,D/P,T/T
Supply Ability: 1K units/week
Contact Now Chat Now

2-Channel Water Slip Ring with 18mm Through-Hole, 200 RPM Speed, and IP51 Protection for Industrial Rotary Connections

Description
Circuit Number: 2 Channels Inner Diameter: 18mm
Outer Diameter: 86mm High: 112mm
Pore ​​size: G3/8" Service Life: 20 Million Rotations

2-Channel Water Slip Ring with G3/8” Air Hose Connector, 200 RPM Speed

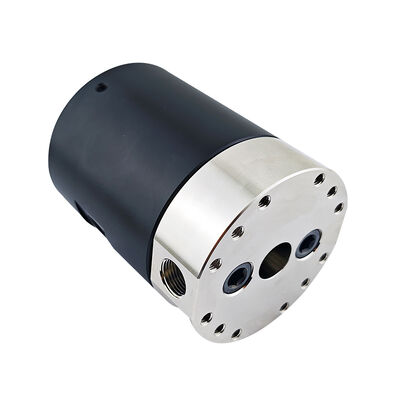

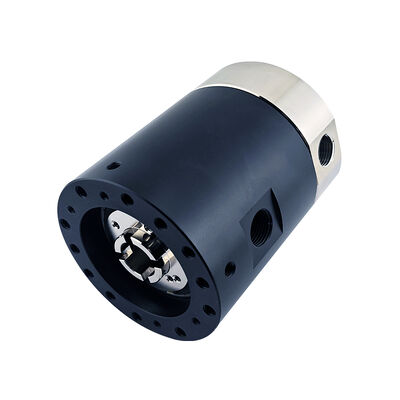

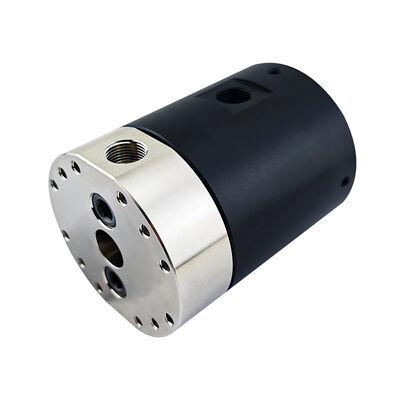

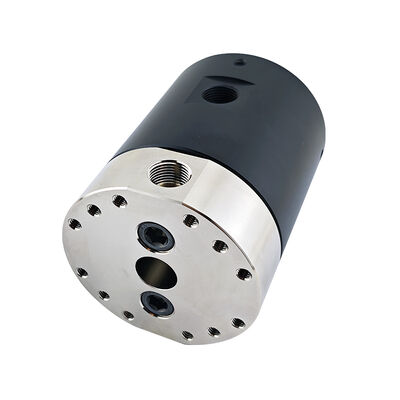

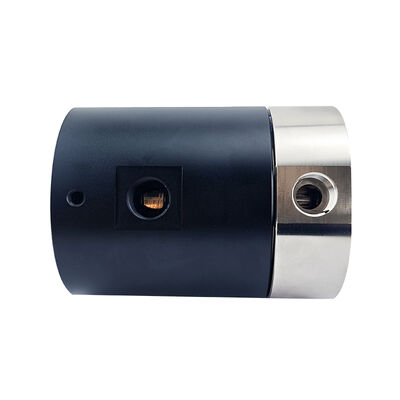

This 2-channel water slip ring is engineered for equipment requiring stable rotary connections in water or gas media. Featuring a black aluminum alloy housing with an 18mm inner diameter and 86mm outer diameter through-hole structure, it provides reliable performance for industrial applications.

Equipped with two independent G3/8" interfaces, it can simultaneously or separately transmit industrial media such as water and compressed air. With a maximum pressure of 0.8MPa, maximum speed of 200rpm, and IP51 protection rating, it serves as an ideal rotary connection component for industrial cooling, cleaning, and pneumatic control systems.

Key Features
  • 18mm Standard Through-Hole Design: The 18mm center through-hole accommodates wires, air pipes, or small drive shafts, facilitating central wiring and simplifying rotary platform structure.
  • G3/8" High-Flow Channels: Two G3/8" interfaces enable greater media flow compared to smaller diameter connectors, meeting rotary workstation requirements for coolant or high-flow-rate gas.
  • Flexible Air/Water Transfer: Both independent channels can transfer water or compressed air, allowing flexible combinations such as one channel for cooling water and another for compressed air.
  • Rugged Industrial Design: Black aluminum alloy housing provides excellent heat dissipation and corrosion resistance with IP51 protection against dust and drips.
  • Excellent Dynamic Sealing: Double-layer rotary seal ensures minimal leakage during long-term operation at 0.8MPa pressure and 200rpm.
Technical Parameters
Transmission Medium Water/Air
Working Life 20 million revolutions (reference value)
Maximum Speed 200 RPM
Pressure Range 0.8MPa
Operating Temperature -30℃ to +80℃
Operating Humidity 0-85% RH
Protection Level IP51
Shell Material Aluminum Alloy
Rotational Torque 0.5N.m (reference value, torque increases with channel count)
Product Dimensions
2-Channel Water Slip Ring with 18mm Through-Hole, 200 RPM Speed, and IP51 Protection for Industrial Rotary Connections 0
Application Scenarios
  • Machine Tool Spindle Cooling: Provides central outlet water or circulating coolant for high-speed rotating electric spindles.
  • Rotary Cleaning Equipment: Rotary spray arms in industrial parts cleaning machines for delivering high-pressure water or cleaning agents.
  • Plastics and Rubber Machinery: Provides circulating heat transfer oil or cooling water for heated or cooled rollers.
  • Food and Packaging Machinery: In rotary filling machines, provides cleaning water and compressed air to the filling head.
Frequently Asked Questions
Q1: Can the two channels transmit different media separately?
Yes. The two channels are completely independent internally. You can use one channel to transmit water and the other to transmit compressed air, as long as their respective pressures and temperatures do not exceed rated ranges.
Q2: What kind of cables can pass through the 18mm inner diameter?
The 18mm diameter can easily accommodate multiple standard sensor cables, or 1-2 thicker power cables (e.g., less than 4 square millimeters). It can also pass through air or liquid pipes with an outer diameter of less than 15mm.
Q3: Can the product be used to transmit hot water or hot oil?
The standard model is suitable for clean water or coolant at temperatures from 0℃ to 80℃. For hot water (>80℃), hot oil, or other corrosive liquids, we offer customized versions using special sealing materials such as fluororubber.
