High Speed Slip Ring 8 Channel Gas Electric Rotary Joint Slip Ring CE Certification

High Speed Slip Ring 8 Channel Gas Electric Rotary Joint Slip Ring CE Certification
High Speed Slip Ring 8 Channel Gas Electric Rotary Joint Slip Ring CE Certification
High Speed Slip Ring 8 Channel Gas Electric Rotary Joint Slip Ring CE Certification High Speed Slip Ring 8 Channel Gas Electric Rotary Joint Slip Ring CE Certification High Speed Slip Ring 8 Channel Gas Electric Rotary Joint Slip Ring CE Certification High Speed Slip Ring 8 Channel Gas Electric Rotary Joint Slip Ring CE Certification High Speed Slip Ring 8 Channel Gas Electric Rotary Joint Slip Ring CE Certification

Large Image :  High Speed Slip Ring 8 Channel Gas Electric Rotary Joint Slip Ring CE Certification

Product Details:
Place of Origin: china
Brand Name: GuRen
Certification: ISO9001.CE.RoHS
Model Number: Q8P01-12PS
Document: 6 Channel Pneumatic Slip Ri...ge.pdf
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: ＄19-199
Packaging Details: Standard/On Request
Delivery Time: 3 weeks ARO
Payment Terms: L/C,D/P,T/T
Supply Ability: 1K units/week
Contact Now Chat Now

High Speed Slip Ring 8 Channel Gas Electric Rotary Joint Slip Ring CE Certification

Description
Air Channel: 8 Channel Interface Specifications: G1/8"
Applicable Trachea: 6-8mm Width: 56mm
Length: 123.5mm Protection Level: IP51
Highlight:

8 Channel Rotary Joint Slip Ring

,

Rotary Joint Slip Ring IP51

,

High Speed Slip Ring 8 Channel

High Speed 8-Channel Gas-Electric Rotary Joint IP51 Protection CE Certification
Product Specifications
Attribute Value
Air channel 8 channel
Interface Specifications G1/8"
Applicable trachea 6-8mm
Width 56mm
Length 123.5mm
Protection level IP51

Q8P01-12PS high speed 8-channel gas-electric rotary slip ring connector, equipped with G1/8" interface to adapt to 6-8mm air pipe, transmit 12 2A signals. IP51 protection level, suitable for various new energy high-voltage equipment.

Product Features
  • High flow channel: 8 gas channels support 0.8MPa pressure, which meets the requirements of industrial gas transmission.
  • Universal interface: G1/8" threaded hole standardized design, which can be connected to 6-8mm industrial gas pipe.
  • Double protection: IP51 dust and drip proof, insulation test 500VAC to ensure electrical safety.
  • Customized service: support wire specification/length adjustment, shell material replacement.
Technical Parameters
Electrical Parameters Gas Parameters
Dielectric strength 500VCA@50Hz,60s Number of trachea 8 in 8 out
Insulation resistance ≥500MΩ/300VDC Pressure -80KPa-0.8MPa or vacuum
Dynamic resistance change value ＜10mΩ Rotational torque <0.3N.m
Rated voltage 0～440VDC/VAC Rotation speed 250rpm
Wire Specifications AWG28 Teflon wire (depending on the specific current) Shell material Aluminum Alloy
Wire length Default 250mm (Customizable) Temperature -30℃～+80℃
Contact material Precious metal contacts Operating humidity 0～85%RH
Protection level IP51
Product Drawings
High Speed Slip Ring 8 Channel Gas Electric Rotary Joint Slip Ring CE Certification 0

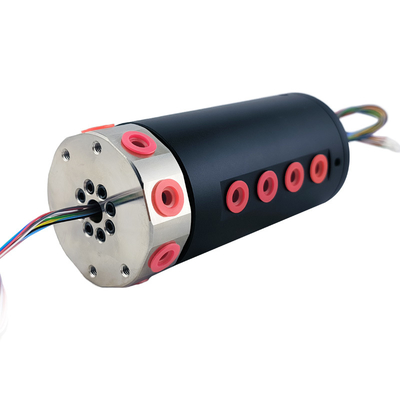

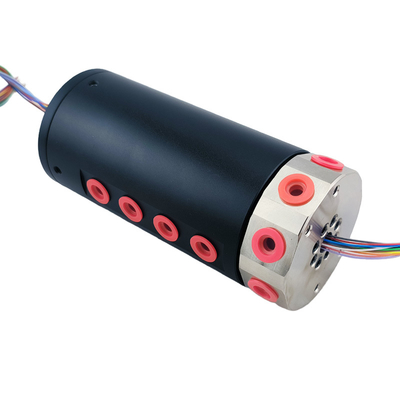

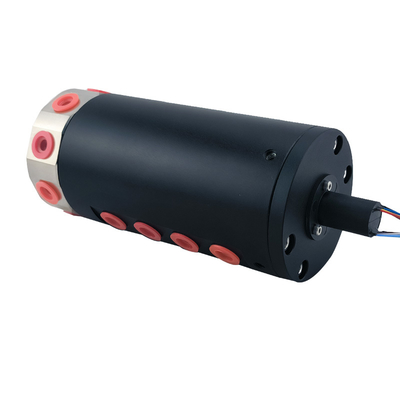

Product Images
High Speed Slip Ring 8 Channel Gas Electric Rotary Joint Slip Ring CE Certification 1 High Speed Slip Ring 8 Channel Gas Electric Rotary Joint Slip Ring CE Certification 2 High Speed Slip Ring 8 Channel Gas Electric Rotary Joint Slip Ring CE Certification 3
Application Scenarios

Suitable for high-precision fields such as industrial automation, medical equipment, and new energy equipment, it solves the key bottleneck of the collaborative work of pneumatic/hydraulic actuators and electrical control systems on the rotating platform, and realizes the smooth execution of complex movements and the entanglement-free transmission of high-density information (fluid + electricity + signal).

Tag:

aluminum slip ring,

electronic slip ring,

integrated slip ring
