1-way air 4-way electrical through-hole air-electric slip ring ID 110mm OD185mm

1-way air 4-way electrical through-hole air-electric slip ring ID 110mm OD185mm
1-way air 4-way electrical through-hole air-electric slip ring ID 110mm OD185mm
1-way air 4-way electrical through-hole air-electric slip ring ID 110mm OD185mm 1-way air 4-way electrical through-hole air-electric slip ring ID 110mm OD185mm 1-way air 4-way electrical through-hole air-electric slip ring ID 110mm OD185mm 1-way air 4-way electrical through-hole air-electric slip ring ID 110mm OD185mm 1-way air 4-way electrical through-hole air-electric slip ring ID 110mm OD185mm 1-way air 4-way electrical through-hole air-electric slip ring ID 110mm OD185mm

Large Image :  1-way air 4-way electrical through-hole air-electric slip ring ID 110mm OD185mm

Product Details:
Place of Origin: china
Brand Name: GuRen
Certification: ISO9001.CE.RoHS
Model Number: Q1P03-110185-4P10-GRA0160
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: ＄19-199
Packaging Details: Standard/On Request
Delivery Time: 3 weeks ARO
Payment Terms: L/C,D/P,T/T
Supply Ability: 1K units/week
Contact Now Chat Now

1-way air 4-way electrical through-hole air-electric slip ring ID 110mm OD185mm

Description
Air Channel: 1 Channel Interface Specifications: G3/8"
Applicable Trachea: 12mm Width: 185mm
Length: 100mm Protection Level: IP54
Highlight:

1-way air 4-way electrical slip ring

,

pneumatic slip ring ID 110mm

,

air-electric slip ring OD185mm

1-Way Air 4-Way Electrical Through-Hole Air-Electric Slip Ring ID 110mm OD185mm
Product Overview
This gas-electric combination slip ring features a large-aperture design with one gas circuit and four electrical circuits. The unit has an inner diameter of 110mm and outer diameter of 185mm, utilizing side-input, side-output circuit configuration. It supports 10A current capacity, operates at voltages up to 220V, and achieves rotational speeds of 200 rpm. The gas channel accommodates 12mm air pipes.
Key Features
  • Pneumatic and Electrical Combination:
    • Air: One compressed air channel supporting 12mm Φ air tubing quick-connects
    • Electrical: Four electrical channels with side-in, side-out wiring (10A current, 220V max)
  • Large-Aperture Through-Hole Design: 110mm inner diameter and 185mm outer diameter facilitate passage of pipes, wiring harnesses, or mechanical shafts for simplified system integration
  • Excellent Mechanical Performance: 200 rpm maximum speed for medium-high speed applications with optimized side-outlet cable structure to reduce rotation interference
  • Wide Equipment Compatibility: Ideal for industrial robot rotary joints, automated machining centers, rotary tables, and precision electromechanical systems requiring simultaneous pneumatic and electrical transmission
Technical Parameters
Electrical Parameters Gas Parameters
Dielectric strength: 300VCA@50Hz,60s Number of trachea: 1 in 1 out
Insulation resistance: ≥1000MΩ/300VDC Pressure: -80KPa-0.8MPa or vacuum
Dynamic resistance change value: ＜10mΩ Rotational torque: <0.3N.m
Rated voltage: 0～220VDC/VAC Rotation speed: 200rpm
Wire Specifications: AWG17#Teflon wire (current-dependent) Shell material: Aluminum Alloy
Wire length: Default 500mm (Customizable) Temperature: -30℃～+80℃
Contact material: Precious metal contacts Operating humidity: 0～85%RH
Protection level: IP54
Technical Drawings
1-way air 4-way electrical through-hole air-electric slip ring ID 110mm OD185mm 0

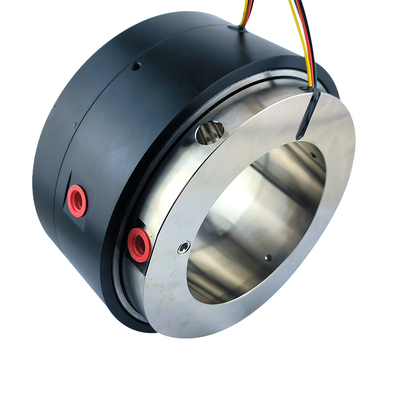

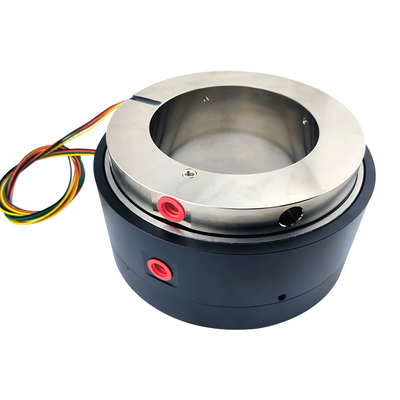

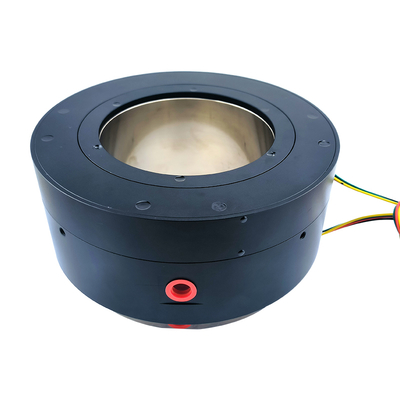

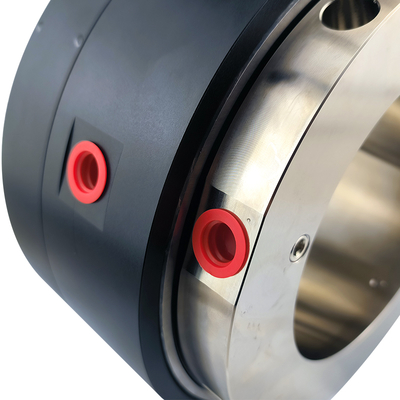

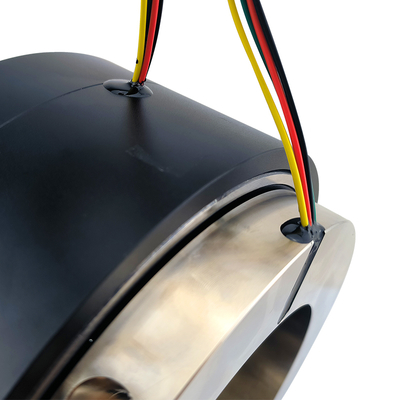

Product Images
1-way air 4-way electrical through-hole air-electric slip ring ID 110mm OD185mm 1 1-way air 4-way electrical through-hole air-electric slip ring ID 110mm OD185mm 2
Application Scenarios
Designed for high-precision applications in industrial automation, medical equipment, and new energy systems. Solves critical challenges in pneumatic/hydraulic actuator and electrical control system collaboration on rotating platforms, enabling smooth execution of complex movements and tangle-free transmission of high-density information (fluid + electricity + signal).
