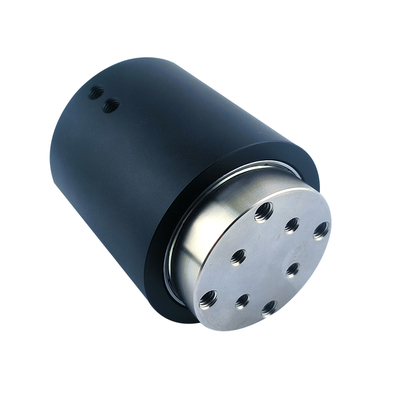

4-channel M5 connector gas rotating slip ring 6mm tube aluminum alloy housing

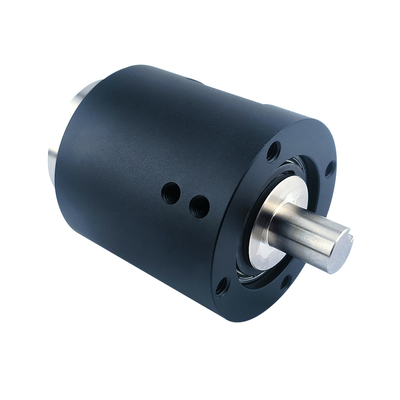

4-channel M5 connector gas rotating slip ring 6mm tube aluminum alloy housing

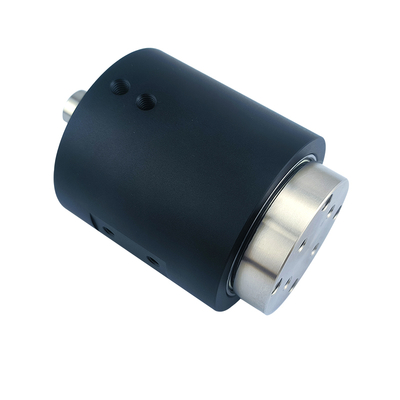

4-channel M5 connector gas rotating slip ring 6mm tube aluminum alloy housing

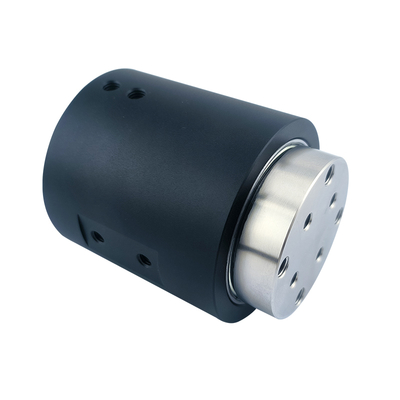

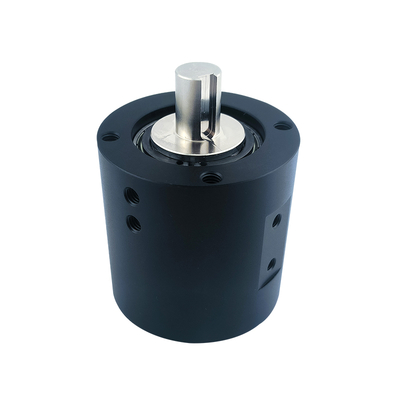

4-channel M5 connector gas rotating slip ring 6mm tube aluminum alloy housing 4-channel M5 connector gas rotating slip ring 6mm tube aluminum alloy housing 4-channel M5 connector gas rotating slip ring 6mm tube aluminum alloy housing 4-channel M5 connector gas rotating slip ring 6mm tube aluminum alloy housing 4-channel M5 connector gas rotating slip ring 6mm tube aluminum alloy housing 4-channel M5 connector gas rotating slip ring 6mm tube aluminum alloy housing

Large Image :  4-channel M5 connector gas rotating slip ring 6mm tube aluminum alloy housing

Product Details:
Place of Origin: china
Brand Name: GuRen
Certification: ISO9001.CE.RoHS
Model Number: Q4PM5-C0323
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: ＄19-199
Packaging Details: Standard/On Request
Delivery Time: 3 weeks ARO
Payment Terms: L/C,D/P,T/T
Supply Ability: 1K units/week
Contact Now Chat Now

4-channel M5 connector gas rotating slip ring 6mm tube aluminum alloy housing

Description
Circuit Number: 4 Circuits Trachea Size: M5 6mm
Outer Diameter: 64mm High: 77mm
Sealing Type: O-Ring Service Life: 20 Million Rotations
Highlight:

4-channel gas rotary union

,

M5 connector slip ring

,

aluminum alloy gas slip ring

4-Channel M5 Connector Gas Rotating Slip Ring with 6mm Tube and Aluminum Alloy Housing
Product Overview
The Q4PM5 customized air slip ring features an innovative air shaft extension design with concave structure for superior equipment connection. This 4-channel unit supports 6mm air tubing connections, operates at 200 RPM, and withstands pressures up to 1MPa.
Key Features
  • Extended Concave Structural Design: The concave air shaft improves connection stability and reduces leakage risks while maintaining precise alignment with docking equipment.
  • Multi-Channel Configuration: Four independent air channels each support 6mm diameter tubing for complex pneumatic system requirements.
  • High-Pressure Performance: Reliable operation at 1 MPa pressure with optimized sealing for leak-free performance in demanding conditions.
  • Medium-Speed Rotation: Rated for 200 RPM operation, ideal for applications requiring continuous medium-speed rotation.
  • Durable Construction: Aluminum alloy housing provides lightweight yet robust protection for internal components.
Technical Parameters
Parameter Value
Transmission medium Gas (liquid available by customization)
Working life 20 million revolutions (reference value)
Maximum speed 200 RPM
Pressure range 1.0 MPa
Operating temperature -30℃ to +80℃
Operating humidity 0-85% RH
Protection level IP51
Shell material Aluminum Alloy
Rotational torque 0.5N.m (reference value, torque increases with channel count)
Product Dimensions
4-channel M5 connector gas rotating slip ring 6mm tube aluminum alloy housing 0
Product Images
4-channel M5 connector gas rotating slip ring 6mm tube aluminum alloy housing 1 4-channel M5 connector gas rotating slip ring 6mm tube aluminum alloy housing 2
Application Scenarios
Designed for 360° continuous rotation applications requiring uninterrupted gas pressure transmission. Ideal for:
  • Industrial automation and robotic end effectors
  • Lithium battery and mobile phone testing equipment
  • Laser processing and coating machinery
  • Packaging film equipment for soft-pack batteries
  • Semiconductor manufacturing automation
  • Optoelectronic display production equipment
  • Rotary worktables and wind power systems
  • AGV lifting platforms and pharmaceutical capsule filling machines
