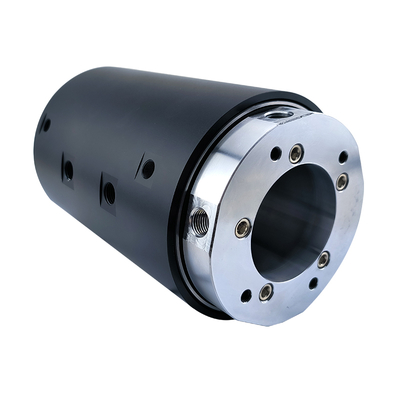

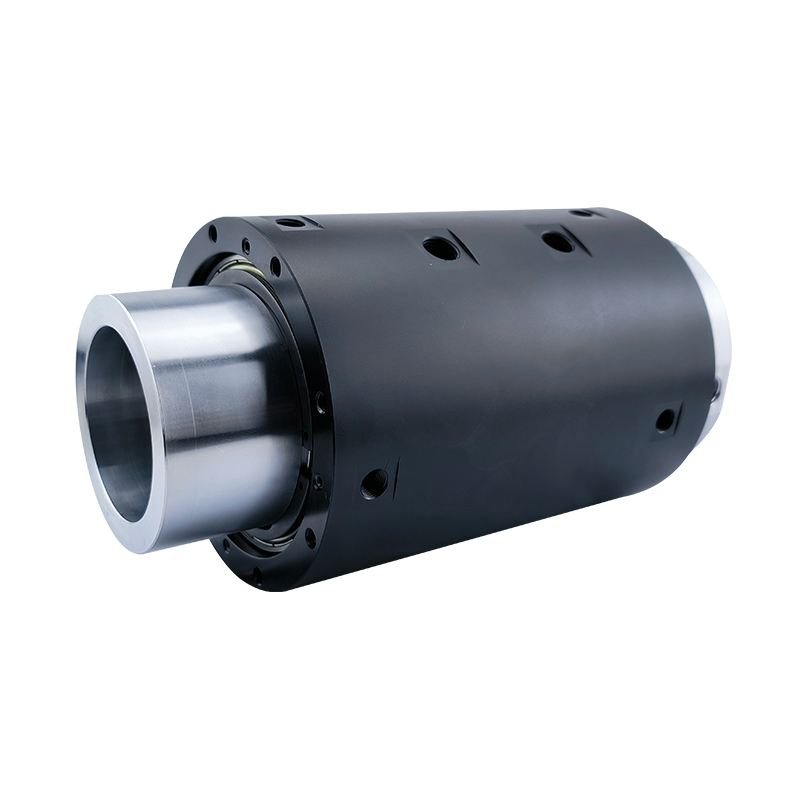

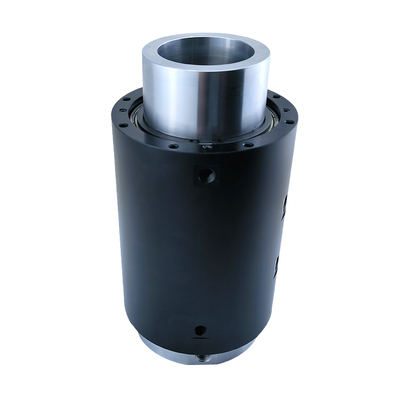

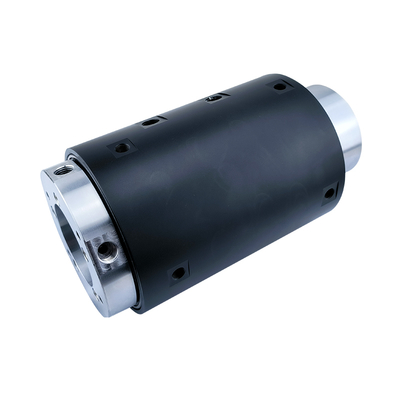

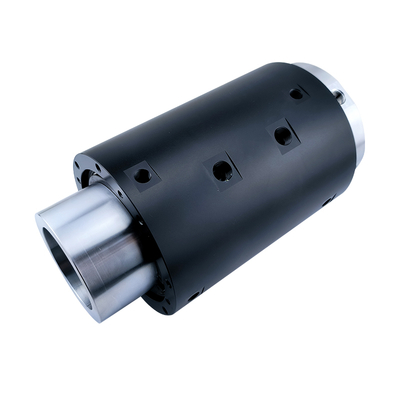

5-channel through-hole paint slip ring 4 air channels 1 paint channel

The 5P02 paint slip ring features 5 total channels (4 air channels + 1 dedicated paint channel) with a center hole design (60mm inner diameter, 123mm outer diameter). Engineered for demanding environments, it operates at temperatures up to 140°C and supports speeds up to 600 RPM.

• Four air channels: Supports compressed air or inert gas transmission
• Dedicated paint channel: Optimized for high-viscosity, corrosive fluids with stable paint delivery
• Hollow structure: 60mm inner diameter / 123mm outer diameter for easy pipe/shaft integration
• High-temperature resistance: Stable operation up to 140°C for baking and high-temperature spraying
• High-speed capability: 600 RPM maximum speed for high-speed rotating equipment
• Specialized sealing: Corrosion-resistant materials prevent leaks in paint applications
• Versatile applications: Industrial robot spray arms, automated painting systems, fluid handling machinery, and precision surface treatment equipment

Ideal for 360° continuous rotation applications requiring uninterrupted gas pressure, vacuum, power, and signal transmission:

• Non-standard automation equipment
• Lithium battery and mobile phone testing
• Laser equipment and coating machines
• Packaging film equipment for soft-pack batteries
• Electronic semiconductor automation
• Optoelectronic display manufacturing
• Rotary worktables and wind power equipment
• AGV lifting platforms and capsule filling machines
