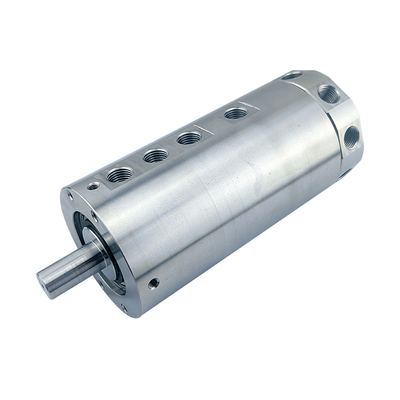

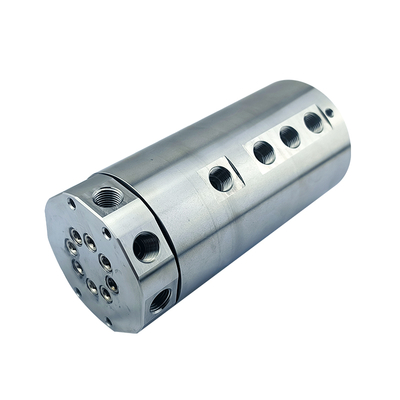

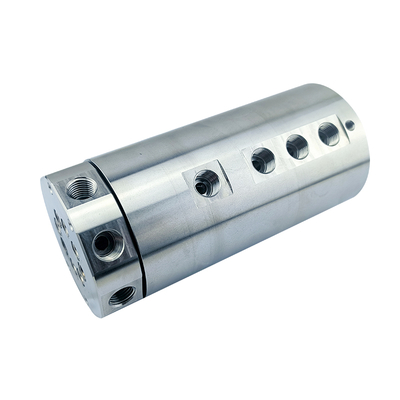

8-channel paint slip ring stainless steel 304 housing 1.5Mpa working pressure

The Q8P02 paint slip ring features a durable 304 stainless steel housing with 8 channels - 6 air channels supporting 1MPa pressure and 2 specialized paint channels rated for 1.5MPa. Designed for demanding industrial applications, it operates at speeds up to 250 RPM across a temperature range of -30°C to 80°C.

• Multi-channel Configuration: Six 1MPa air channels for compressed air/inert gas plus two 1.5MPa paint channels with optimized seals for high-viscosity fluids
• Robust Construction: 304 stainless steel housing provides corrosion resistance in harsh environments
• Wide Temperature Range: Reliable operation from -30°C to 80°C
• High-Speed Performance: Supports rotation up to 250 RPM with reinforced sealing
• Versatile Applications: Suitable for robotic spray systems, automated painting lines, and industrial coating equipment

Ideal for 360° continuous rotation applications requiring simultaneous gas pressure, vacuum, power, and signal transmission:

• Non-standard automation equipment
• Lithium battery and mobile phone testing
• Laser equipment and coating machines
• Packaging film equipment for soft-pack batteries
• Electronic semiconductor automation
• Optoelectronic display manufacturing
• Rotary worktables and wind power equipment
• AGV lifting platforms and capsule filling machines
