Large Image :  1 in 6 out oil and gas slip ring, stainless housing, M6 air pipe connector

Product Details:
Place of Origin: china
Brand Name: GuRen
Certification: ISO9001.CE.RoHS
Model Number: Q61PM6-A6283
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: ＄19-199
Packaging Details: Standard/On Request
Delivery Time: 3 weeks ARO
Payment Terms: L/C,D/P,T/T
Supply Ability: 1K units/week
Contact Now Chat Now

1 in 6 out oil and gas slip ring, stainless housing, M6 air pipe connector

Description
Circuit Number: 1 In, 6 Out Connector Size: M6
Outer Diameter: 54mm High: 49mm
Speed: 200rpm Service Life: 20 Million Rotations
Highlight:

1 in 6 out gas slip ring

,

stainless steel gas rotary union

,

M6 air pipe connector slip ring

1 in 6 Out Oil and Gas Slip Ring with Stainless Steel Housing and M6 Air Pipe Connector
Product Overview
The Q61PM6 oil-permeable slip ring is engineered for emulsified oil media applications. Featuring a 1-in, 6-out configuration with stainless steel housing and M6 port size, it delivers reliable performance at speeds up to 200 RPM and withstands pressures of 0.5 MPa.
Key Features
  • Channel Configuration: 1-input, 6-output structure enables efficient distribution of emulsified oil with standard M6 connectors for secure, leak-proof connections
  • Pressure Performance: 0.5 MPa maximum pressure capacity ensures stable operation in medium-pressure environments
  • Durable Construction: Corrosion-resistant stainless steel housing with specialized oil-resistant seals for industrial fluid applications
  • Mechanical Performance: 200 RPM maximum speed rating with compatibility for emulsified oil, cooling oil, and other non-corrosive industrial fluids
Technical Parameters
Parameter Value
Transmission medium Emulsified oil
Working life 20 million revolutions (reference)
Maximum speed 200 RPM
Pressure range 0.5MPa
Operating temperature -30℃ to +80℃
Operating humidity 0-85% RH
Protection level IP51
Shell material Stainless steel
Rotational torque 0.5N.m (reference, increases with channel count)
Product Dimensions
1 in 6 out oil and gas slip ring, stainless housing, M6 air pipe connector 0
Product Images

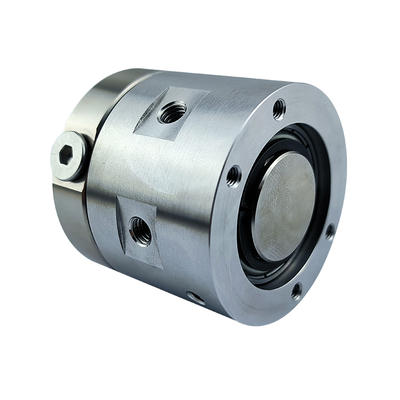

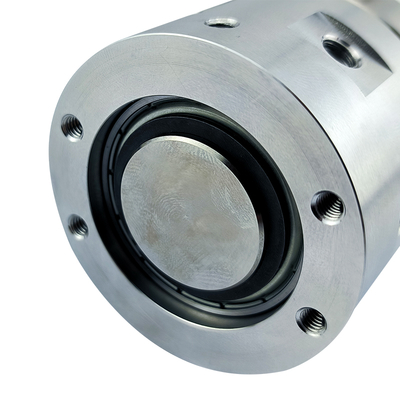

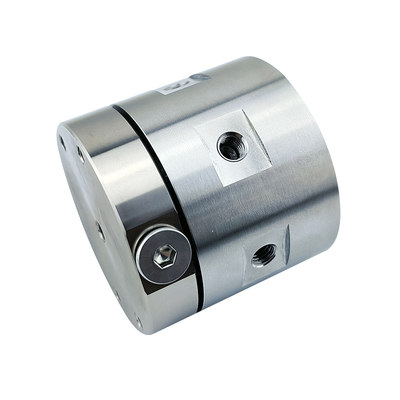

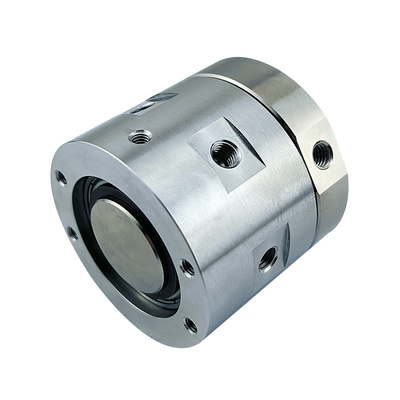

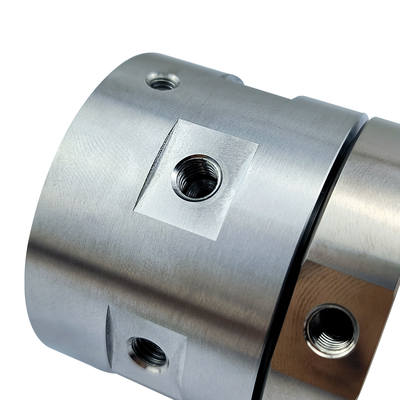

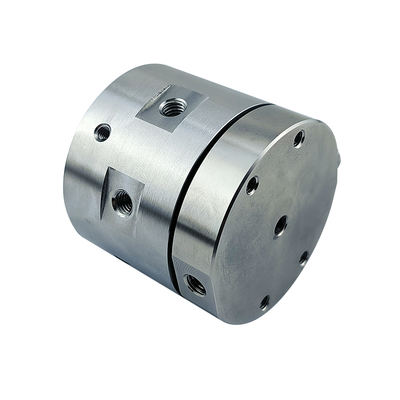

1 in 6 out oil and gas slip ring, stainless housing, M6 air pipe connector 1 1 in 6 out oil and gas slip ring, stainless housing, M6 air pipe connector 2
Application Scenarios
Designed for 360° continuous rotation with uninterrupted fluid transmission in demanding industrial applications:
  • CNC machine tool center oil distribution systems
  • Industrial robot rotary oil supply modules
  • Automated processing equipment lubrication systems
  • Heavy machinery rotary joints
  • Precision fluid control applications requiring multi-channel distribution
  • Laser equipment and coating machines
  • Electronic semiconductor industrial automation
  • Rotary worktables and wind power equipment
