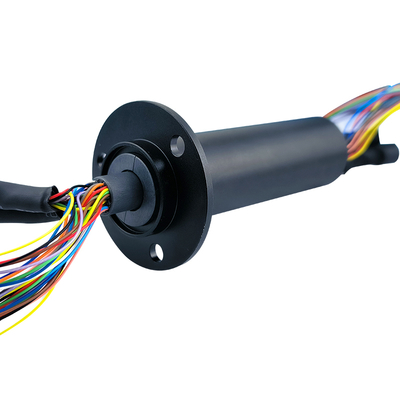

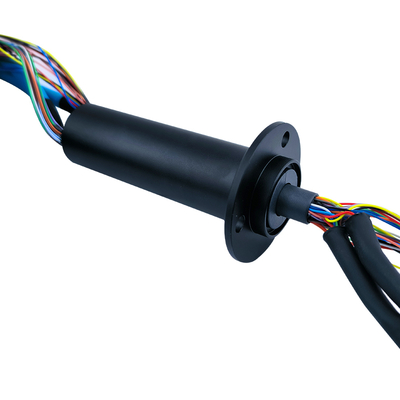

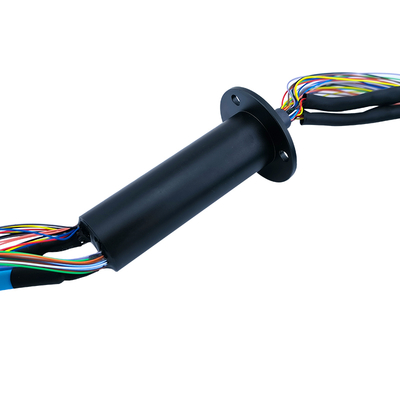

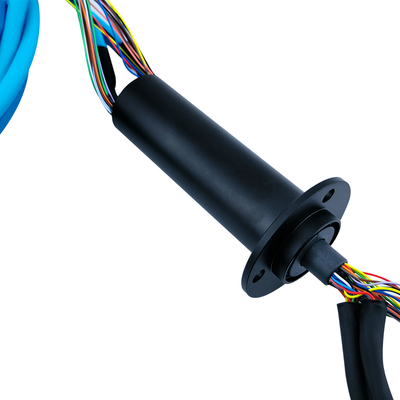

32-way power and 2-way Gigabit network slip ring 25mm OD aluminum alloy housing

32-way power and 2-way Gigabit network slip ring 25mm OD aluminum alloy housing
32-way power and 2-way Gigabit network slip ring 25mm OD aluminum alloy housing
32-way power and 2-way Gigabit network slip ring 25mm OD aluminum alloy housing 32-way power and 2-way Gigabit network slip ring 25mm OD aluminum alloy housing 32-way power and 2-way Gigabit network slip ring 25mm OD aluminum alloy housing 32-way power and 2-way Gigabit network slip ring 25mm OD aluminum alloy housing 32-way power and 2-way Gigabit network slip ring 25mm OD aluminum alloy housing 32-way power and 2-way Gigabit network slip ring 25mm OD aluminum alloy housing

Large Image :  32-way power and 2-way Gigabit network slip ring 25mm OD aluminum alloy housing

Product Details:
Place of Origin: china
Brand Name: GuRen
Certification: ISO9001.CE.RoHS
Model Number: WX25-50P-GRA0389
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: ＄19-199
Packaging Details: Standard/On Request
Delivery Time: 3 weeks ARO
Payment Terms: L/C,D/P,T/T
Supply Ability: 1K units/week
Contact Now Chat Now

32-way power and 2-way Gigabit network slip ring 25mm OD aluminum alloy housing

Description
Rotation Speed: 0~200rpm Shell Material: Aluminum Alloy
Protection Level: IP41 Network Channel: 2 Group (including 18 Channels)
Network Bandwidth: 1000M Wire Length: 2M
Highlight:

32-way power slip ring aluminum alloy

,

2-way Gigabit network slip ring

,

25mm OD Ethernet slip ring

32-Way Power and 2-Way Gigabit Network Slip Ring
25mm OD Aluminum Alloy Housing
Product Overview

This industrial-grade slip ring combines two Gigabit Ethernet channels with 32 electrical circuits (2A each) in a compact 22mm diameter aluminum alloy housing. Designed for 200 RPM operation with 240V compatibility, it features 2-meter lead lengths at both ends for flexible installation.

Key Features
  • Dual Gigabit Ethernet: IEEE 802.3 compliant channels ensure stable, high-speed data transmission with minimal interference
  • 32 Power Circuits: Each supports 2A current for comprehensive power distribution
  • Industrial Voltage: 240V maximum operating voltage compatibility
  • Compact Design: 22mm outer diameter flange for space-constrained installations

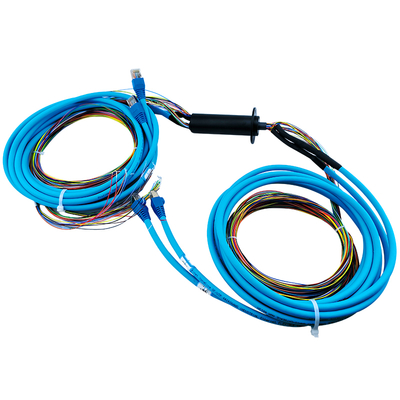

  • Extended Wiring: 2-meter lead length at both ends for flexible connections
  • Robust Construction: Aluminum alloy housing provides durability and protection
  • High-Speed Operation: Rated for 200 RPM continuous rotation
  • Signal Integrity: Optimized electrical design minimizes attenuation
Technical Specifications
Network Specifications
Ethernet Channels 2 (1000Mbps)
Connector Type RJ45 male (female optional)
Mechanical Specifications Electrical Specifications
Speed 200 RPM Voltage 240V AC/DC
Working Life 5 million rotations Insulation Resistance ≥500MΩ/300VDC
Operating Humidity 0-85% RH Wire Specifications AWG#28 tinned Teflon
Temperature Range -30°C to 70°C Dielectric Strength 300VAC@50Hz,60S
Contact Material Precious Metals Dynamic Resistance <0.01Ω
Housing Material Aluminum Alloy Electrical Noise <10 milliohms
Rotation Torque 0.01N.m+0.03N.m/6ch Wire Length 2000mm standard
Industrial Applications

This slip ring is engineered for demanding environments including:

  • Industry 4.0 automation (smart factories, CNC equipment)
  • Security systems (360° surveillance cameras)
  • Renewable energy (wind turbine/solar tracking systems)
  • Medical/scientific equipment requiring reliable rotation
  • Robotic joints and automated test systems
  • Rotating exhibition displays and precision turntables
