36-channel Gigabit Ethernet Slip Ring with Gold-to-Gold Contacts for High-Speed Data Transmission

Large Image : 36-channel Gigabit Ethernet Slip Ring with Gold-to-Gold Contacts for High-Speed Data Transmission

Product Details:

Place of Origin:	china
Brand Name:	GuRen
Certification:	ISO9001.CE.RoHS
Model Number:	WX22-28PS-1E8P-A6495

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	＄19-199
Packaging Details:	Standard/On Request
Delivery Time:	3 weeks ARO
Payment Terms:	L/C,D/P,T/T
Supply Ability:	1K units/week

Contact Now Chat Now

36-channel Gigabit Ethernet Slip Ring with Gold-to-Gold Contacts for High-Speed Data Transmission

Description

Rotation Speed:	220rpm	Shell Material:	Engineering Plastics
Protection Level:	IP51	Network Channel:	1 Group (including 8 Channels)
Network Bandwidth:	Gigabit	Wire Length:	54.5
Highlight:	36-channel Ethernet Slip Ring , Gigabit Ethernet Slip Ring , Gold-to-Gold Contacts Slip Ring

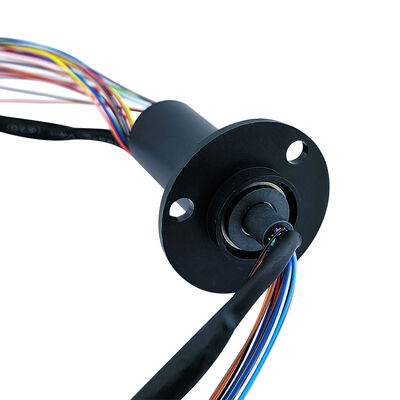

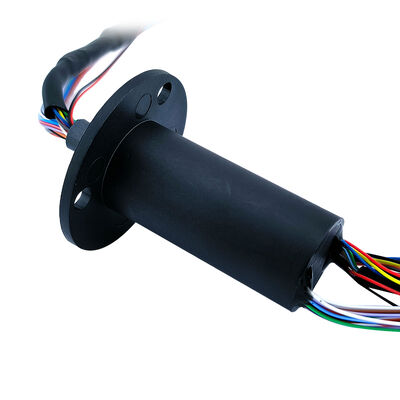

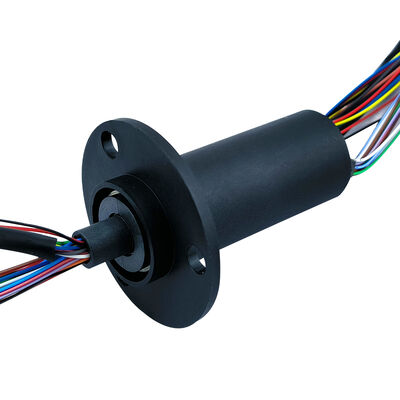

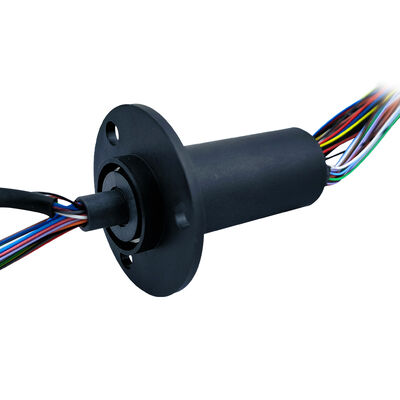

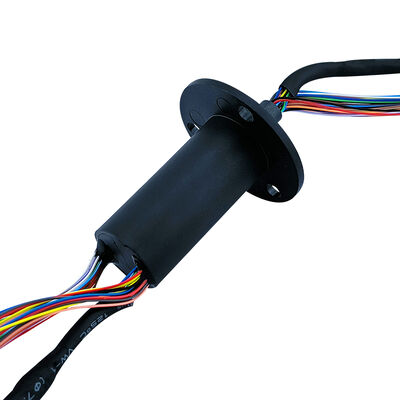

36-Channel Gigabit Ethernet Combined Slip Ring

This innovative miniature slip ring integrates high-speed data and multi-channel power transmission within an ultra-compact 22mm outer diameter engineering plastic housing. It efficiently combines 28 channels of 2A power/signal transmission with 1 Gigabit Ethernet channel, providing 36 independent transmission paths. Featuring gold-to-gold contact materials, it supports 220V operating voltage and 200 RPM rotation speed, specifically designed for precision automation equipment requiring simultaneous high-definition visual transmission, multi-sensor power supply, and stable control.

Product Features

Miniature Multi-Protocol Integration: Within an ultra-compact 22mm space, achieves simultaneous transmission of 28 electrical signals and 1 Gigabit Ethernet channel, serving as an integrated hub for complex functions in miniature devices.
Gigabit-Level Lossless Network Transmission: Built-in dedicated Gigabit Ethernet channel ensures stable, high-speed, low-latency transmission of high-definition video streams and point cloud data during rotation.
Gold-to-Gold Contacts Ensure Reliability: All power and signal channels utilize gold-to-gold contact materials for extremely low contact resistance, long lifespan, and signal transmission purity.
Engineering Plastic Housing: High-performance engineering plastic provides excellent electrical insulation and lightweight characteristics, preventing short circuits and reducing rotational inertia.

Technical Specifications

Ethernet Configuration

Ethernet	Connector Type
1 (1000M)	RJ45 male connector at both ends (female connector optional)

Mechanical & Electrical Specifications

Parameter	Value	Parameter	Value
Speed	200rpm	Voltage	220V AC/VDC
Working life	2 million rpm	Insulation resistance	≥500MΩ/300VDC
Operating humidity	0～85%RH	Wire Specifications	Teflon wire/CAT5E
Operating temperature	-30°C-80°C	Dielectric strength	300VAC@50Hz,60S
Contact material	Gold-Gold	Dynamic resistance change value	<0.01Ω
Shell material	Engineering plastics	Electrical noise	<10 milliohms

Product Dimensions

Application Scenarios

Miniature Collaborative Robot Joints: Integrated joint motor drive, torque feedback, and built-in vision camera data transmission.
High-End Medical and Optical Instruments: Power and high-speed image signal transmission for surgical robot end-effectors and OCT detection equipment.
Precision Automated Inspection Equipment: Power supply and high-definition image synchronization for miniature rotating vision inspection heads and online SPI/AOI equipment.
Specialized Security and Detection Equipment: Integrated solutions for small, high-speed pan-tilt cameras and miniature radar rotating heads.

Frequently Asked Questions

How does the gigabit Ethernet channel ensure lossless and uninterrupted transmission during rotation?

The product utilizes a dedicated high-frequency slip ring module and optimized wiring design internally, with specialized treatment for impedance matching, signal shielding, and crosstalk suppression. Combined with the high stability of gold-to-gold contacts, it ensures compliance with gigabit Ethernet physical layer specifications under continuous rotation at 200 RPM, guaranteeing stable communication.

Do all 28 2A channels support the transmission of signals such as encoders or RS485?

Yes, absolutely. The 2A current capacity meets the power supply requirements of small sensors and solenoid valves, and its channel characteristics are perfectly suited for transmitting various industrial fieldbus signals (such as RS485, CAN) and encoder differential signals, enabling synchronous transmission of power and control signals.

What is the protection rating of the engineering plastic casing? Can it be used in environments with slight oil contamination?

The standard model focuses on electrical insulation and compactness. For applications in environments with oil, dust, or moisture, we can provide a customized version using specific oil-resistant engineering plastics (such as PBT) and adding sealing structures to achieve a higher protection rating (such as IP54). Please specify your operating conditions when selecting the product.
