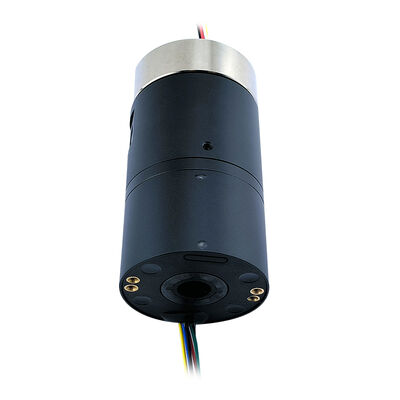

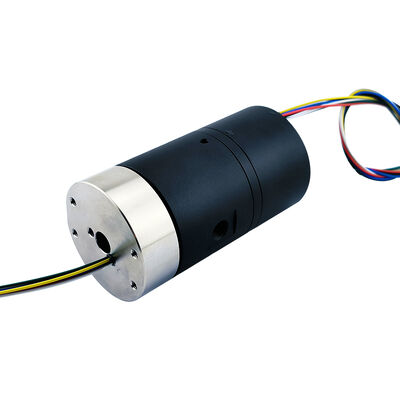

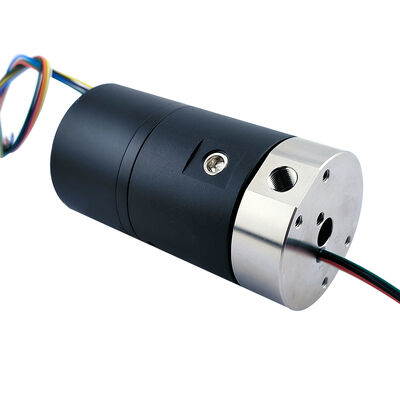

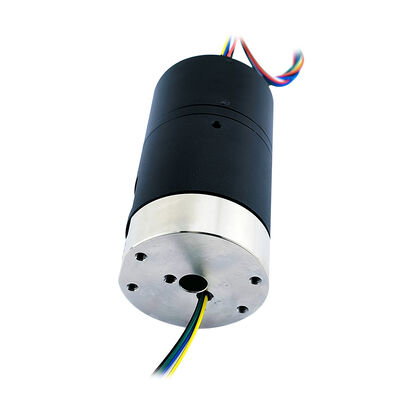

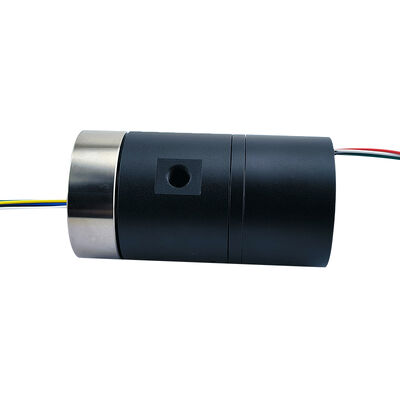

Pneumatic-Electric Slip Ring with 6 Signal Circuits and G1/8" Interface for 6-8mm Applicable Trachea

Pneumatic-Electric Slip Ring with 6 Signal Circuits and G1/8" Interface for 6-8mm Applicable Trachea
Pneumatic-Electric Slip Ring with 6 Signal Circuits and G1/8" Interface for 6-8mm Applicable Trachea
Pneumatic-Electric Slip Ring with 6 Signal Circuits and G1/8" Interface for 6-8mm Applicable Trachea Pneumatic-Electric Slip Ring with 6 Signal Circuits and G1/8" Interface for 6-8mm Applicable Trachea Pneumatic-Electric Slip Ring with 6 Signal Circuits and G1/8" Interface for 6-8mm Applicable Trachea Pneumatic-Electric Slip Ring with 6 Signal Circuits and G1/8" Interface for 6-8mm Applicable Trachea Pneumatic-Electric Slip Ring with 6 Signal Circuits and G1/8" Interface for 6-8mm Applicable Trachea Pneumatic-Electric Slip Ring with 6 Signal Circuits and G1/8" Interface for 6-8mm Applicable Trachea Pneumatic-Electric Slip Ring with 6 Signal Circuits and G1/8" Interface for 6-8mm Applicable Trachea

Large Image :  Pneumatic-Electric Slip Ring with 6 Signal Circuits and G1/8" Interface for 6-8mm Applicable Trachea

Product Details:
Place of Origin: china
Brand Name: GuRen
Certification: ISO9001.CE.RoHS
Model Number: Q1P01-1056-6PS-C0341
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: ＄19-199
Packaging Details: Standard/On Request
Delivery Time: 3 weeks ARO
Payment Terms: L/C,D/P,T/T
Supply Ability: 1K units/week
Contact Now Chat Now

Pneumatic-Electric Slip Ring with 6 Signal Circuits and G1/8" Interface for 6-8mm Applicable Trachea

Description
Air Channel: 1 Channel Interface Specifications: G1/8"
Applicable Trachea: 6-8mm Width: 56mm
Length: 106.9mm Protection Level: IP51
Highlight:

6 Signal Circuits Pneumatic-Electric Slip Ring

,

G1/8" Interface Hybrid Slip Ring

,

6-8mm Applicable Trachea Combination Slip Ring

One-way Air-Operated and Six-Way Electric Combined Slip Ring
Black aluminum alloy housing, 200 RPM speed. A highly integrated pneumatic-electric hybrid slip ring featuring one pneumatic channel and six signal circuits.
Product Overview
This innovative slip ring combines pneumatic power and electrical signal transmission in a single unit. The black aluminum alloy casing provides excellent heat dissipation and mechanical protection, while AWG26# Teflon wiring ensures stable signal transmission. Designed for 220V operating voltage and 200RPM operation, it offers a reliable rotary connection solution for equipment requiring simultaneous pneumatic and electrical transmission.
Key Features
  • Synchronous Pneumatic-Electric Transmission: Integrated 1 pneumatic circuit and 6 signal circuits
  • Superior Materials: Aluminum alloy casing with AWG 26# Teflon wiring
  • Industrial-Grade Performance: 200 RPM speed with 220V operating voltage
  • Compact Design: Hybrid pneumatic-electric function in minimal space
Technical Parameters
Electrical Parameters Gas Parameters
Dielectric strength: 200VCA@50Hz,60s Number of trachea: 1 in 1 out
Insulation resistance: ≥100MΩ/200VDC Pressure: -99KPa-0.8MPa or vacuum
Dynamic resistance change value: ＜10mΩ Rotational torque: <0.3N.m
Rated voltage: 0～220VDC/VAC Rotation speed: 200rpm
Wire Specifications: Teflon wire (current-dependent) Shell material: Aluminum Alloy
Wire length: Default 300mm (Customizable) Temperature: -30℃～+80℃
Contact material: Precious metal contacts Operating humidity: 0～85%RH
Protection level: IP51
Technical Drawings
Pneumatic-Electric Slip Ring with 6 Signal Circuits and G1/8" Interface for 6-8mm Applicable Trachea 0
Application Scenarios
  • Automated assembly equipment: Power supply for pneumatic grippers and sensors on rotary worktables
  • Industrial robots: Hybrid pneumatic-electric transmission for robot end effectors
  • Packaging machinery: Pneumatic control and electrical testing for rotary workstations
  • Testing equipment: Pneumatic actuation and signal acquisition for rotary testing tables
Frequently Asked Questions
Q: What is the maximum operating pressure supported by the air passage?
A: The air passage uses industrial standard design. Please consult our technical support for specific maximum operating pressure details.
Q: Does the 6-channel circuit support high current transmission?
A: The standard version focuses on signal transmission. High current versions are available as customized solutions.
Q: Does the product support higher speed operation?
A: The standard version is optimized for 200 RPM. Higher speed designs are available as custom solutions.
